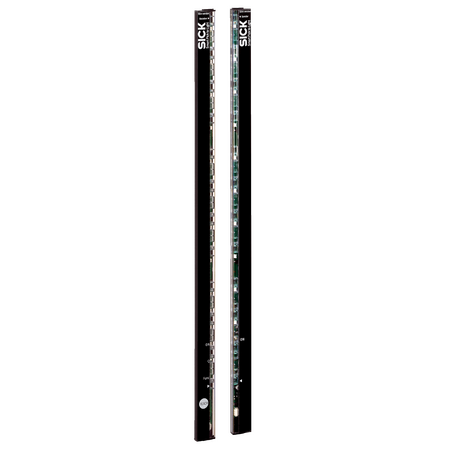

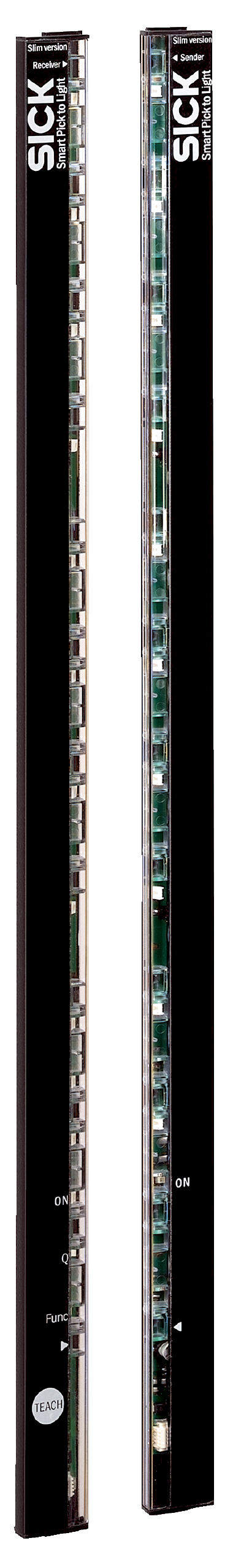

SPL-S120PPS1W04 | Automation light grids
The SICK SPL-S120PPS1W04 automation light grid sensor features 4 parallel infrared beams for reliable object detection and safety applications in industrial automation environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SPL-S120PPS1W04 | Automation light grids
Brand: SICK
SKU: 1046127
Alternatively Known As: Automation light grid, Safety light curtain, Light beam sensor, Object detection sensor
Technical Specifications
- Sensor principle: Sender/receiver
- Minimum detectable object: Parallel beam, 45 mm
- Beam separation: 40 mm
- Number of beams: 4
- Detection height: 120 mm
- Light source: Infrared light, wavelength 950 nm
- Supply voltage: DC 24 V ± 20%
- Power consumption receiver: ≤ 50 mA
- Output current max: ≤ 100 mA
- Switching output: PNP
- Initialization time: 1 s
- Connection type: Cable with M8 male connector, 4-pin
- Housing material: PMMA
- Enclosure rating: IP65
- Protection class: III
- Response time: Parallel beam, 19 ms
- Operating range: 1.5 m
- Maximum range: 3 m
- Shock resistance: 10 g / 16 ms
- Vibration resistance: 5 g, 10 Hz to 55 Hz
- EMC: EN 60947-5-2
- Ambient operating temperature: -25 °C to +55 °C
- Dimensions (H x L x W): 192mm x 8mm x 25mm
- Weight: 0.1 kg
Key Features
- Sender/receiver sensor principle with infrared light source
- 4 parallel beams with 40 mm beam separation and 120 mm detection height
- Automatic teach function active for easy setup
- PNP switching output with output 1 active when light beam is interrupted
- IP65 rated housing made of PMMA for robust protection
- Cable with M8 male connector, 4-pin for connection
- Shock resistance of 10 g and vibration resistance of 5 g
- Operating temperature range from -25 °C to +55 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor systems to ensure proper alignment and safety compliance.
Applications
- Industrial automation for object detection and safety
- Machine guarding and perimeter protection
- Conveyor and packaging line monitoring
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with ≤ 50 mA receiver power usage
- Durable IP65 rated housing reduces waste by extending product life
- Complies with China RoHS for restricted hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK SPL-S120PPS1W04 automation light grid sensor is available for immediate purchase, ideal for industrial automation and safety applications.
