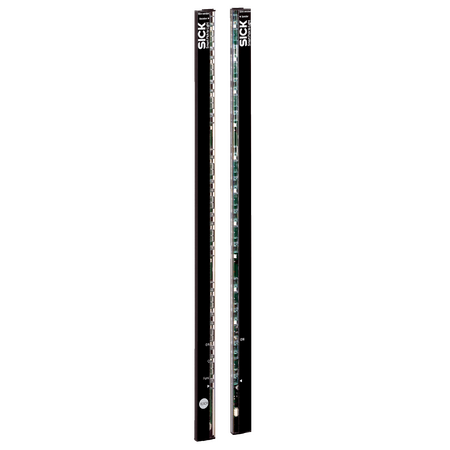

SPL-S280PTC1W04 | Automation light grids

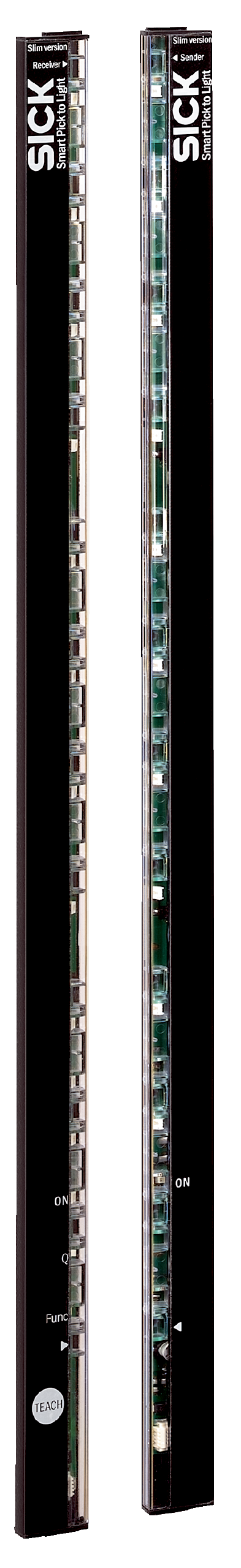

The SICK SPL-S280PTC1W04 automation light grid features 8 parallel infrared beams for reliable object detection and safety applications in industrial automation environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SPL-S280PTC1W04 | Automation light grids
Brand: SICK
SKU: 1213545
Alternatively Known As: Automation light curtain, Safety light grid, Industrial light barrier, Object detection light grid
Technical Specifications
- Sensor principle: Sender/receiver
- Minimum detectable object: 45 mm
- Beam separation: 40 mm
- Number of beams: 8
- Detection height: 280 mm
- Light source: Infrared light at 950 nm wavelength
- Supply voltage: DC 24 V ± 20%
- Power consumption receiver: ≤ 50 mA
- Output current max: ≤ 100 mA
- Switching output: PNP
- Initialization time: 1 second
- Connection type: Cable with M12 male connector, 4-pin
- Housing material: PMMA
- Enclosure rating: IP65
- Shock resistance: 10 g / 16 ms
- Vibration resistance: 5 g, 10 Hz to 55 Hz
- Ambient operating temperature: -25°C to +55°C
- Response time: 38 ms (parallel beam coded version)
- Dimensions (H x L x W): 352mm x 8mm x 25mm
- Weight: 0.1 kg
Key Features
- Sender/receiver sensor principle with 8 parallel beams
- Minimum detectable object size of 45 mm
- Slim optical light exit design
- Automatic teach function active
- PNP switching output with output current up to 100 mA
- IP65 rated enclosure for dust and water protection
- Shock resistance of 10 g and vibration resistance of 5 g
- Operating temperature range from -25°C to +55°C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial safety equipment and electrical connections to ensure compliance with safety standards.
Applications
- Industrial automation for object detection and safety monitoring
- Machine guarding and perimeter protection
- Conveyor and production line monitoring
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with efficient infrared light source
- Durable PMMA housing reduces need for frequent replacements
- Long operational life minimizes electronic waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK SPL-S280PTC1W04 automation light grid is available for immediate purchase, ideal for industrial automation and safety applications.
