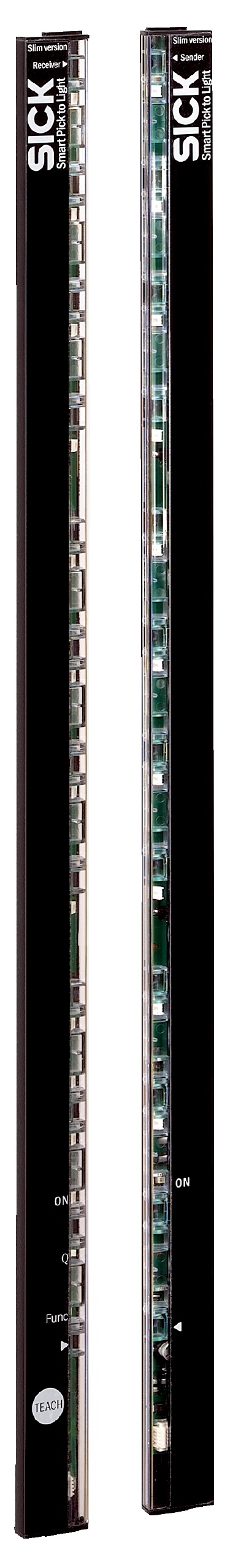

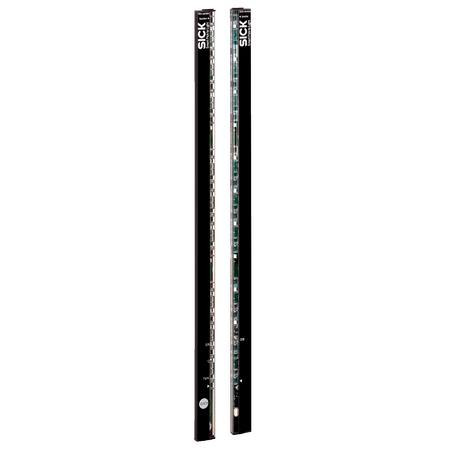

SPL-S280PTC2W04 | Automation light grids
The SICK SPL-S280PTC2W04 is a slim, reliable automation light grid sensor designed for industrial safety and object detection with 8 parallel infrared beams and robust IP65 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SPL-S280PTC2W04 | Automation light grids
Brand: SICK
SKU: 1212659
Alternatively Known As: Automation light curtain, Safety light grid, Industrial light sensor, Object detection light grid
Technical Specifications
- Sensor principle: Sender/receiver
- Minimum detectable object: 45 mm
- Number of beams: 8
- Detection height: 280 mm
- Light source: Infrared light at 950 nm wavelength
- Supply voltage: DC 24 V ± 20%
- Power consumption receiver: ≤ 50 mA
- Output current max: ≤ 100 mA
- Output load capacitive: 100 nF
- Output load inductive: 1 H
- Initialization time: 1 s
- Switching output: PNP
- Connection type: Cable with M12 male connector, 4-pin
- Housing material: PMMA
- Enclosure rating: IP65
- Shock resistance: 10 g / 16 ms
- Vibration resistance: 5 g, 10 Hz to 55 Hz
- Ambient operating temperature: -25 °C to +55 °C
- Response time: 38 ms (parallel beam coded version)
- Pulse frequency: 250 kHz
- Dimensions (H x L x W): 352.4mm x 12.4mm x 36.5mm
- Weight: 0.1 kg
Key Features
- Sender/receiver sensor principle with 8 parallel beams
- Minimum detectable object size of 45 mm
- Slim optical light exit design
- Automatic teach function active
- PNP switching output with output current up to 100 mA
- IP65 rated enclosure for dust and water protection
- Shock resistance of 10 g and vibration resistance of 5 g
- Cable with M12 male connector, 4-pin for connection
- LED indication for operational status
- Optical synchronization and aluminum stabilizer included
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper alignment, electrical connection, and compliance with safety standards.
Applications
- Industrial automation for object detection and safety light curtain applications
- Machine guarding and perimeter protection
- Material handling and packaging lines
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with efficient infrared light source
- Durable PMMA housing reduces material waste through long product life
- Robust design minimizes replacement frequency and electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK SPL-S280PTC2W04 Automation Light Grid Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
