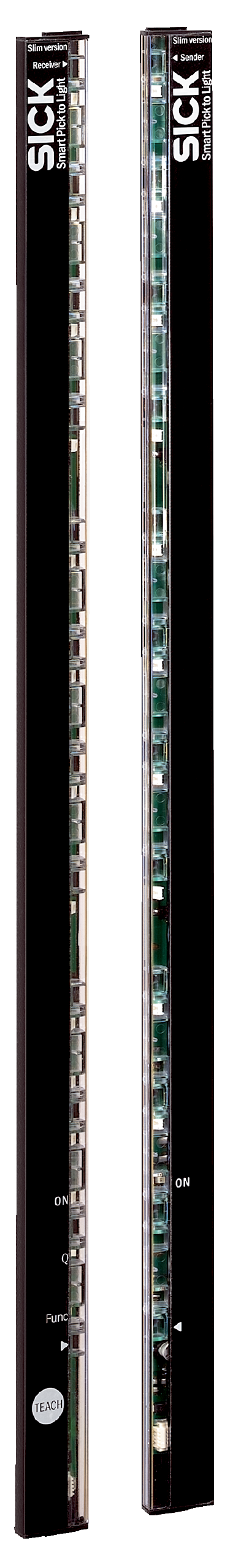

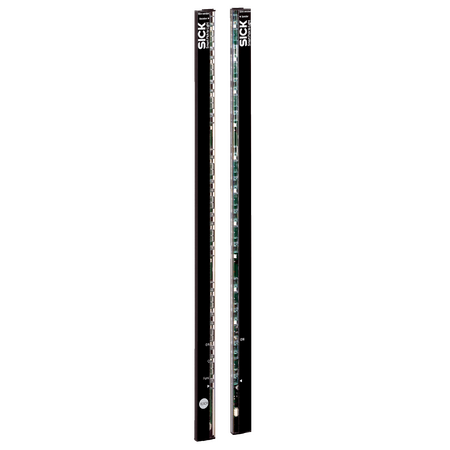

SPL-S440PPS1W04 | Automation light grids
The SICK SPL-S440PPS1W04 is a high-performance automation light grid sensor featuring 12 parallel infrared beams, designed for industrial safety and object detection with robust IP65 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SPL-S440PPS1W04 | Automation light grids
Brand: SICK
SKU: 1046312
Alternatively Known As: Automation light grid, Safety light curtain, Industrial light barrier, Presence detection sensor
Technical Specifications
- Sensor principle: Sender/receiver
- Number of beams: 12 parallel beams
- Minimum detectable object: 45 mm
- Beam separation: 40 mm
- Detection height: 440 mm
- Light source: Infrared light at 950 nm wavelength
- Supply voltage: DC 24 V ± 20%
- Power consumption receiver: ≤ 50 mA
- Output current max: ≤ 100 mA
- Switching output: PNP
- Initialization time: 1 second
- Connection type: Cable with M8 male connector, 4-pin
- Housing material: PMMA
- Enclosure rating: IP65
- Protection class: III
- Response time: 19 ms
- Operating range: 1.5 m
- Shock resistance: 10 g / 16 ms
- Vibration resistance: 5 g, 10 Hz to 55 Hz
- Ambient operating temperature: -25°C to +55°C
- Dimensions (H x L x W): 512mm x 8mm x 25mm
- Weight: 0.1 kg
Key Features
- Sender/receiver sensor principle with 12 parallel beams
- Minimum detectable object size of 45 mm
- Slim optical light exit design
- Detection height of 440 mm
- Automatic teach function active
- PNP switching output with output current up to 100 mA
- IP65 rated enclosure for dust and water protection
- Reverse polarity and short-circuit protected outputs
- Operating temperature range from -25°C to +55°C
- Shock resistance of 10 g and vibration resistance of 5 g
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial safety sensor systems to ensure proper alignment and compliance with safety standards.
Applications
- Industrial automation safety light grid applications
- Machine safeguarding and perimeter protection
- Object detection in manufacturing and processing lines
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with efficient infrared light source
- Durable PMMA housing reduces material waste through long product life
- Robust design minimizes replacement frequency and electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK SPL-S440PPS1W04 Automation Light Grid is available for immediate purchase, ideal for industrial automation and safety applications.
