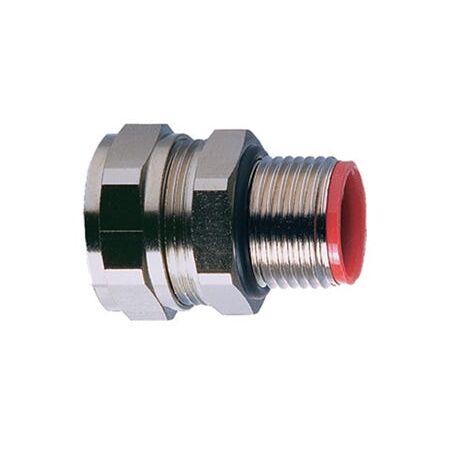

SPL Straight Fixed M16 IP66 IP67 IP68 Nickel-Plated Brass Cabac
Fixed external male thread fitting designed for sealed conduit connections requiring M16 thread compatibility in industrial environments. Nickel-plated brass construction with co-polyester seal and nylon inserts provides high UV resistance and dependable ingress protection performance. Supports IP66, IP67, IP68 and IP69 protection ratings with a temperature range of -65°C to +150°C static and -45°C to +150°C moving applications. Technical ratings, compliance details, and installation requirements are listed further down the page.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Material: Nickel-plated brass with co-polyester seal and nylon inserts
- Ingress Protection: IP66, IP67, IP68 (10 bar, 30 mins), IP69
- Temperature Range: Static (-65°C to +150°C), Moving (-45°C to +150°C)
- Thread Type: Fixed external male thread M16
- UV Resistance: Very high for outdoor applications
- Standards Compliance: CE marking, BSI Kitemark KM35161, UL514B, AS/NZS 2053.1:2001, AS/NZS 2053.8:1995
- Dimensions (H x L x W): 20mm x 40mm x 20mm
- Weight: 0.1 kg
Key Features
- Straight fitting design with fixed external male thread
- High impact resistance for durability
- Very high UV resistance for outdoor applications
- Suitable for conduit types SPL, SPL-EF, SPLHC, & SPUL
- Made of nickel-plated brass with co-polyester seal and nylon inserts
- Wide temperature range: static applications (-65°C to +150°C) and moving applications (-45°C to +150°C)
- Self-extinguishing and halogen-free for enhanced fire safety
Professional Installation Requirements
- Installation by a qualified professional is recommended to ensure proper sealing and compliance with safety standards.
Applications
- Industry Processing: Food and beverage, chemical, feed, wood
- Automation, machines & panel building
- Utility: Power
- Mining equipment
- Marine & Shipping
Standards & Compliance
- AS/NZS 2053.1:2001
- AS/NZS 2053.8:1995
Environmental Benefits
- Self-extinguishing and halogen-free materials enhance fire safety and reduce toxic emissions
- Durable construction reduces replacement frequency and waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The Cabac Adaptaflex SPL Straight Fixed External Thread Fitting M16 NC12 is available for immediate purchase, ideal for industrial, utility, and marine conduit applications.
FAQ
Q: What ingress protection ratings does this fitting provide?
A: The fitting is rated to IP66, IP67, IP68 (10 bar, 30 minutes), and IP69 for demanding sealed conduit applications.
Q: What conduit systems is this fitting compatible with?
A: The fitting is suitable for conduit types SPL, SPL-EF, SPLHC, and SPUL as specified in the product specifications.
Pair this fitting with an SPL conduit coupler 25mm when sealed conduit systems require secure in-line connections.
A straight conduit fitting M16 swivel nickel-plated brass option can be specified where conduit movement or alignment flexibility is required.
Install alongside a smooth entry bush fitting SP32 to protect cable entries in enclosed conduit assemblies.
Engineers working with sealed conduit systems can reference the conduit fittings Australia guide for fitting selection and installation considerations.
