Trade Discount 25%

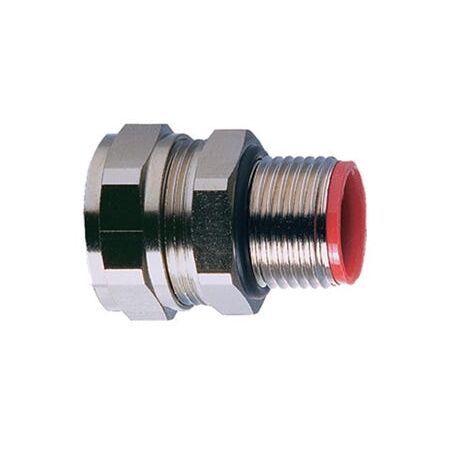

SPL Straight Fixed M25 IP66 IP67 IP68 Nickel-Plated Brass Cabac
Fixed external male thread fitting designed for M25 conduit terminations requiring secure sealing performance in industrial environments. Nickel-plated brass construction with co-polyester seal and nylon inserts provides very high UV resistance and dependable long-term durability in outdoor applications. Supports IP66, IP67, IP68 and IP69 ingress protection with operating temperatures from -65°C to +150°C static applications and -45°C to +150°C moving applications. Technical ratings, compliance information, and installation requirements are covered further down the page.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Material: Nickel-plated brass with co-polyester seal and nylon inserts
- Ingress Protection: IP66, IP67, IP68 (10 bar, 30 mins), IP69
- Temperature Range: Static (-65°C to +150°C), Moving (-45°C to +150°C)
- UV Resistance: Very high for outdoor applications
- Thread Type: Fixed external male thread
- Conduit Compatibility: SPL, SPL-EF, SPLHC, SPUL
- Dimensions (H x L x W): 30mm x 50mm x 30mm
- Weight: 0.1 kg
Key Features
- Straight fitting design with fixed external male thread
- High impact resistance for durability
- Very high UV resistance for outdoor applications
- Suitable for conduit types SPL, SPL-EF, SPLHC, & SPUL
- Made of nickel-plated brass with co-polyester seal and nylon inserts
- Wide temperature range: static applications (-65°C to +150°C) and moving applications (-45°C to +150°C)
- Self-extinguishing and halogen-free for enhanced fire safety
Professional Installation Requirements
- Installation by a qualified professional is recommended to ensure proper sealing and compliance with safety standards.
Applications
- Industry Processing: Food and beverage, chemical, feed, wood
- Automation, machines & panel building
- Utility: Power
- Mining equipment
- Marine & Shipping
Standards & Compliance
- AS/NZS 2053.1:2001
- AS/NZS 2053.8:1995
Environmental Benefits
- Self-extinguishing and halogen-free materials enhance fire safety and reduce toxic emissions.
- Durable construction reduces need for frequent replacements, minimizing waste.
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
The Cabac Adaptaflex SPL Straight Fixed External Thread Fitting M25 is available for immediate purchase, ideal for industrial, utility, and marine conduit applications.
FAQ
Q: What ingress protection ratings does this fitting provide?
A: The fitting provides IP66, IP67, IP68 (10 bar, 30 minutes), and IP69 ingress protection for sealed conduit installations.
Q: Which conduit types are compatible with this fitting?
A: The fitting is suitable for conduit types SPL, SPL-EF, SPLHC, and SPUL as listed in the technical specifications.
Pair this fitting with an SPL conduit coupler 25mm where sealed conduit systems require secure inline conduit connections.
A straight conduit fitting M25 fixed nickel-plated brass option can be specified where matching conduit terminations are required throughout the installation.
Install alongside a smooth entry bush fitting SP32 to protect cable entries in sealed conduit assemblies exposed to harsh environments.
