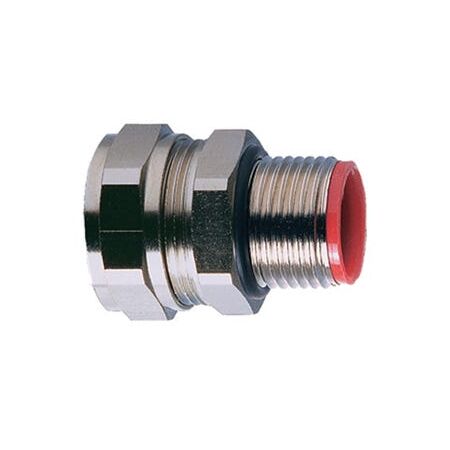

SPL Straight M16 IP66 IP67 IP68 RF10 Nickel-Plated Brass Cabac
Straight external thread fitting designed for M16 conduit terminations requiring secure sealing performance in industrial environments. Nickel-plated brass construction with co-polyester seal and nylon inserts delivers high impact resistance and dependable durability in demanding applications. Supports IP66, IP67, IP68 and IP69 ingress protection with operating temperatures from -65°C to +150°C static applications and -45°C to +150°C moving applications. Technical specifications, compliance details, and installation requirements are outlined further down the page.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Material: Nickel-plated brass with co-polyester seal and nylon inserts
- Ingress Protection: IP66, IP67, IP68 (10 bar, 30 mins), IP69
- Temperature Range: Static (-65°C to +150°C), Moving (-45°C to +150°C)
- Thread Type: Fixed external male thread M16
- UV Resistance: Very high for outdoor applications
- Standards Compliance: CE marking, BSI Kitemark KM35161, UL514B, AS/NZS 2053.1:2001, AS/NZS 2053.8:1995
- Dimensions (H x L x W): 30mm x 50mm x 30mm
- Weight: 0.1 kg
Key Features
- Straight fitting design with fixed external male thread
- High impact resistance for durability
- Very high UV resistance for outdoor applications
- Suitable for conduit types SPL, SPL-EF, SPLHC, & SPUL
- Made of nickel-plated brass with co-polyester seal and nylon inserts
- Wide temperature range: static applications (-65°C to +150°C) and moving applications (-45°C to +150°C)
- Self-extinguishing and halogen-free for enhanced fire safety
Professional Installation Requirements
- Installation by a qualified professional is recommended to ensure proper sealing and compliance with safety standards.
Applications
- Industry Processing: Food and beverage, chemical, feed, wood
- Automation, machines & panel building
- Utility: Power
- Mining equipment
- Marine & Shipping
Standards & Compliance
- AS/NZS 2053.1:2001
- AS/NZS 2053.8:1995
Environmental Benefits
- Self-extinguishing and halogen-free materials enhance fire safety and reduce toxic emissions
- Durable construction reduces need for frequent replacements, minimizing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The Cabac Adaptaflex SPL Straight Fixed External Thread Fitting M16 NC10 is available for immediate purchase, ideal for industrial, utility, and marine conduit applications.
FAQ
Q: What ingress protection ratings does this fitting provide?
A: The fitting provides IP66, IP67, IP68 (10 bar, 30 minutes), and IP69 ingress protection for sealed conduit installations.
Q: Which applications is this fitting suitable for?
A: The fitting is designed for industrial processing, automation, utilities, mining, marine, and machinery applications.
Pair this fitting with an SPL conduit coupler 25mm where sealed conduit systems require secure inline conduit connections.
A straight conduit fitting M16 swivel nickel-plated brass option can be specified where conduit alignment flexibility is required within enclosed systems.
Install alongside a smooth entry bush fitting SP32 to protect cable entry points in sealed conduit assemblies exposed to harsh environments.
