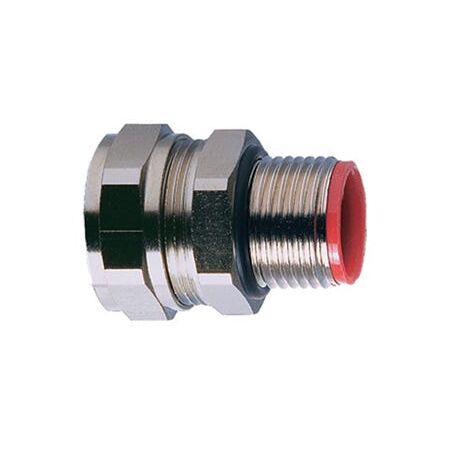

SPL Straight M16 NC20 IP66 IP67 IP68 Nickel-Plated Brass Cabac
Nickel-plated brass straight fitting with fixed external male thread M16 NC20 for industrial conduit applications. Features IP66, IP67, IP68 and IP69 ingress protection with high UV resistance for demanding outdoor installations. Built with a co-polyester seal and nylon inserts with a temperature range from -65°C to +150°C static and -45°C to +150°C moving applications. Review the full technical specifications below to confirm installation and sealing requirements.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Material: Nickel-plated brass with co-polyester seal and nylon inserts
- Ingress Protection: IP66, IP67, IP68 (10 bar, 30 mins), IP69
- Temperature Range: Static (-65°C to +150°C), Moving (-45°C to +150°C)
- Thread Type: Fixed external male thread M16 NC20
- UV Resistance: Very high for outdoor applications
- Standards Compliance: CE marking, BSI Kitemark KM35161, UL514B, AS/NZS 2053.1:2001, AS/NZS 2053.8:1995
- Dimensions (H x L x W): 30mm x 50mm x 30mm
- Weight: 0.1 kg
Key Features
- Straight fitting design with fixed external male thread
- High impact resistance for durability
- Very high UV resistance for outdoor applications
- Suitable for conduit types SPL, SPL-EF, SPLHC, & SPUL
- Made of nickel-plated brass with co-polyester seal and nylon inserts
- Wide temperature range: static applications (-65°C to +150°C) and moving applications (-45°C to +150°C)
- Self-extinguishing and halogen-free for enhanced fire safety
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper sealing and compliance with safety standards.
Applications
- Industry Processing: Food and beverage, chemical, feed, wood
- Automation, machines & panel building
- Utility: Power
- Mining equipment
- Marine & Shipping
Standards & Compliance
- AS/NZS 2053.1:2001
- AS/NZS 2053.8:1995
Environmental Benefits
- Self-extinguishing and halogen-free materials enhance fire safety and reduce toxic emissions
- Durable construction reduces need for frequent replacements, minimizing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac for specific warranty details.
Available Now
The Cabac Adaptaflex SPL Straight Fixed External Thread Fitting M16 NC20 is available for immediate purchase, ideal for industrial, utility, and marine conduit applications.
FAQ
Q: What ingress protection ratings does this fitting provide?
A: This fitting is rated IP66, IP67, IP68 (10 bar, 30 mins) and IP69 for protection against dust and water ingress.
Q: What applications is this fitting suitable for?
A: It is suitable for industry processing, automation, utility power, mining equipment, and marine and shipping installations.
Pair this fitting with a compatible SPL conduit coupler where sealed conduit joins are required.
Install alongside a straight conduit fitting for conduit termination and enclosure entry applications.
Use a sealing washer to improve environmental sealing around panel entries and threaded connections.
Proper gland selection and installation methods are covered in the conduit fittings Australia guide for commercial and industrial projects.
