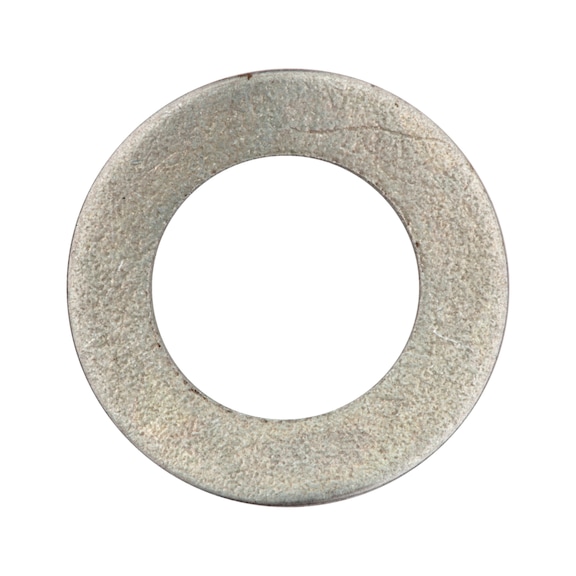

Spring Lock Washer Shape A DIN 137 | Zinc Plated | Curved Design | @Pack of 50 | by Wurth
Spring Lock Washer Shape A DIN 137 is designed for secure fastening in mechanical applications, featuring a curved design for effective locking and a durable zinc-plated finish for corrosion resistance. Ideal for automotive assembly and industrial machinery, this pack of 50 washers ensures reliable performance and longevity in various fastening needs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Spring Lock Washer Shape A DIN 137 | Zinc Plated | Curved Design | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 4345
Alternatively Known As: Spring lock washer, curved lock washer, DIN 137 washer, zinc plated lock washer
Technical Specifications
- Suitable for screw thread: M5
- Internal diameter (d1): 5.3 mm
- Outer diameter (d2): 10 mm
- Height (h1): 1.8 mm
- Thickness (s1): 0.5 mm
- Material: Spring steel
- Surface: Zinc plated
- Design: Domed
- DIN Standard: 137
- Dimensions (H x L x W): 1.8mm x 10mm x 10mm
- Weight: 0.02 kg
Key Features
- Spring-loaded fastening element providing axial spring tension
- Type A curved design for effective locking
- Made from durable spring steel
- Mechanically applied zinc coating for corrosion resistance
- Domed design enhances locking capability
Professional Installation Requirements
- Installation by a qualified technician or engineer is recommended to ensure proper fastening and safety.
Applications
- Mechanical fastening applications requiring secure locking of screws and bolts
- Automotive assembly and maintenance
- Industrial machinery and equipment fastening
- General engineering and construction fastening needs
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Zinc coating provides corrosion resistance extending product life and reducing waste
- Durable spring steel construction reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Wurth Spring Lock Washer Shape A DIN 137 is available for immediate purchase, ideal for mechanical and industrial fastening applications.
