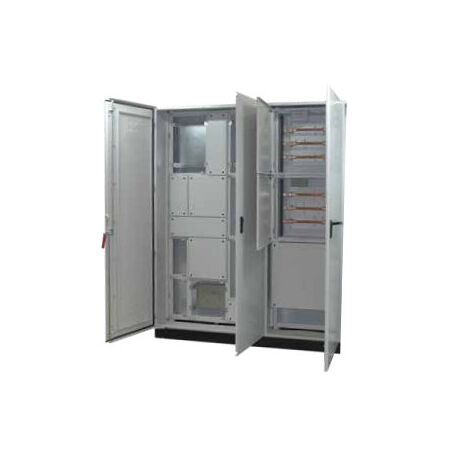

Stainless Steel Enclosure 12Hx6W | IP66 Rated | Robust Construction | N4 Finish by B&R Enclosures

SKU: TGBPRM12H06W/S
$4,138.80 List price: $5,202.10
+
Stainless steel enclosure with 12Hx6W dimensions and IP66 rating—ideal for industrial and commercial power distribution. Built for durability, with robust construction and N4 surface finish for long service life.

Product Name/Title: Primo Single door 12Hx6W Stainless Encl. IP66

Brand: B&R Enclosures

SKU: TGBPRM12H06W/S

Alternatively Known As: Infinity 3G Metering Solution, Primo Power Distribution Unit

Technical Specifications
  • Modular Height: 12
  • Modular Width: 6
  • Materials: 316 stainless steel, zinc coated steel, aluminium
  • Surface Finish: N4 surface finish
  • Manufactured from 1.6mm zinc coated steel, 2mm aluminium, and 1.5mm 316 stainless steel
  • Dimensions (H x L x W): 1270mm x 480mm x 670mm
  • Weight: 25 kg
Key Features
  • IP66 protection rating
  • Includes AS/NZS 61439 compliance documentation
  • Robust construction for long service life
  • Available in 6 or 10 module wide sizes
  • Low profile door lock with provision for authority key barrel or optional padlockable swing handle
  • Open sides for easy baying
  • Long life, 316 stainless steel hinges
  • Large 3mm aluminium gland plate
  • Rear rail for cable management according to AS/NZS 3000
  • Door stay and A4 document holder supplied as standard
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Power distribution and metering applications up to 630Amps
  • Suitable for industrial and commercial environments requiring robust metering solutions
Standards & Compliance
  • Complies with AS/NZS 61439 for power distribution equipment.
Environmental Benefits
  • Durable materials reduce the need for frequent replacements, minimizing waste.
Warranty Information

2 years warranty against manufacturing defects.

Available Now

The Infinity 3G – Primo Range is available now for immediate purchase, ideal for industrial and commercial applications.
