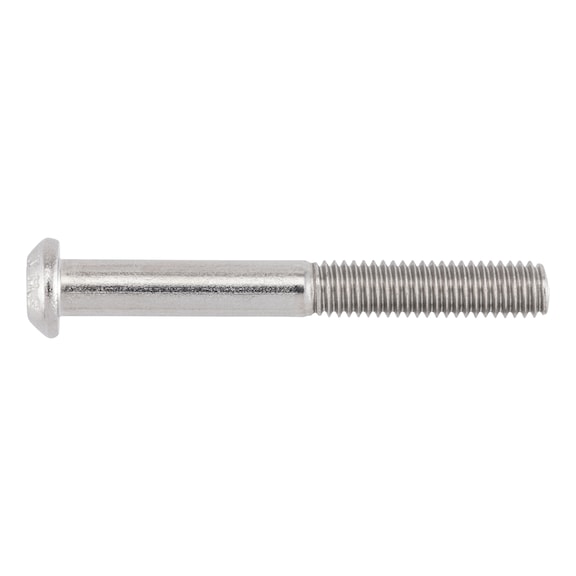

Stainless Steel Hex Socket Screw M3x30 | Button Head | Corrosion Resistant | ISO 7380-1 Compliant | @Pack of 50 | by Wurth
Stainless Steel Hex Socket Screw M3x30 is designed for secure fastening with its button head and hexagon socket drive. Ideal for general mechanical fastening and electronics assembly, this screw is made from corrosion-resistant stainless steel A4 and complies with ISO 7380-1 standards. Perfect for marine and outdoor environments, it ensures durability and reliability in precision equipment assembly.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Stainless Steel Hex Socket Screw M3x30 | Button Head | Corrosion Resistant | ISO 7380-1 Compliant | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 9901330
Alternatively Known As: Button head hex socket screw, ISO 7380-1 screw, stainless steel hex socket screw M3x30

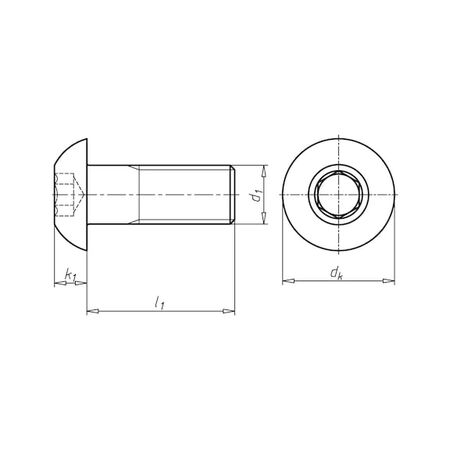

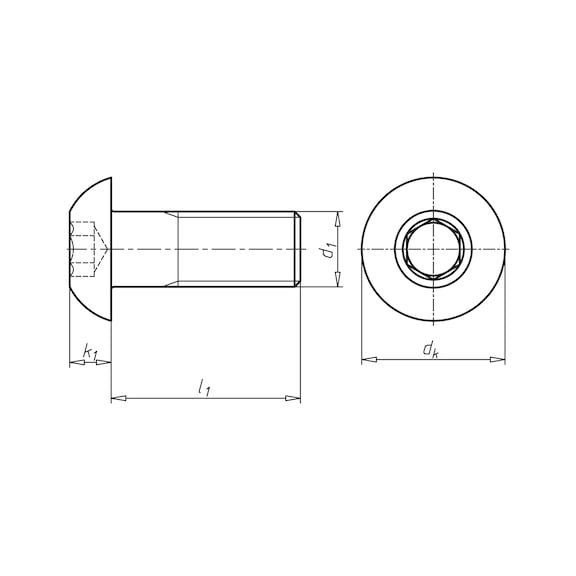

Technical Specifications
- Thread type x nominal diameter: M3
- Length: 30 mm
- Head diameter: 5.7 mm
- Head height: 1.65 mm
- Standards: ISO 7380-1
- Material: Stainless steel A4
- Property class: 070
- Surface finish: Plain
- Head type: Button head
- Drive type: Hexagon socket (HS2)
- Thread form: Standard metric thread
- Product class: A
- RoHS-compliant: Yes
- Dimensions (H x L x W): 1.65mm x 30mm x 5.7mm
- Weight: 0.005 kg
Key Features
- Button head with hexagon socket drive for secure fastening
- Made from stainless steel A4 for corrosion resistance
- Complies with ISO 7380-1 standard
- RoHS-compliant
- Limited load capacity due to head geometry as per DIN EN ISO 3506-1
Professional Installation Requirements
- Installation by a qualified technician or engineer is recommended to ensure correct torque and load application.
Applications
- General mechanical fastening
- Electronics assembly
- Corrosion-resistant fastening in marine and outdoor environments
- Precision equipment assembly requiring limited load screws
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Stainless steel material ensures long product life reducing waste
- RoHS-compliant, free from hazardous substances
Warranty Information
Warranty against manufacturing defects as per Wurth standard policy.
Available Now
Available for immediate purchase, ideal for mechanical and electrical fastening applications requiring corrosion resistance and precision.
