Stainless Steel Hexagon Socket Screw | ISO 7380-1 Compliant | Corrosion Resistant | Button Head Design | @Pack of 50 | by Wurth
Stainless Steel Hexagon Socket Screw with ISO 7380-1 compliance and corrosion-resistant A4 material—ideal for mechanical fastening in moisture-prone environments. Designed for secure fastening with a button head and hexagon socket drive, this screw is perfect for light to moderate load applications, ensuring durability and reliability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Stainless Steel Hexagon Socket Screw | ISO 7380-1 Compliant | Corrosion Resistant | Button Head Design | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 9901410
Alternatively Known As: Button Head Hex Socket Screw M4x10, Stainless Steel Hexagon Socket Screw, ISO 7380-1 Button Head Screw
Technical Specifications

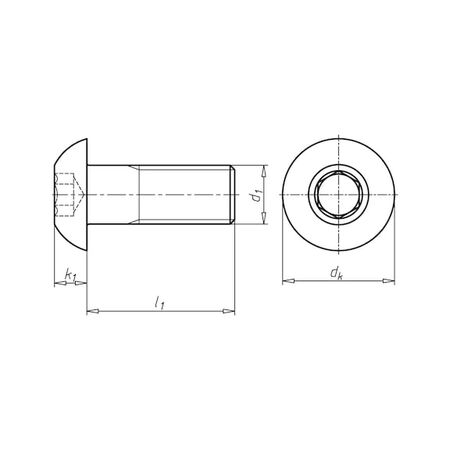

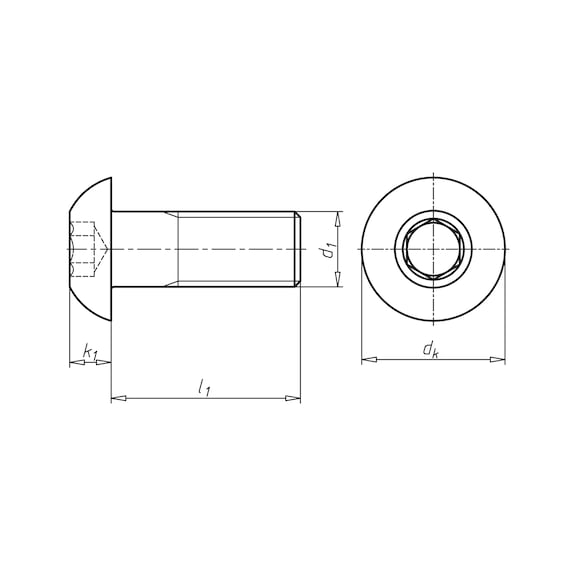

- Thread type x nominal diameter (d1): M4
- Length (l1): 10 mm
- Head diameter (dk): 7.6 mm
- Head height (k1): 2.2 mm
- Standards: ISO 7380-1
- Material: Stainless steel A4
- Property class: 070
- Surface: Plain
- Head type: Button head
- Drive type: Hexagon socket
- Internal drive: HS2.5
- Thread type: Metric thread
- Thread form: Standard metric thread
- Product class: A
- RoHS-compliant: Yes
- Dimensions (H x L x W): 2.2mm x 10mm x 7.6mm
- Weight: 0.005 kg
Key Features
- Stainless steel A4 material offers excellent corrosion resistance
- Button head with hexagon socket drive for secure fastening
- Complies with ISO 7380-1 standard
- RoHS-compliant
- Limited load capacity due to head geometry as per DIN EN ISO 3506-1
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure correct torque and load application.
Applications
- General mechanical fastening requiring corrosion resistance
- Use in environments exposed to moisture or chemicals
- Suitable for light to moderate load applications
Standards & Compliance
- Complies with AS/NZS 1170 for structural design actions
Environmental Benefits
- Corrosion resistance extends product life reducing replacement frequency
- RoHS compliance ensures reduced hazardous substances
Warranty Information
Warranty against manufacturing defects as per Wurth standard policy.
Available Now
Available for immediate purchase, ideal for mechanical fastening applications requiring corrosion resistance.
