Standard Mini Orange Condensate Pump | 12L/h Max Flow Rate | IP21 Rated | Quiet Operation | by Aspen Pumps
The Standard Mini Orange Condensate Pump is designed for efficient condensate removal in HVAC systems, featuring a maximum flow rate of 12L/h and an IP21 rating for protection against water ingress. With its quiet operation at just 21dB(A), it's perfect for residential and commercial applications, ensuring reliable performance without disturbing the environment.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Standard Mini Orange Condensate Pump | 12L/h Max Flow Rate | IP21 Rated | Quiet Operation | by Aspen Pumps
Brand: Aspen Pumps
SKU: FP2212
Alternatively Known As: Mini Orange Condensate Pump, Aspen Mini Pump, Silent+ Orange Pump
Technical Specifications
- Max flow rate: 12L/h at 0 head
- Max recommended head: 10m
- Max suction lift: 1.5m
- Noise level: 21dB(A) at 1m for Mini Orange, 19dB(A) for Silent+ Orange
- Power supply: 230 VAC, 0.11A, 16W, 50/60Hz
- Rated non-continuous operation
- Max water temperature: 40°C / 104°F
- Discharge tube: 6mm ID
- IP Protection: IP21
- Safety switch: 3.0A normally closed
- Thermal protection included
- Fully potted design
- Self-priming pump
- Dimensions (H x L x W): 80mm x 150mm x 100mm
- Weight: 0.3 kg

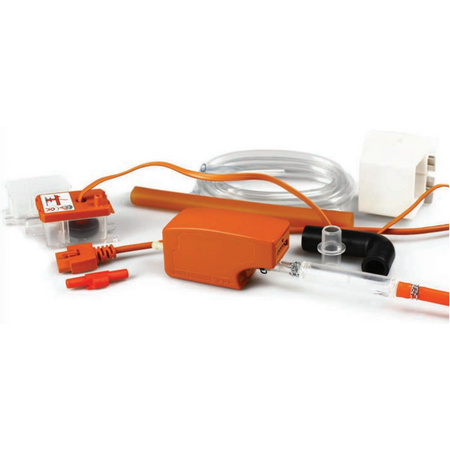

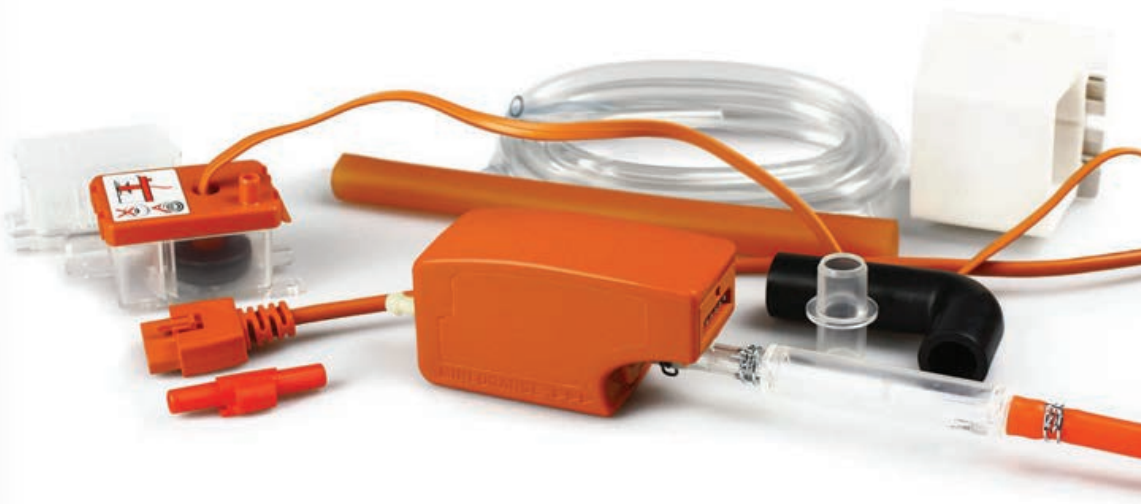

Key Features
- Quiet and reliable operation
- Submersible secondary reservoir included
- Plug & play design
- Anti-siphon device included
- Silent+ extras to reduce noise and vibration including acoustic damper, silicon tubing, and rubber bracket
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- High wall split systems
- Installation in ceiling space
Standards & Compliance
- Complies with AS/NZS 60335 for safety of electrical appliances
Environmental Benefits
- Energy efficient operation reduces power consumption
- Quiet operation minimizes noise pollution
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Aspen Standard Mini Orange Condensate Removal Pump is available now for immediate purchase. Ideal for residential and commercial HVAC applications requiring reliable condensate removal.
