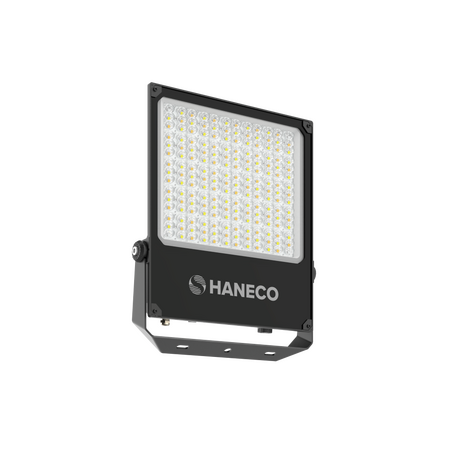

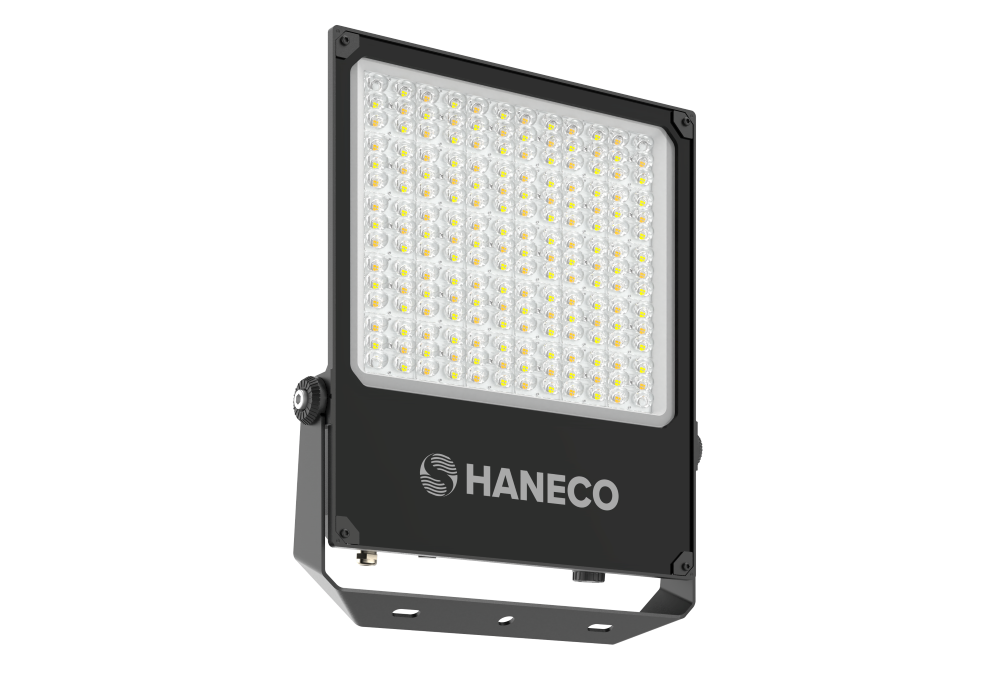

'Stax Plus LED Floodlight 200/250/300W IP66 Black Haneco'
'Haneco Stax Plus slim floodlight features selectable 200/250/300W and 3/4/5K CCT, IP66 IK08 rating and 6kV surge protection. Ideal for large area flood lighting.'
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: STAX300WPLUS, Haneco Stax Plus Asymmetric LED Floodlight, Switchable-Power LED Floodlight
Technical Specifications
- Product Code: STAX300WPLUS
- Selectable Power: 200W, 250W or 300W
- Lumen Output: 27,453–39,305 lm, depending on power and CCT setting
- Colour Temperature: Selectable 3000K, 4000K or 5000K
- Efficacy: 117–148 lm/W, depending on power and CCT setting
- Mounting Type: Surface mount
- Dimming: Non-dimmable
- Beam Angle: 70° x 140° asymmetric
- Ingress Protection: IP66
- Impact Protection: IK08
- Operating Temperature: -20°C to 45°C
- Input Voltage: 120–277V AC, 50/60Hz
- Power Factor: >0.9
- Electrical Classification: Class I
- Surge Protection: 6kV
- Connection: 1m flex without plug
- Driver: Integral
- Body Material: Diecast aluminium
- Diffuser Material: Glass
- Colour Rendering Index: >80
- Projected Lifespan: >102,000 hours at Ta45°C, L80
- Flicker-Free: No
- Dimensions (H x L x W): 487mm x 417mm x 67mm
- Weight: 7 kg
Key Features
- Selectable 200W, 250W and 300W output settings
- Selectable 3000K, 4000K and 5000K colour temperature
- Asymmetric optical distribution for controlled area illumination
- IP66-rated construction for outdoor applications
- IK08 impact-resistant housing
- 6kV surge protection
- Diecast aluminium housing with glass diffuser
- Integral driver and surface-mount bracket
- Suitable for large outdoor, industrial and recreational areas
- Five-year manufacturer warranty
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with the manufacturer's installation instructions, applicable Australian standards and local regulations. The product is supplied with a 1m flex without plug and must be connected to an appropriate 220–240V AC supply for Australian installations.
Applications
- Large-area outdoor flood lighting
- Industrial facilities and yards
- Carparks and carports
- Sheds and building surrounds
- Sports and outdoor recreation areas
- Temporary installations
- General area lighting
Standards & Compliance
- AS/NZS 60598.2.5:2018 – Luminaires, particular requirements for floodlights
Environmental Benefits
- High efficacy LED output can reduce energy consumption compared with less efficient floodlighting technologies
- Projected service life exceeding 102,000 hours can reduce replacement frequency and associated waste
- Diecast aluminium housing is recyclable at end of product life
- Selectable power levels allow light output and energy use to be matched to application requirements
Warranty Information
Five-year direct replacement warranty against manufacturing defects, as stated on the product datasheet. Warranty claims are handled through the original supplier and require proof of purchase and evidence of installation by an authorised electrician.
Available Now
Available through Haneco and authorised Australian electrical wholesalers and distributors.
