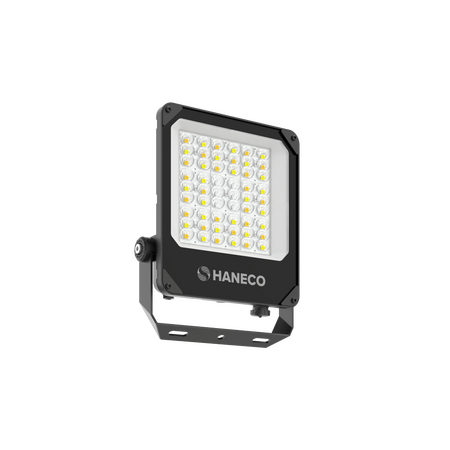

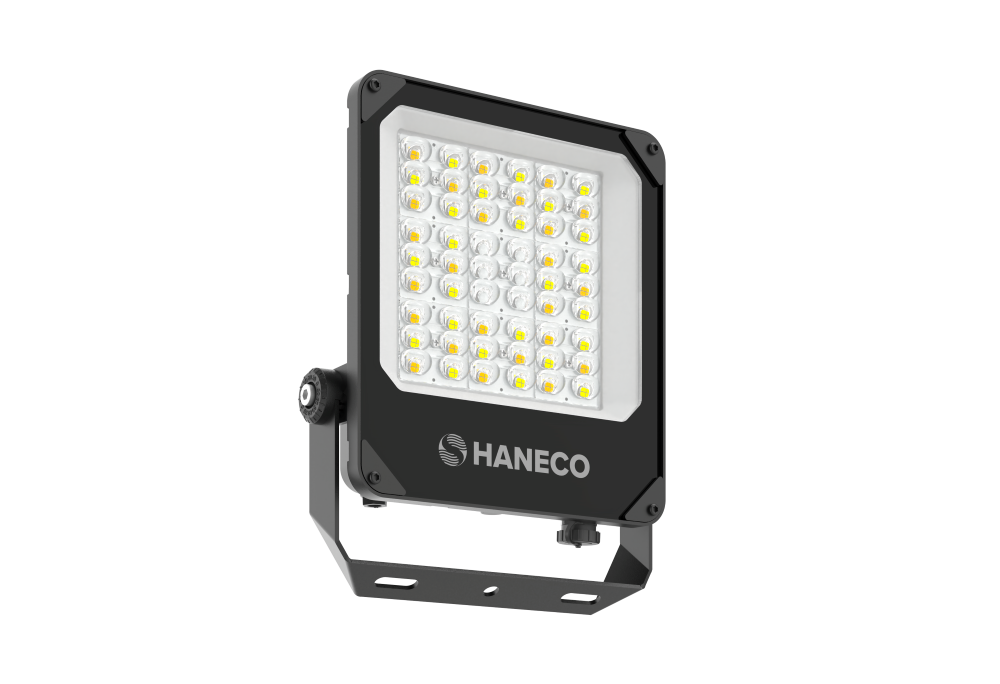

'Stax Plus LED Floodlight 30/50/70W 3000-5000K IP66 Black Haneco'
'Haneco Stax Plus slim floodlight features selectable 30/50/70W and 3/4/5K CCT, IP66 IK08 rating and 6kV surge protection. Ideal for area flood lighting.'
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Haneco STAX70WPLUS, STAX PLUS Asymmetric LED Floodlight, Selectable-Wattage LED Floodlight
Technical Specifications
- Selectable Power: 30W, 50W or 70W
- Selectable CCT: 3000K, 4000K or 5000K
- Lumen Output: 4,182–4,245 lm at 30W; 6,550–6,842 lm at 50W; 9,034–9,898 lm at 70W
- Efficacy: Up to 151 lm/W
- Beam Angle: 70° x 140° asymmetric
- Input Voltage: 120–277Vac, 50/60Hz
- Power Factor: >0.9
- Ingress Protection: IP66
- Impact Protection: IK08
- Surge Protection: 6kV
- Operating Temperature: -20°C to 45°C
- Electrical Classification: Class I
- Connection: 1m flex without plug
- Driver: Integral, non-dimmable
- Body Material: Die-cast aluminium
- Diffuser Material: Glass
- Colour Rendering: CRI >80
- Projected Lifespan: >102,000 hours at Ta 45°C, L80
- Dimensions (H x L x W): 263mm x 311mm x 57mm
- Weight: 2.64 kg
Key Features
- Selectable 30W, 50W and 70W power settings
- Selectable 3000K, 4000K and 5000K colour temperature
- Asymmetric optics for controlled area illumination and reduced light spill
- IP66 weather-resistant construction for outdoor applications
- IK08 impact-resistant housing
- Integrated 6kV surge protection
- Die-cast aluminium body with glass diffuser
- Surface-mount design with adjustable aiming bracket
- Suitable for industrial, commercial and general outdoor lighting
Professional Installation Requirements
- Installation and mains electrical connection must be performed by a licensed electrician in accordance with the manufacturer's installation instructions and applicable Australian electrical requirements, including AS/NZS 3000 where relevant.
Applications
- Area lighting
- Carparks and carports
- Sheds and building surrounds
- General industrial areas
- Outdoor recreation facilities
- Temporary installations
- Side-of-building lighting
- Sports and outdoor precinct lighting
Standards & Compliance
- AS/NZS 60598.2.5:2018 — applicable particular requirements for floodlights
- AS/NZS 60598.1 — applicable general requirements for luminaires; product-specific conformity documentation should be confirmed with the supplier
Environmental Benefits
- High efficacy LED technology can reduce energy consumption compared with less efficient floodlighting technologies
- Long projected L80 lifespan of more than 102,000 hours can reduce replacement frequency and material waste
- Die-cast aluminium housing is recyclable at end of product life
- Selectable wattage allows the fitting to be configured to the lowest suitable power level for the application
Warranty Information
5-year manufacturer warranty against manufacturing defects, as specified for the STAX PLUS model. Haneco's warranty is provided as a direct replacement subject to its terms, proof of purchase and installation by an authorised electrician.
Available Now
Available through Haneco and authorised Australian electrical distributors, subject to distributor stock.
