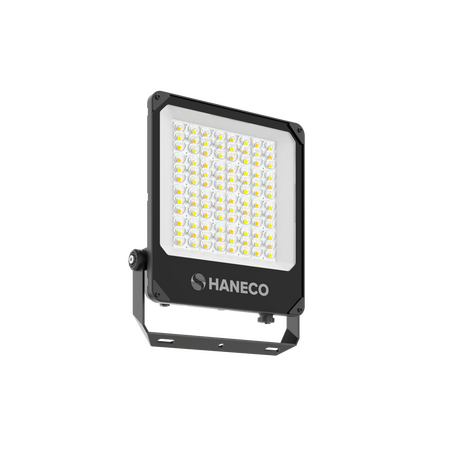

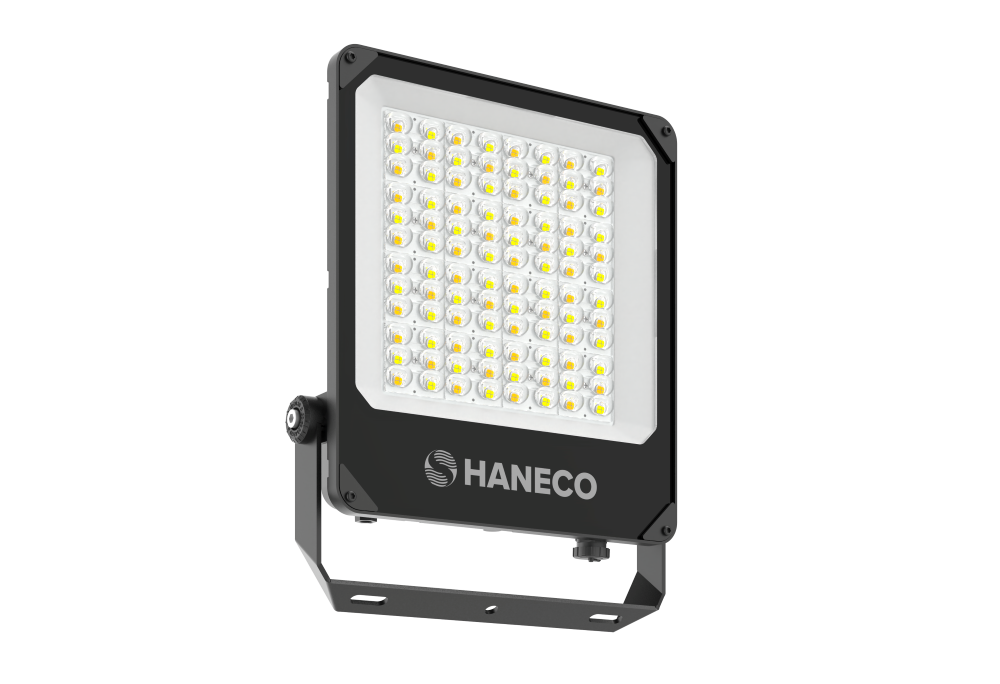

'Stax Plus LED Floodlight 80/120/150W 3000-5000K IP66 Black Haneco'
'Haneco Stax Plus slim floodlight features selectable 80/120/150W and 3/4/5K CCT, IP66 IK08 rating and 6kV surge protection. Ideal for area flood lighting.'
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Haneco STAX150WPLUS Floodlight, STAX PLUS LED Floodlight, 80/120/150W STAX PLUS Floodlight
Technical Specifications
- Product Code: STAX150WPLUS
- Selectable Power: 100W, 120W or 150W
- Lumen Output: 13,982–14,465 lm at 100W; 16,443–17,536 lm at 120W; 20,759–21,859 lm at 150W
- Selectable CCT: 3000K, 4000K or 5000K
- Efficacy: Up to 150 lm/W
- Mounting Type: Surface mount
- Dimming: Non-dimmable
- Beam Angle: Asymmetric 70° x 140°
- Colour Rendering Index: CRI >80
- Ingress Protection: IP66
- Impact Protection: IK08
- Input Voltage: 120–277 Vac, 50/60 Hz
- Power Factor: >0.9
- Electrical Classification: Class I
- Surge Protection: 6kV
- Connection: 1m flex without plug
- Driver: Integral
- Operating Temperature: -20°C to 45°C
- Body Material: Diecast aluminium
- Diffuser Material: Glass
- Projected Lifespan: More than 102,000 hours at Ta45°C, L80
- Dimensions (H x L x W): 391mm x 331mm x 57mm
- Weight: 4.37 kg
Key Features
- Selectable 100W, 120W and 150W output settings
- Selectable 3000K, 4000K and 5000K colour temperature
- Asymmetric distribution for controlled area illumination
- IP66 weather-resistant construction
- IK08 impact-resistant housing
- 6kV surge protection
- Integral driver and surface-mount bracket
- High-efficiency LED performance up to 150 lm/W
- Designed for industrial, commercial and outdoor applications
Professional Installation Requirements
- Installation must be carried out by a licensed electrician in accordance with the manufacturer's instructions, AS/NZS 3000 and applicable local regulations. The fitting must be connected to the appropriate mains supply, with the external flex and termination completed by a qualified person.
Applications
- Area flood lighting
- Industrial yards and facilities
- Carparks and carports
- Sheds and building surrounds
- Sports and outdoor recreation areas
- Temporary outdoor installations
- Side-of-building lighting
Standards & Compliance
- Relevant luminaire safety standard: AS/NZS 60598.1:2017
- Relevant floodlight product standard: AS/NZS 60598.2.5:2018
- Electrical installation should follow AS/NZS 3000:2018
Environmental Benefits
- High-efficiency LED output can reduce energy consumption compared with conventional floodlighting technologies
- Projected L80 service life exceeding 102,000 hours can reduce replacement frequency and associated waste
- Diecast aluminium housing is durable and recyclable at end of service life
- Selectable wattage enables output to be matched to application requirements, helping avoid unnecessary energy use
Warranty Information
5-year warranty against manufacturing defects, subject to Haneco warranty terms and correct installation by a licensed electrician.
Available Now
Available through Haneco and authorised Australian electrical wholesalers and distributors.
