STE-0612W000GA3KM0 | Connectors and cables

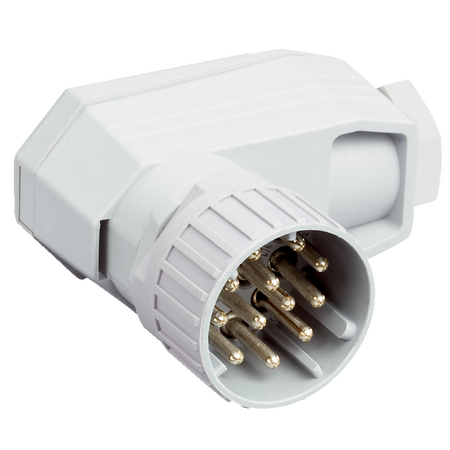

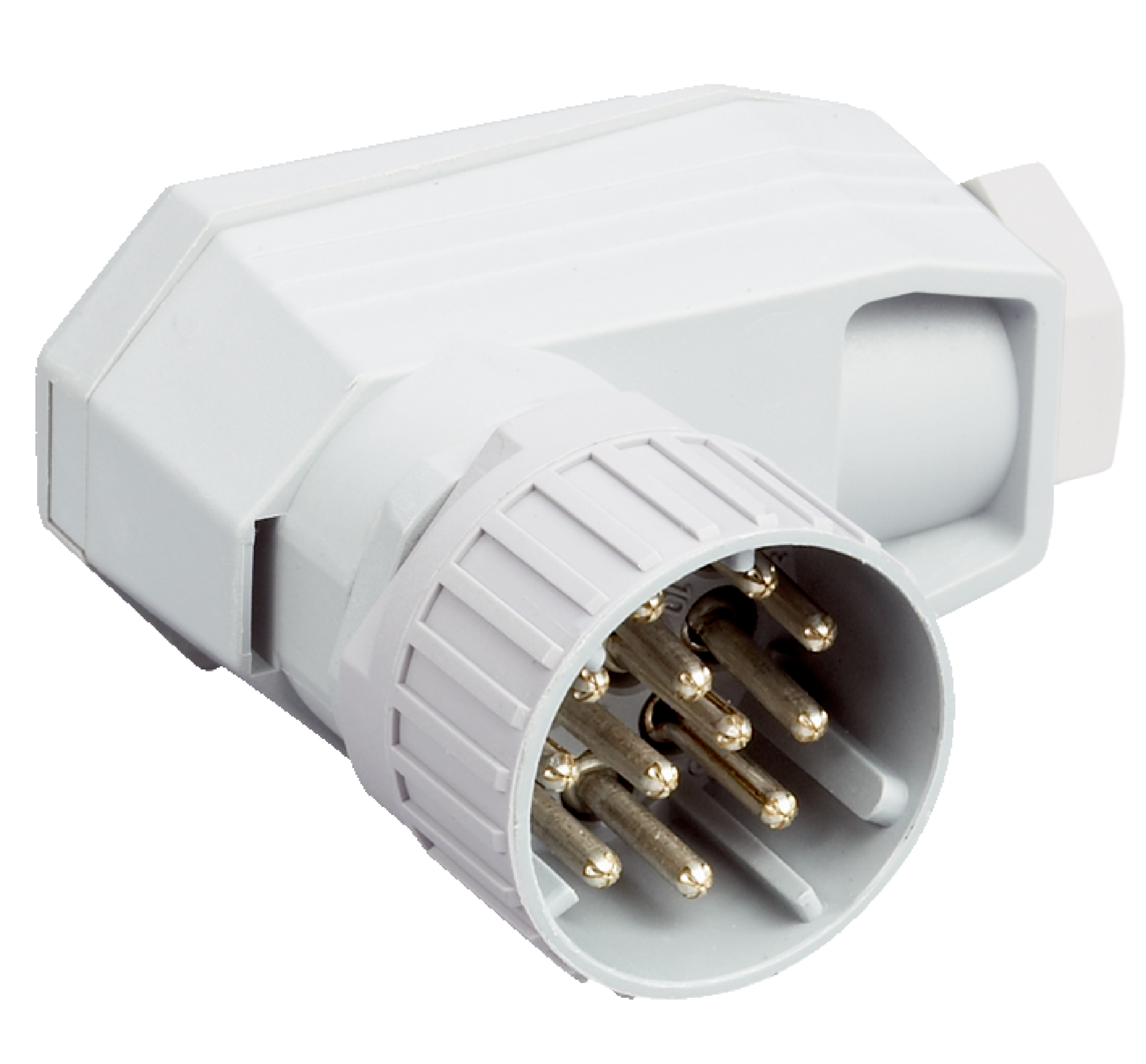

The SICK STE-0612W000GA3KM0 is a durable male 12-pin M26 angled connector with crimp contacts, designed for industrial automation applications with IP65 protection and wide temperature range.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: STE-0612W000GA3KM0 | Connectors and cables
Brand: SICK
SKU: 6021192
Alternatively Known As: M26 12-pin angled connector, SICK 12-pin male connector, Industrial crimp connector
Technical Specifications
- Connection type head A: Male connector, M26, 12-pin, angled, A-coded
- Connection type: Crimp contacts
- Connector material: PBT
- Connector color: Gray
- Shielding: Unshielded
- Permitted cross-section: 0.5 mm² to 1.5 mm²
- Reference voltage: ≤ 50 V AC, ≤ 60 V DC
- Rated impulse voltage: 1.5 kV
- Current loading: 5 A
- Enclosure rating: IP65
- Operating temperature head: -40 °C to +90 °C
- Includes 12 crimping contacts
- Dimensions (H x L x W): 30mm x 50mm x 30mm
- Weight: 0.1 kg
Key Features
- Male connector, M26, 12-pin, angled, A-coded
- Crimp contacts included (12 pieces)
- Connector material: PBT with gray color
- Unshielded design
- IP65 rated enclosure for dust and water protection
- Operating temperature range from -40 °C to +90 °C
- Current loading capacity of 5 A
- Rated impulse voltage of 1.5 kV
- Permitted cross-section from 0.5 mm² to 1.5 mm²
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Industrial automation and control systems
- Sensor and actuator connections
- Machine building and factory automation
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce replacement frequency and waste
- RoHS compliant, ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK STE-0612W000GA3KM0 connector is available for immediate purchase, ideal for industrial automation and control system applications.
