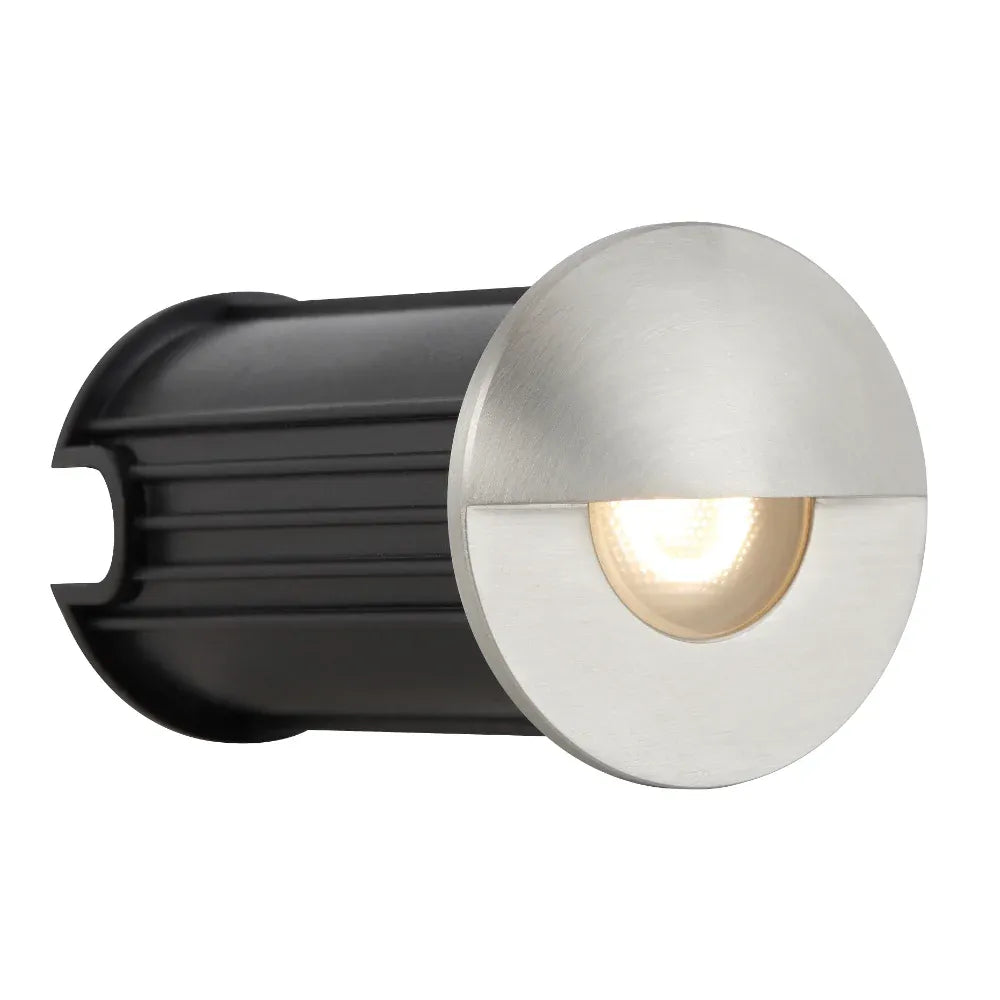

Step Light LED 1W 24V 3000K IP67 Stainless Steel Halon Telbix
Telbix Halon step light features 1W 24V LED 3000K 65lm, IP67 rating and stainless steel body with 1m cable. Ideal for stairs, decks and garden paths.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Telbix Halon Step Light, Halon LED Stair Light, Halon Inground Light, HALON ST1-SS324
Technical Specifications
- Model: HALON ST1-SS324
- Input Voltage: 24V DC
- Maximum Wattage: 1W
- Light Source: Integrated LED
- Colour Temperature: 3000K warm white
- Light Output: 65 lumens
- Colour Rendering Index: >90
- Ingress Protection: IP67
- Electrical Protection: Class III low voltage, below 54V
- Material: 316 stainless steel and glass
- Finish: Stainless steel with patina oxide finish
- Cable: 1m cable; power supply and plug not included

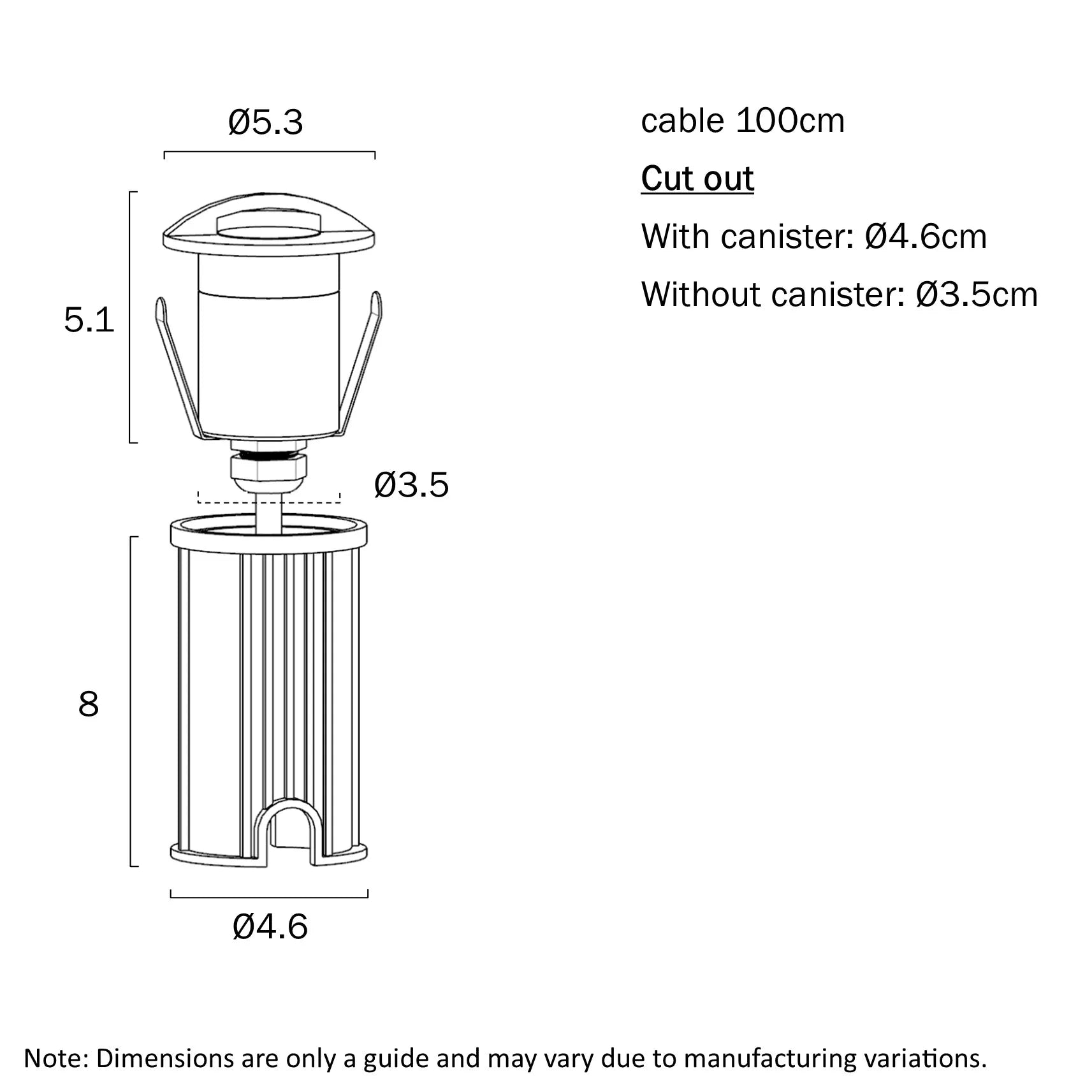

- Cut-out Diameter: 35mm without canister or 46mm with canister
- Beam Angle: 45 degrees
- Approvals: RCM
- Dimmable: No
- Dimensions (H x L x W): 51mm x 80mm x 53mm
- Weight: 0.2 kg
Key Features

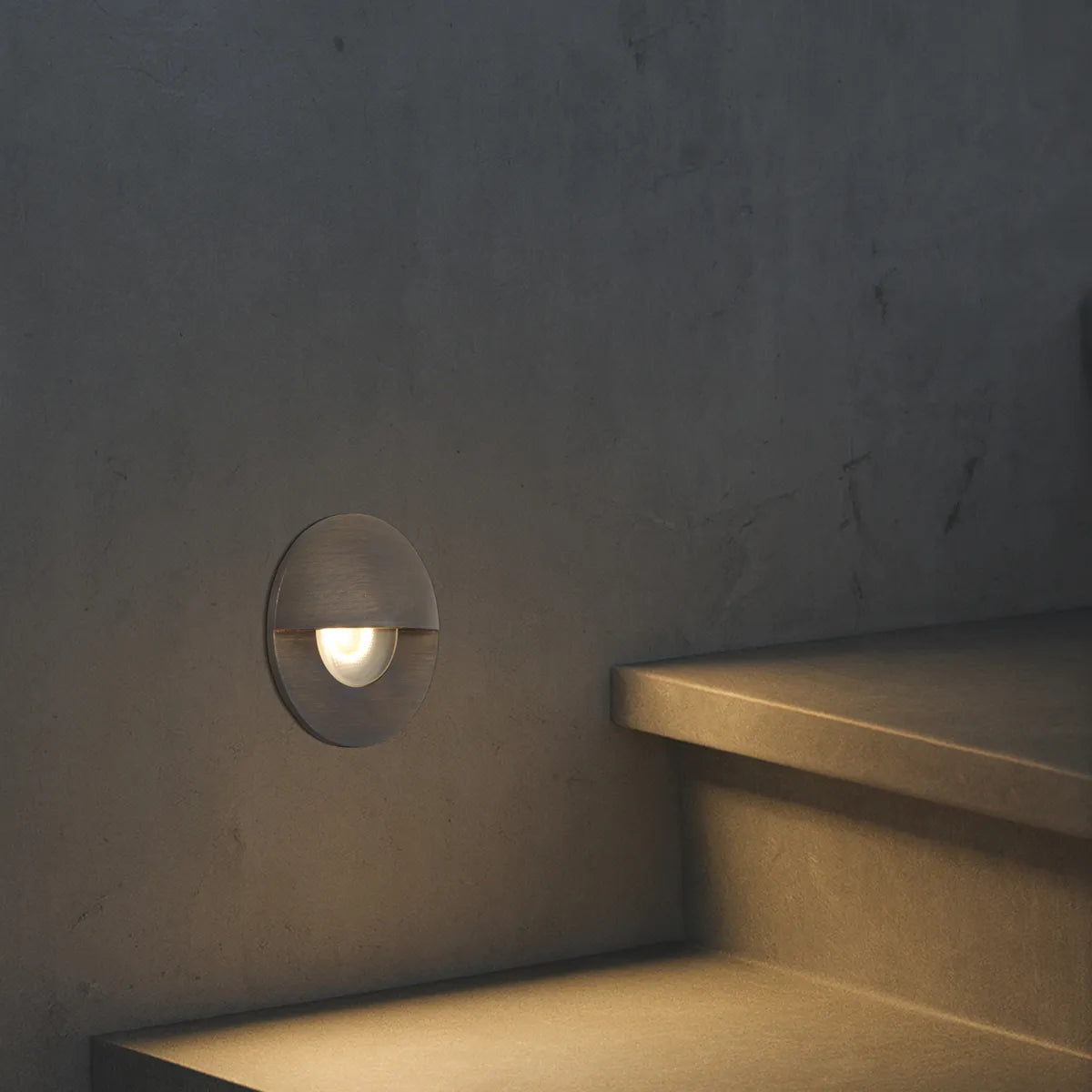

- Compact recessed design for stairs, decks, pathways and outdoor architectural lighting
- Integrated warm white LED light source
- IP67-rated construction for protection against dust and temporary water immersion
- Durable 316 stainless steel and glass construction
- Suitable for deck and concrete installations
- Low-voltage 24V DC operation
- High colour rendering with CRI above 90
- Available with optional canister installation
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000. Use a compatible 24V DC power supply and ensure the low-voltage circuit is not connected directly to mains voltage.
Applications
- Residential and commercial stair lighting
- Deck and patio lighting
- Garden paths and walkways
- Outdoor architectural accents
- Recessed concrete and masonry lighting
Standards & Compliance
- Electrical installation in accordance with AS/NZS 3000 Wiring Rules
- Telbix lighting products are designed for Australian and New Zealand safety requirements; product approval marking: RCM
Environmental Benefits
- Low 1W power consumption helps reduce operating energy use
- Integrated LED technology reduces lamp replacement frequency and associated waste
- 316 stainless steel construction offers durability and supports long service life
- Stainless steel and glass components are recyclable at end of service life
Warranty Information
3-year replacement warranty against manufacturing defects, subject to Telbix warranty conditions. Installation must be completed by a licensed electrician; labour and installation costs are generally excluded.
Available Now
Available through Telbix and authorised Australian lighting distributors.
