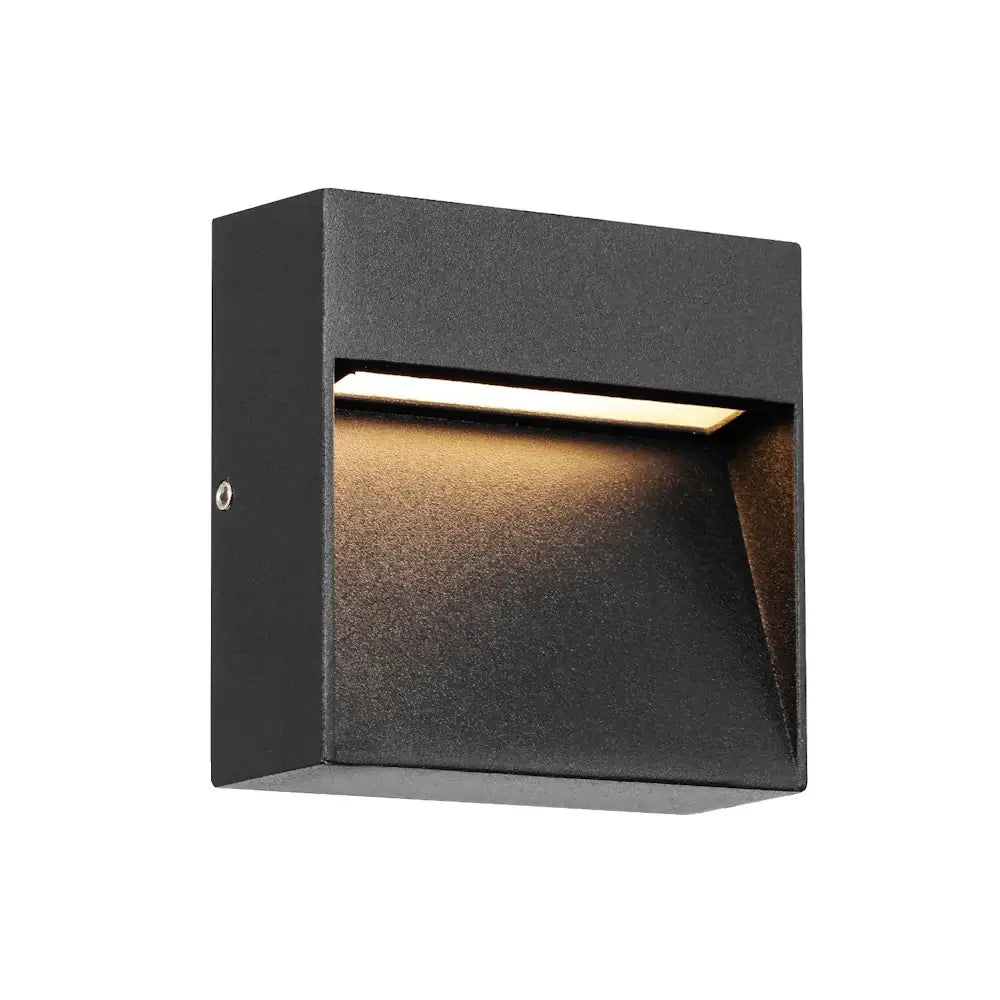

Step Light LED 3W 24V 3000K IP54 Square Black Musan Telbix

BRAND: Telbix
SKU: MUSAN SQ.24-BK
$35.90 List price: $47.90
+ −
30 Days Return Electricians Unlock Trade Access
Telbix Musan step light features 3W 24V LED 3000K 18lm, IP54 rating and compact 84mm square face in black. Ideal for stairs and deck edges.

Alternatively Known As: Musan Square Step Light, Musan Square LED Wall Light, Telbix MUSAN SQ.24-BK

Technical Specifications
  • Light Source: Integrated SMD LED
  • Power: 3W
  • Input Voltage: 24V DC
  • Colour Temperature: 3000K warm white
  • Light Output: 18 lm
  • Dimming: Non-dimmable
  • Ingress Protection: IP54
  • Electrical Class: Class III low voltage, below 54V
  • Material: Aluminium
  • Finish: Black sand
  • Approvals: RCM
  • Transformer: 24V DC power supply required; not included
  • Dimensions (H x L x W): 84mm x 84mm x 32mm
  • Weight: 0.2 kg
Key Features
  • Compact square 84mm face for discreet step and wall lighting
  • Integrated 3000K LED light source
  • Low-voltage 24V DC operation
  • IP54 protection against dust ingress and water splashing
  • Durable aluminium construction with black sand finish
  • Suitable for indoor and outdoor pathway, stair and wall applications
  • Non-dimmable design
Professional Installation Requirements
  • Installation must be performed by a qualified licensed electrician in accordance with AS/NZS 3000. A suitable 24V DC power supply or transformer is required and must be correctly selected for the installation load.
Applications
  • Residential and commercial stair risers
  • Deck edges and outdoor steps
  • Pathways, retaining walls and low garden walls
  • Indoor hallways and stairways
  • Architectural wall and pathway marker lighting
Standards & Compliance
  • Designed for Australian and New Zealand electrical safety requirements and supplied with RCM approval
  • AS/NZS 3000: Wiring Rules for electrical installation
  • AS/NZS 60598.1: General requirements and tests for luminaires
  • AS/NZS 60598.2.23: Particular requirements for extra-low-voltage lighting systems
Environmental Benefits
  • Low 3W power consumption supports reduced operating energy use
  • Integrated LED technology avoids routine lamp replacement and associated waste
  • Aluminium construction is durable and recyclable at end of service life
  • 24V Class III operation supports extra-low-voltage lighting installations
Warranty Information

Three-year replacement warranty. Telbix warranty coverage is generally limited to manufacturing defects and defects in materials or workmanship; installation must be completed by a licensed electrician. Australian Consumer Law rights also apply.

Available Now

Available through Telbix and authorised Australian lighting distributors, subject to distributor stock levels.
