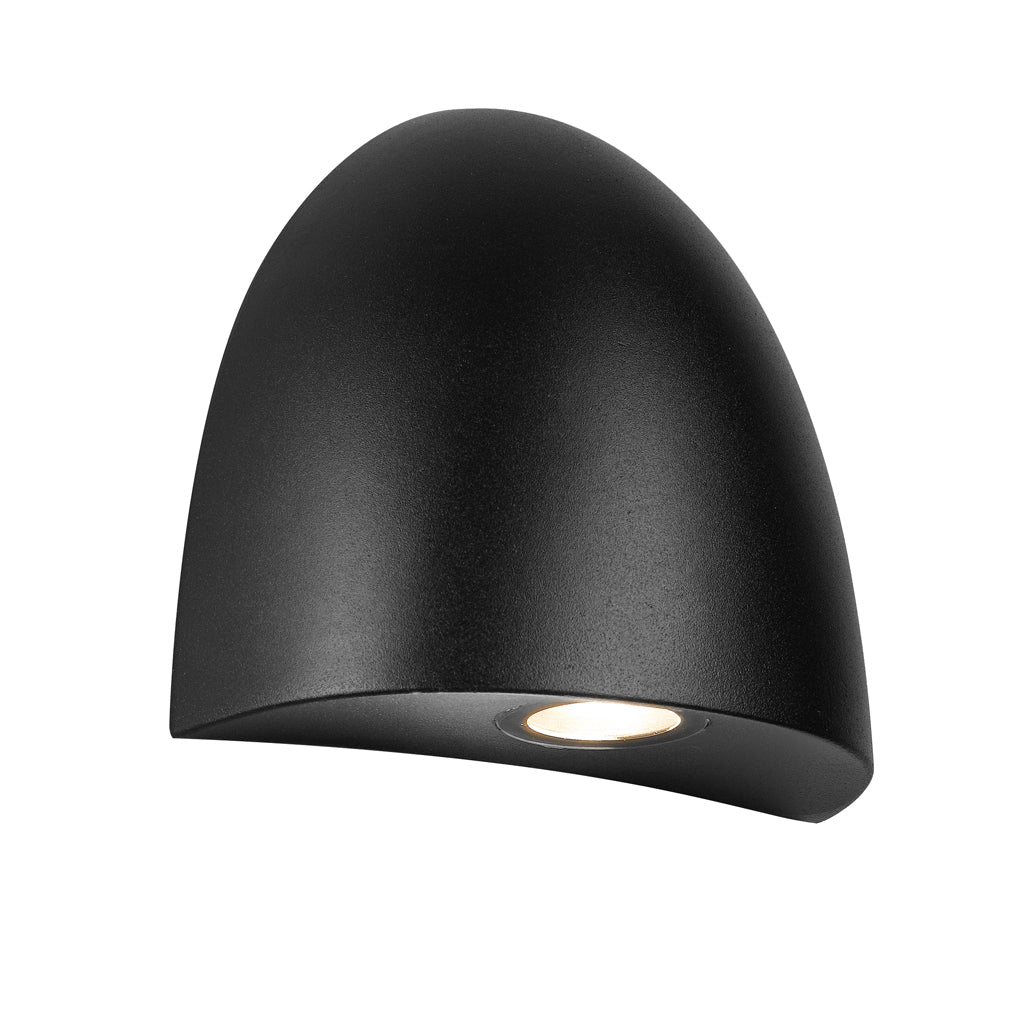

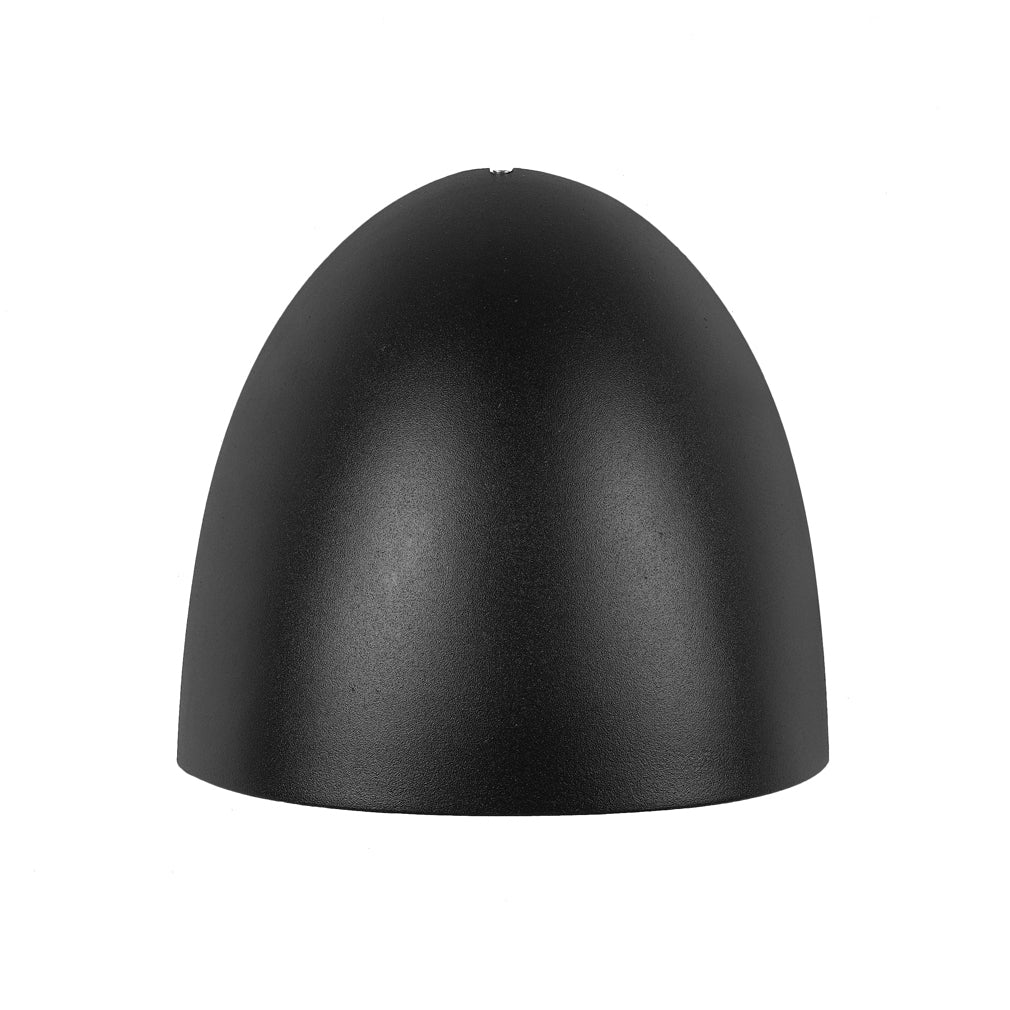

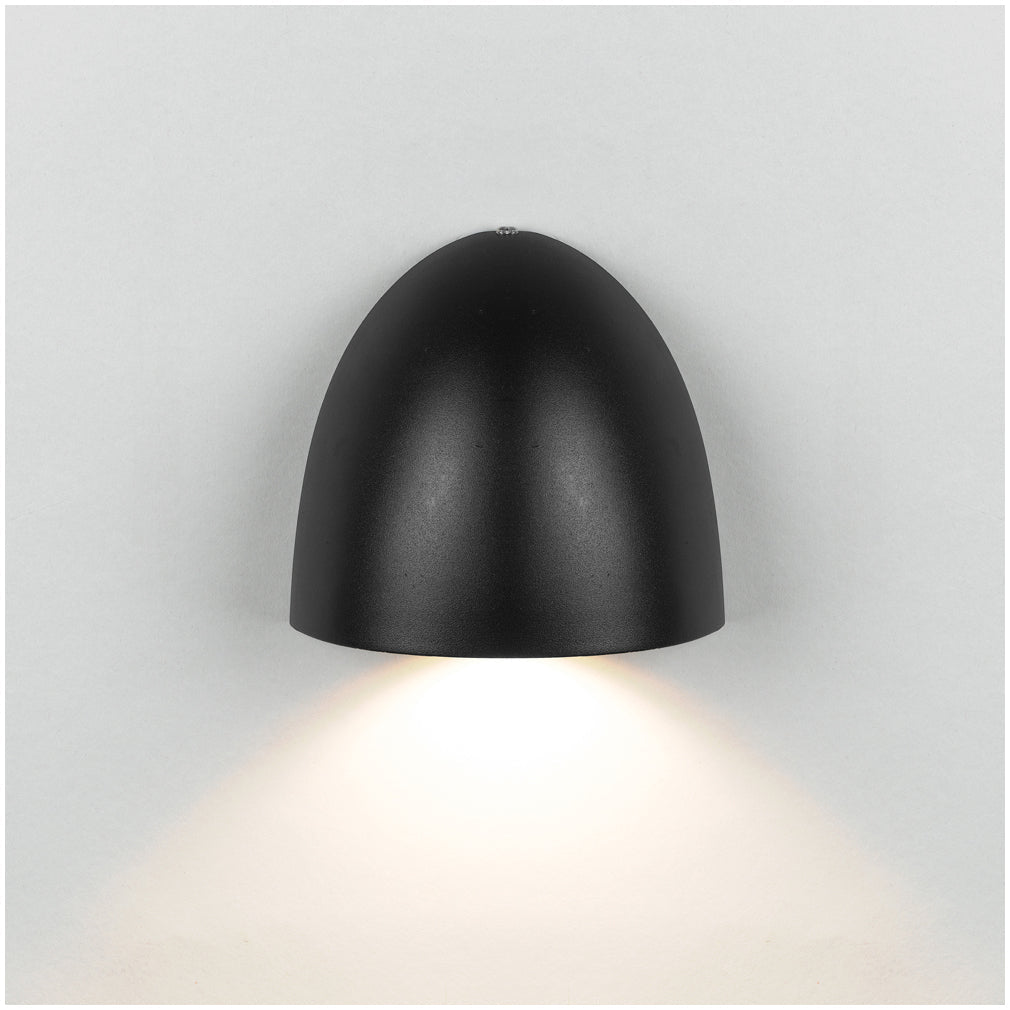

Step Light LED 3W 24V IP54 Black Sand Jora Telbix

BRAND: Telbix
SKU: JORA EX3-BK324
$77.50 List price: $103.40
+ −
30 Days Return Electricians Unlock Trade Access
Telbix Jora step light features 3W COB LED 24V DC 230lm, IP54 rating and 300mm cable in black sand. Ideal for stairs, decks and entry paths.

Alternatively Known As: Jora Exterior Step Light, Jora LED Step Wall Light, JORA EX3-BK324

Technical Specifications
  • Model: JORA EX3-BK324
  • Light Source: Integrated COB LED
  • Power: 3W
  • Input Voltage: 24V DC
  • Luminous Flux: 110 lm
  • Colour Temperature: 3000K warm white
  • Colour Rendering Index: >95
  • Ingress Protection: IP54
  • Electrical Protection: Class III extra-low voltage, below 54V
  • Dimming: Non-dimmable
  • Cable Length: 300mm
  • Cable and Plug: Cable supplied; plug not included
  • Driver: Separate compatible 24V driver required
  • Approvals: RCM
  • Dimensions (H x L x W): 100mm x 47mm x 110mm
  • Weight: 0.22 kg
Key Features
  • Compact exterior step and wall light for pathways, stairs, decks and entry areas
  • Integrated 3W COB LED with warm 3000K light
  • Low-voltage 24V DC operation
  • Black sand finish with aluminium and glass construction
  • IP54 protection for outdoor environments
  • Supplied with a 300mm cable
  • Compatible driver required and sold separately
  • High colour rendering with CRI above 95
Professional Installation Requirements
  • Installation must be performed by a qualified licensed electrician in accordance with AS/NZS 3000. A suitable 24V DC driver is required; do not connect the fitting directly to 240V mains. Waterproof connections must be used for outdoor installation.
Applications
  • Illuminating residential and commercial steps
  • Deck and stair lighting
  • Outdoor pathways and entry paths
  • Exterior wall and architectural accent lighting
  • Low-level landscape lighting
Standards & Compliance
  • Installation in accordance with AS/NZS 3000:2018 Wiring Rules
Environmental Benefits
  • LED technology provides efficient illumination compared with conventional halogen lighting
  • Low-voltage 24V DC operation can support safer and efficient outdoor lighting systems
  • Aluminium and glass components are recyclable at end of service life
  • Integrated LED construction can reduce lamp replacement and associated waste
Warranty Information

3-year replacement warranty against manufacturing defects, subject to Telbix warranty terms, correct installation by a licensed electrician and proof of purchase. Australian Consumer Law guarantees also apply.

Available Now

Available through Telbix and authorised Australian lighting distributors; stock and lead times vary by distributor.
