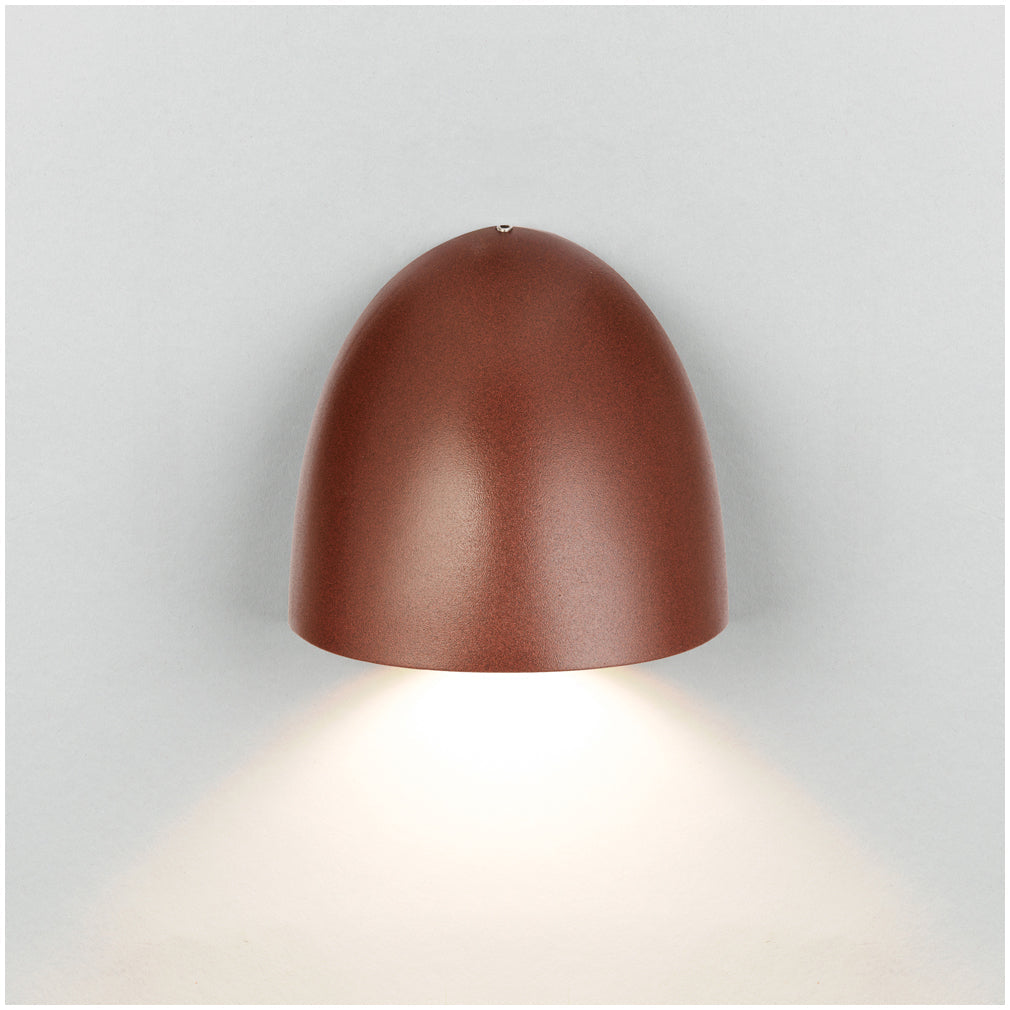

Step Light LED 3W 24V IP54 Corten Rusty Jora Telbix

BRAND: Telbix
SKU: JORA EX3-RST324
$77.50 List price: $103.40
+ −
30 Days Return Electricians Unlock Trade Access
Telbix Jora step light features 3W COB LED 24V DC 230lm, IP54 rating and 300mm cable in corten rusty finish. Ideal for stairs, decks and entry paths.

Alternatively Known As: Jora 24V Exterior Step Wall Light, Jora LED Step Light, JORA EX3-RST324

Technical Specifications
  • Light Source: Integrated COB LED
  • Total Wattage: 3W
  • Input Voltage: 24V DC
  • Light Output: 110 lm
  • Colour Temperature: 3000K warm white
  • Colour Rendering Index: >95
  • IP Rating: IP54
  • Electrical Protection: Class III extra-low voltage, below 54V
  • Dimmable: No
  • Cable Length: 300 mm
  • Material: Aluminium and glass
  • Finish: Sand-textured corten rust
  • Approvals: RCM
  • Driver: Required; 24V DC driver not included
  • Recommended Drivers: C TR060.24V IP68 or C TR200.24V IP68
  • Dimensions (H x L x W): 100mm x 47mm x 110mm
  • Weight: 0.22 kg
Key Features
  • Integrated warm-white COB LED light source
  • Low-voltage 24V DC operation
  • IP54 protection for suitable outdoor applications
  • Corten rust finish with sand-textured appearance
  • Supplied with a 300 mm cable
  • Suitable for stairs, decks, pathways and exterior walls
  • High colour rendering with CRI greater than 95
  • Compact wall-mounted design
Professional Installation Requirements
  • Installation must be completed by a qualified licensed electrician. Use a suitable 24V DC driver, do not connect directly to 240V mains, provide a waterproof cable connection and install in accordance with AS/NZS 3000.
Applications
  • Residential and commercial stair lighting
  • Deck and pathway illumination
  • Exterior entry paths and walls
  • Low-voltage landscape lighting
  • Outdoor architectural and access lighting
Standards & Compliance
  • AS/NZS 3000:2018 – electrical installation requirements for connection and installation in Australia
  • RCM approval is specified for the product
Environmental Benefits
  • Low 3W power consumption helps minimise operating energy use
  • Integrated LED design avoids regular globe replacement and associated waste
  • Aluminium and glass components are recyclable through appropriate material recovery streams
  • 24V extra-low-voltage operation can support efficient low-voltage outdoor lighting systems
Warranty Information

3-year replacement warranty. Telbix warranty coverage applies to manufacturing, material and workmanship defects; installation must be performed by a licensed electrician and labour or installation costs are generally excluded.

Available Now

Available through Telbix and authorised Australian lighting distributors; driver supplied separately.
