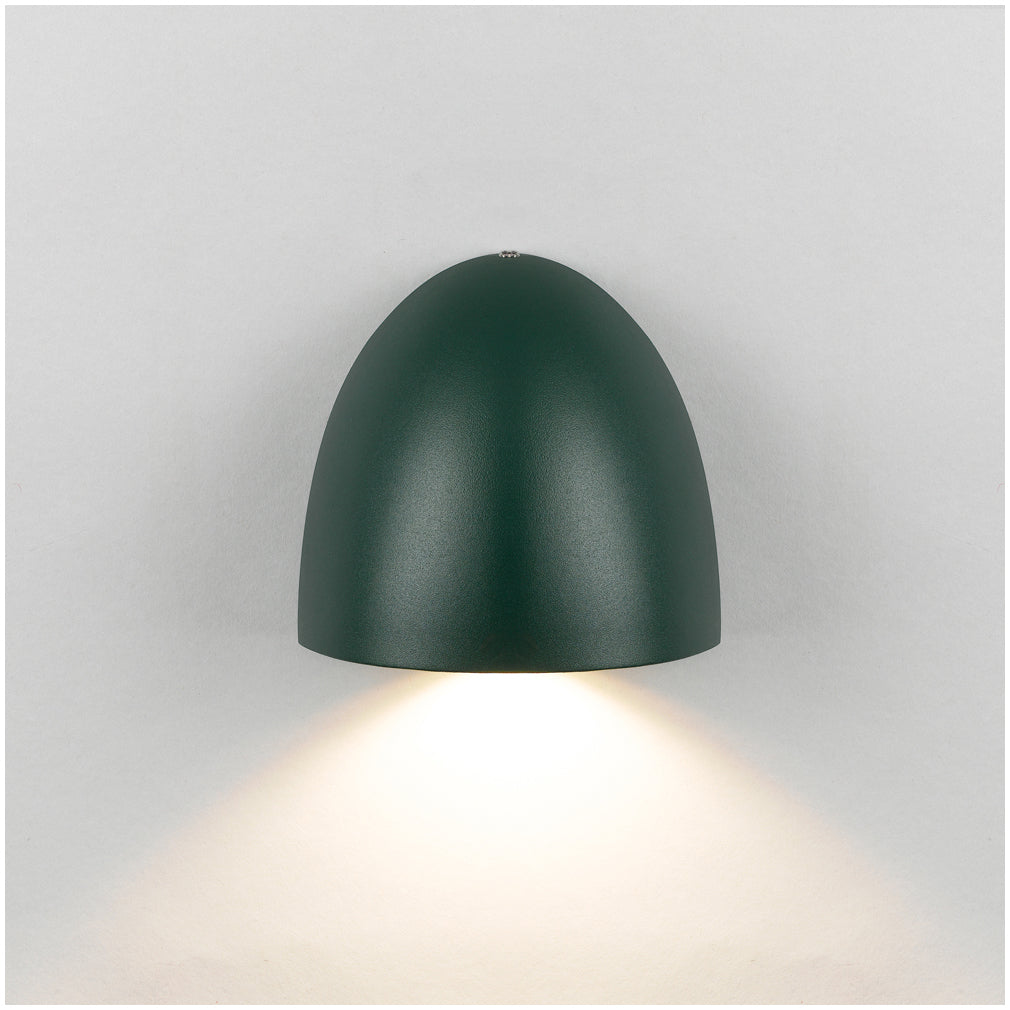

Step Light LED 3W 24V IP54 Verde Green Jora Telbix

BRAND: Telbix
SKU: JORA EX3-GN324
$77.50 List price: $103.40
+ −
30 Days Return Electricians Unlock Trade Access
Telbix Jora step light features 3W COB LED 24V DC 230lm, IP54 rating and 300mm cable in verde green. Ideal for stairs, decks and entry paths.

Alternatively Known As: Jora LED Step Light, Jora Exterior Step Wall Light, 24V LED Stair Light, Outdoor LED Pathway Light

Technical Specifications
  • Model: JORA EX3-GN324
  • Voltage: 24V DC
  • Power: 3W
  • Light Source: Integrated COB LED
  • Luminous Output: 110 lm
  • Colour Temperature: 3000K warm white
  • Dimming: Non-dimmable
  • Cable Length: 300mm
  • Ingress Protection: IP54
  • Electrical Protection: Class III low voltage
  • Material: Aluminium and glass
  • Driver: Required; compatible Telbix 24V IP68 drivers
  • Approvals: RCM
  • Dimensions (H x L x W): 100mm x 47mm x 110mm
  • Weight: 0.22 kg
Key Features
  • Verde green exterior finish
  • Integrated 3W COB LED
  • Warm white 3000K illumination
  • Low-voltage 24V DC operation
  • IP54 protection for suitable outdoor applications
  • Supplied with a 300mm cable
  • Suitable for steps, decks, entry paths and exterior walls
  • Driver required and not included
Professional Installation Requirements
  • Installation must be performed by a qualified licensed electrician in accordance with AS/NZS 3000. Use a suitable 24V DC driver and do not connect the fitting directly to 240V mains. Waterproof cable connections are required.
Applications
  • Residential and commercial stair lighting
  • Deck and patio step lighting
  • Entry paths and walkways
  • Exterior wall and pathway illumination
  • Outdoor landscaping and garden structures
Standards & Compliance
  • AS/NZS 3000:2018 for electrical installations and wiring rules
  • AS/NZS 60598.1:2017 for general luminaire safety requirements
Environmental Benefits
  • Integrated LED technology provides efficient illumination with low 3W power consumption
  • Aluminium construction is durable and recyclable
  • Low-voltage operation supports safer, efficient outdoor lighting system design
  • Long-life integrated LED construction can reduce replacement frequency and material waste
Warranty Information

3-year replacement warranty against manufacturing defects, subject to Telbix warranty terms. Installation must be completed by a qualified licensed electrician; labour and installation costs are generally excluded.

Available Now

Available through Telbix and authorised Australian lighting distributors.
