STL-1205-G10MACSCO | Connectors and cables

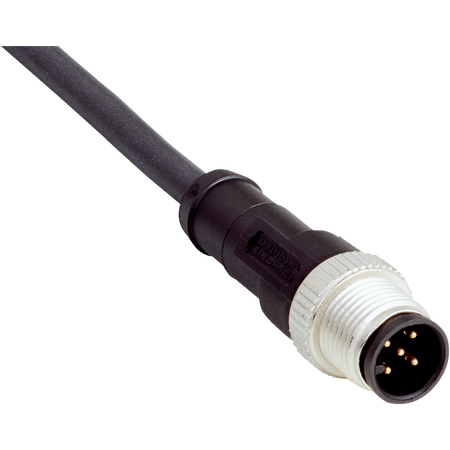

The SICK STL-1205-G10MACSCO is a durable sensor/actuator cable featuring a male M12 5-pin connector and flying leads, designed for use in harsh environments with oils and lubricants, suitable for drag chain operation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: STL-1205-G10MACSCO | Connectors and cables
Brand: SICK
SKU: 2097306
Alternatively Known As: M12 Sensor Cable, Actuator Cable M12 5-pin, SICK M12 Connector Cable, Industrial Sensor Cable
Technical Specifications
- Connection type head A: Male connector, M12, 5-pin, straight
- Connection type head B: Flying leads
- Locking plug connector: Quick screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Tightening torque: 0.4 Nm
- Cable length: 10 m
- Cable wires: 5-wire, PUR, halogen-free
- Cable diameter: 5.3 mm
- Conductor cross section: 0.34 mm²
- Shielding: Shielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Operating temperature flexible use: -25 °C to +80 °C
- Operating temperature stationary position: -40 °C to +80 °C
- Operating temperature head: -25 °C to +90 °C
- Bending cycles: ≥ 4,000,000
- Reference voltage: ≤ 60 V
- Current loading: 4 A
- Traversing speed: 3 m/s
- Travelling distance: 10 m
- Acceleration: ≤ 10 m/s²
- Signal type: Sensor/actuator cable
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Enclosure rating: IP65/IP67/IP68
- Dimensions (H x L x W): 10mm x 10000mm x 10mm
- Weight: 0.2 kg
Key Features
- Male connector, M12, 5-pin, straight
- Quick screw connection locking plug
- Shielded cable with PUR halogen-free jacket
- High bending cycles ≥ 4,000,000
- Enclosure rating IP65/IP67/IP68 for harsh environments
- Operating temperature range from -40 °C to +90 °C
- Current loading 4 A
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Zones with oils and lubricants
- Drag chain operation
- Sensor and actuator cable applications requiring robust connection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces environmental impact in case of disposal
- Durable design reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK STL-1205-G10MACSCO sensor/actuator cable is available for immediate purchase, ideal for industrial automation and sensor connection applications.
