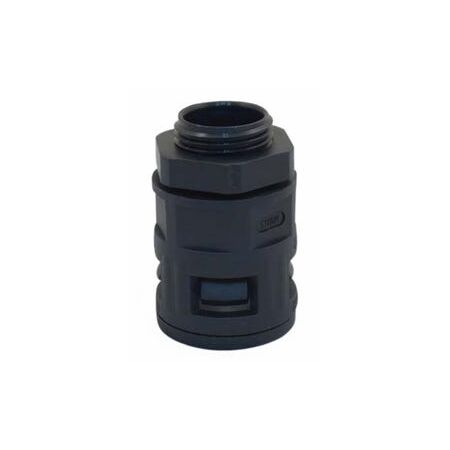

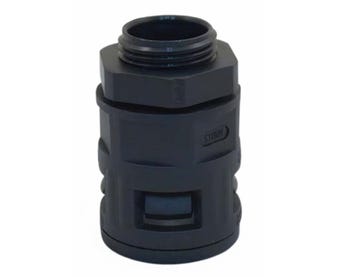

Straight Quick Connector 20MM M20 | IP66 Rated | Tool-Free Installation | UV Resistant by Cabac
The Cabac Straight Quick Connector 20MM M20 is a high-performance, halogen-free polyamide nylon fitting designed for secure, tool-free installation with CABFLX low fire hazard conduits, offering IP66 protection and flame retardant properties.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Conduit Size: 20mm
- Thread Size: M20 x 1.5
- Material: Polyamide Nylon (PA6)
- Temperature Rating: -40 to +115°C (Intermittent up to +150°C)
- Ingress Protection: IP66
- Flame Retardant: UL94 V-0
- UV Resistant, Anti-static
- Dimensions (H x L x W): 30mm x 50mm x 30mm
- Weight: 0.1 kg
Key Features
- Made from high quality polyamide nylon, halogen, phosphor and cadmium free
- Self-locking push-fit installation onto conduit, no tools required
- IP66 rated ingress protection
- UV resistant, flame retardant and self-extinguishing
- Anti-static and RoHS compliant
Professional Installation Requirements
- Professional installation recommended to ensure compliance with electrical standards and secure fitting.
Applications
- Cable management in industrial and commercial electrical installations
- Use with CABFLX low fire hazard conduits
- Suitable for environments requiring flame retardant and halogen-free fittings
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen, phosphor and cadmium free materials reduce environmental toxicity
- Flame retardant and self-extinguishing properties enhance safety and reduce fire risk
- RoHS compliant ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The Cabac Straight Quick Connector 20MM M20 is available for immediate purchase, ideal for electrical conduit installations requiring low fire hazard and high ingress protection.
