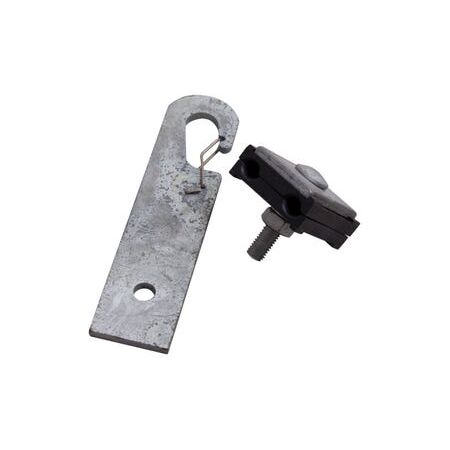

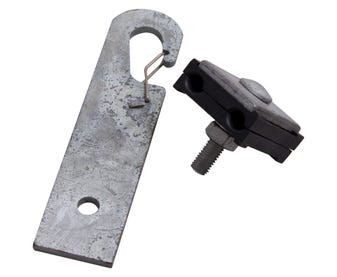

Strain Clamp for Aerial Bundled Conductors | 2 x 10 to 35mm² | Galvanised Steel & UV Stabilised Nylon by Cabac

BRAND: CABAC
SKU: SCSHS/2
$92.20 List price: $111.60
+
The Cabac Strain Clamp 2 x 10 to 35mm2 ABC is a durable and versatile clamp designed for securing overhead aerial bundled conductors, featuring galvanised steel and UV stabilised nylon components.

Product Name/Title: Strain Clamp 2 x 10 to 35mm2 ABC

Brand: Cabac

SKU: SCSHS/2

Alternatively Known As: Overhead Line Strain Clamp, ABC Strain Clamp, Electrical Strain Clamp

Technical Specifications
  • Suitable conductor size range: 2 x 10 to 35mm²
  • Material: Hot dipped galvanised steel and glass filled reinforced UV stabilised nylon
  • Configuration: Can be set up for two or four conductors
  • Dimensions (H x L x W): 50mm x 150mm x 100mm
  • Weight: 0.5 kg
Key Features
  • Multiple use house service strain clamp
  • Steel components hot dipped galvanised to Australian Standards
  • Plastic moulded from glass filled reinforced UV stabilised nylon
  • Range configurable for two or four conductors
Professional Installation Requirements
  • Installation should be performed by a qualified electrician or trained professional to ensure compliance with electrical safety standards.
Applications
  • Used typically between the pole and the fascia board for overhead line connections
  • Suitable for securing aerial bundled conductors (ABC) in residential and commercial electrical installations
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Hot dipped galvanised steel components provide long-lasting corrosion resistance reducing replacement frequency
  • UV stabilised nylon plastic reduces degradation from sunlight exposure, extending product life
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Cabac Strain Clamp 2 x 10 to 35mm2 ABC is available now for immediate purchase. Ideal for overhead line electrical connections in residential and commercial applications.
