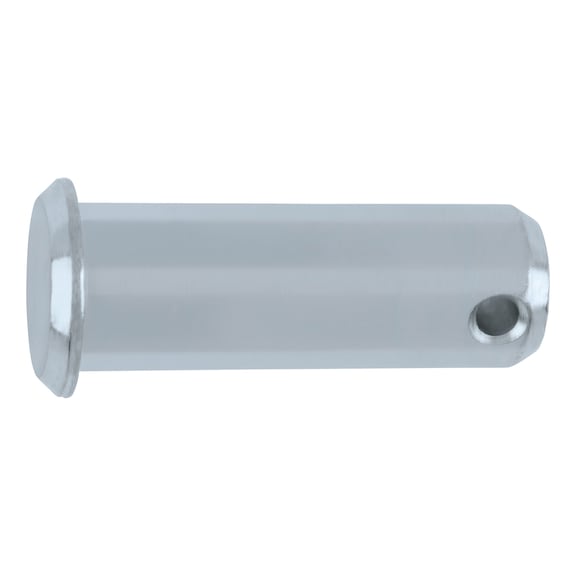

Stud with Small Head DIN 1434 | Steel Construction | Zinc-Plated & Blue Passivated | @Pack of 5 | by Wurth
Stud with small head DIN 1434 is crafted from high-strength steel, featuring a zinc-plated surface with blue passivation for enhanced corrosion resistance. Ideal for mechanical fastening in machinery, automotive assembly, and construction applications, this stud ensures secure fastening with its cotter pin hole design. Perfect for professionals seeking reliable and durable fastening solutions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Stud with Small Head DIN 1434 | Steel Construction | Zinc-Plated & Blue Passivated | @Pack of 5 | by Wurth
Brand: Wurth
SKU: 26000121
Alternatively Known As: DIN 1434 Stud Bolt, Small Head Stud, Zinc Plated Stud, Blue Passivated Stud

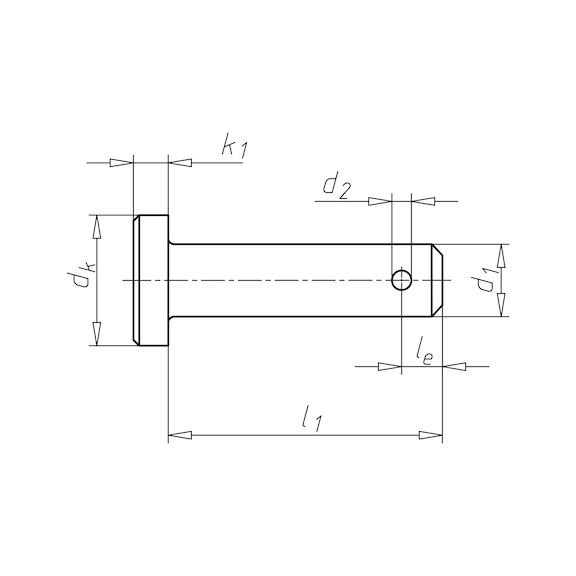

Technical Specifications
- Nominal diameter (d1): 12 mm
- Length (l1): 40 mm
- Head diameter (dk): 17 mm
- Head height (k1): 3 mm
- Distance from bolt end to centre of hole (le): 5 mm
- Diameter of hole (d2): 4 mm
- Standard: DIN 1434
- Material: Steel
- Surface finish: Zinc plated with blue passivation
- Form: Form B mit Splintloch (with cotter pin hole)
- Dimensions (H x L x W): 3mm x 40mm x 12mm
- Weight: 0.05 kg
Key Features
- Steel construction for high strength and durability
- Zinc-plated surface with blue passivation for corrosion resistance
- Small head design with a hole for cotter pin securing (Form B mit Splintloch)
Professional Installation Requirements
- Installation should be performed by qualified personnel to ensure proper fastening and safety compliance.
Applications
- Mechanical fastening in machinery and equipment
- Automotive assembly and repair
- Construction and structural applications requiring secure bolt fastening
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Zinc plating extends product life reducing waste and replacement frequency
Warranty Information
Standard manufacturer warranty against defects in material and workmanship.
Available Now
Available for immediate purchase, ideal for mechanical, automotive, and construction fastening applications.
