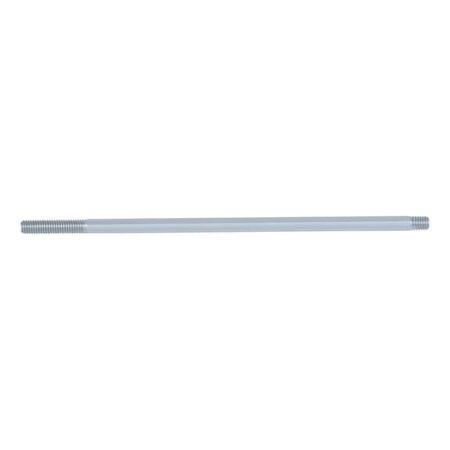

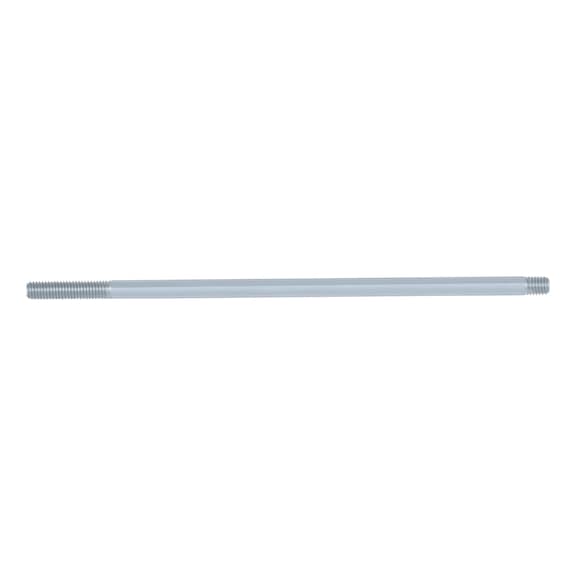

Stud with Threaded End M8x25 | DIN 939 Steel 5.8 | Zinc Plated & Blue Passivated | @Pack of 10 | by Wurth
The Stud with Threaded End M8x25 is designed for robust mechanical fastening, featuring a strong steel construction with a property class of 5.8. Its zinc plating and blue passivation provide excellent corrosion resistance, making it ideal for automotive assembly and construction applications. This stud complies with DIN 939 standards and is RoHS-compliant, ensuring safety and durability in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Stud with Threaded End M8x25 | DIN 939 Steel 5.8 | Zinc Plated & Blue Passivated | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 250608025
Alternatively Known As: Threaded Stud M8, DIN 939 Stud, Zinc Plated Stud, Blue Passivated Stud, Metric Thread Stud
Technical Specifications
- Thread type x nominal diameter (d1): M8
- Length (l1): 25 mm
- Thread length (metric thread) (l2): 18.8 mm
- Thread length 2 (metric thread) (l3): 10 mm
- Standards: DIN 939
- Material: Steel
- Property class: 5.8
- Surface: Zinc plated with blue passivation
- RoHS-compliant: Yes
- Head type: Without head
- Drive type: Without drive
- Thread type: Metric thread
- Pitch: 1.25 mm
- Thread form: Standard metric thread
- Shank diameter: 8 mm
- Product class: A
- Dimensions (H x L x W): 25mm x 25mm x 8mm
- Weight: 0.02 kg
Key Features
- Threaded stud with metric thread M8 and 25 mm length
- Made from steel with property class 5.8 for strength
- Zinc plated with blue passivation for corrosion resistance
- Complies with DIN 939 standard
- RoHS-compliant ensuring environmental safety
Professional Installation Requirements
- Installation by a qualified technician or engineer is recommended to ensure proper fastening and safety.
Applications
- Mechanical fastening in machinery and equipment
- Automotive assembly and repair
- Construction and structural applications requiring threaded studs
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS-compliant material reduces hazardous substances impact
- Durable zinc plating extends product life reducing waste
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Wurth Stud with Threaded End M8x25 DIN 939 Steel 5.8 Zinc Plated Blue Passivated is available for immediate purchase, ideal for mechanical and construction fastening applications.
