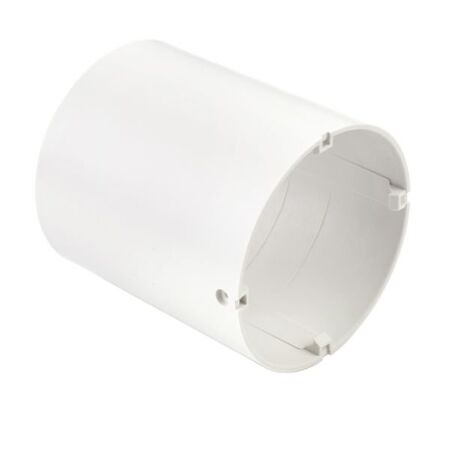

Surface Mount Back Box for MWS3A Detector White CP Electronics
The CP Electronics MWS3A-DBB surface mount back box is purpose-built for MWS3A series presence detectors, with a round 85mm diameter and matt white thermoplastic finish. It features rear cable entry and suits both horizontal and vertical mounting, with dimensions of 85mm x 93mm x 85mm (H x L x W). It's halogen-free and rated for -10°C to 50°C operation across residential, commercial, and industrial settings. Full specs and installation requirements are covered further down the page.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Material: Thermoplastic
- Colour: White (RAL 9002 similar)
- Shape: Round
- Diameter: 85 mm
- Depth: 93 mm
- Mounting: Surface mount, horizontal and vertical
- Cable entry: Yes, inlet from rear
- Number of units: 1
- Operating temperature: -10 to 50 °C
- Halogen free: Yes
- Surface finish: Matt
- Degree of protection (IP): Other
- Degree of impact strength (IK): Other
- Number of earthing terminals: 0
- Dimensions (H x L x W): 85mm x 93mm x 85mm
- Weight: 0.2 kg
Key Features
- Surface mount back box designed specifically for MWS3A series
- Made from thermoplastic material with a matt white finish
- Halogen free and untreated surface protection
- Cable entry available with inlet from the rear
- Round shape with 85 mm diameter
- Operating temperature range from -10 to 50 °C
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and safety regulations.
Applications
- Surface mounting for MWS3A series presence detectors
- Suitable for horizontal and vertical mounting directions
- Used in residential, commercial, and industrial presence detection systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen free material reduces environmental impact
- Durable thermoplastic construction extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies. Please refer to CP Electronics for specific warranty details.
Available Now
The CP Electronics MWS3A Surface Mount Back Box BESA Fixing White is available for immediate purchase, ideal for use with MWS3A presence detectors in various building applications.
FAQ
Q: What detector series is the MWS3A-DBB back box designed for?
A: It's designed specifically for the CP Electronics MWS3A series presence detectors, supporting both horizontal and vertical surface mounting.
Q: Does the MWS3A-DBB back box have cable entry?
A: Yes, it includes cable entry with an inlet from the rear of the box.
Pair with the matching surface mount back box extender for MWS3A detectors when additional depth is required.
For other detector types, CP Electronics also offers a standard surface mount back box extender in the same matt white finish.
Combine with the CP Electronics mini microwave presence detector to complete an MWS3A series sensor installation.
