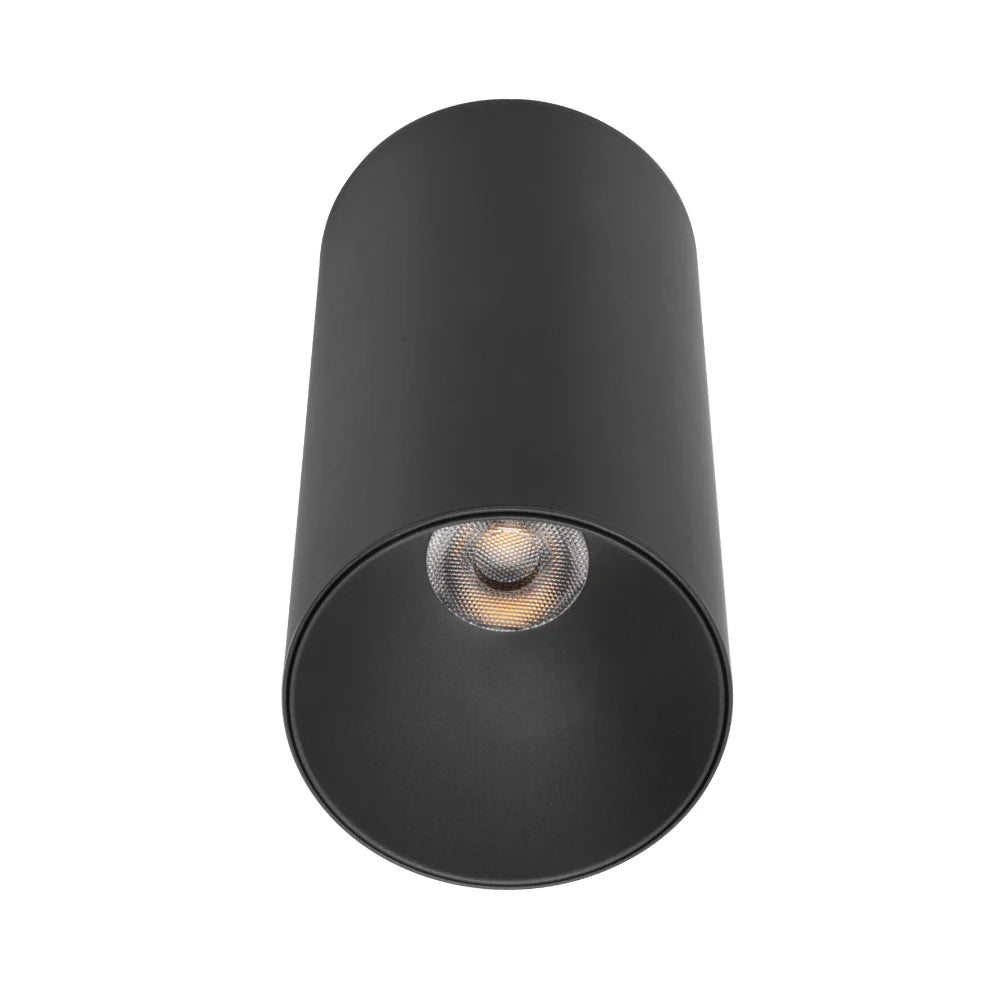

Surface Mount Downlight LED 10W 3000K Dimmable Grey Umbra Sova Telbix

BRAND: Telbix
SKU: SOVA CTC70-DGY93
$71.80 List price: $95.80
+ −
30 Days Return Electricians Unlock Trade Access
Telbix Sova surface mount downlight features 10W LED 3000K 1050lm, triac dimming and 70mm x 150mm cylinder body in grey umbra. Ideal for hallways and living areas.

Alternatively Known As: Sova CTC70-DGY93, Sova 70 CTC Surface-Mounted Downlight, Surface-Mount LED Downlight

Technical Specifications
  • Light Source: Integrated COB LED
  • Total Wattage: 10W
  • Lumen Output: 1050lm
  • Colour Temperature: 3000K
  • Light Colour: Warm white
  • Colour Rendering Index: >90 CRI
  • Beam Angle: 36°
  • Dimming: TRIAC dimmable
  • Input Voltage: 240V
  • Electrical Protection: Class III, low voltage
  • Insulation Rating: IC-4
  • IP Rating: IP20
  • Surge Protection: Yes
  • Material: Aluminium
  • Diffuser Material: Acrylic
  • Finish: Grey Umbra
  • Cable Length: 600mm
  • Approval: RCM

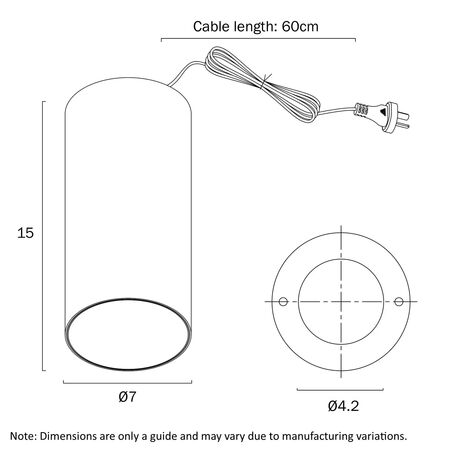

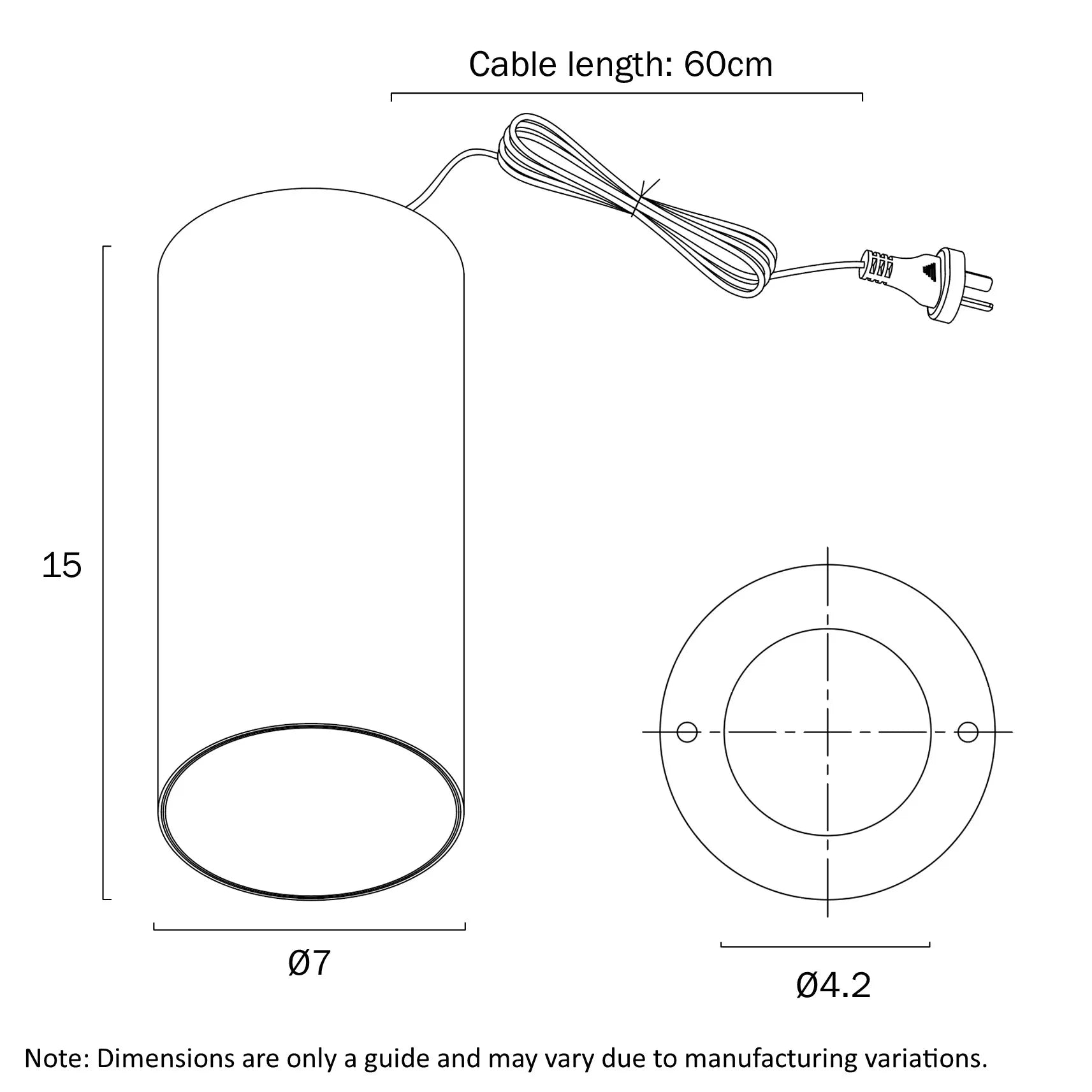

  • Dimensions (H x L x W): 150mm x 70mm x 70mm
  • Weight: 0.5 kg
Key Features
  • Surface-mounted cylindrical design for ceilings where recessed installation is unsuitable
  • Integrated 10W COB LED producing 1050lm
  • Warm 3000K light suitable for hallways, living areas and general interior lighting
  • High colour rendering with CRI above 90
  • TRIAC dimmable for adjustable light levels
  • 36° beam angle for focused illumination
  • IC-4 insulation classification
  • Aluminium construction with Grey Umbra finish
  • No ceiling cut-out required for surface installation
Professional Installation Requirements
  • Installation, electrical connection and inspection must be performed by a qualified licensed electrician in accordance with AS/NZS 3000 and the manufacturer's instructions.
Applications
  • Residential hallways
  • Living areas and lounges
  • Bedrooms and other indoor rooms
  • Commercial interiors
  • Concrete, rendered or shallow-ceiling installations where recessed mounting is unsuitable
Standards & Compliance
  • AS/NZS 3000: Electrical installations — installation in accordance with Australian and New Zealand wiring rules
  • AS/NZS 60598 series: Applicable luminaire safety requirements
  • AS/NZS 60695.11.5: Thermal and fire testing reference for the IC-4 insulation classification
Environmental Benefits
  • LED technology provides efficient illumination at 105lm/W, helping reduce operating energy compared with less efficient light sources
  • Aluminium construction is recyclable at end of service life
  • Integrated LED design and a five-year replacement warranty can help reduce replacement frequency and product waste
  • IC-4 classification permits suitable insulation coverage when installed according to the manufacturer's requirements, supporting efficient building-envelope performance
Warranty Information

Five-year replacement warranty for manufacturing defects, materials and workmanship, subject to Telbix warranty terms. Installation must be completed by a licensed electrician; labour and installation costs are generally excluded.

Available Now

Available through Telbix and authorised Australian lighting distributors.
