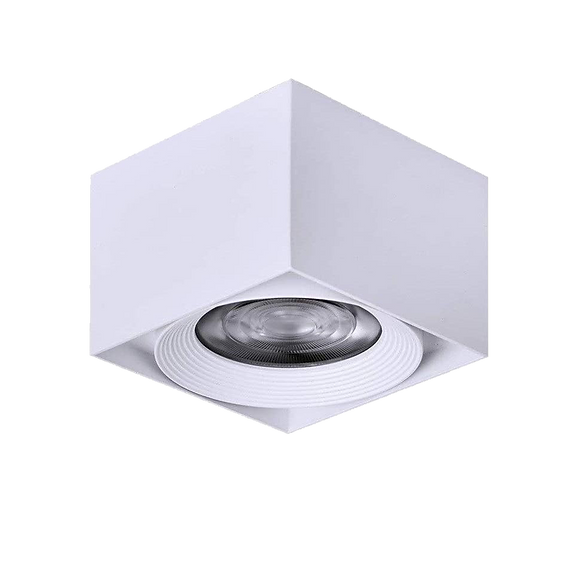

Surface Mount Square Downlight 10W | 3CCT Selectable | Triac Dimmable | White by 3A Lighting
Surface mount square downlight with 10W Bridgelux COB LED and 3CCT selectable color temperatures—ideal for residential and commercial spaces. Built for flexible lighting control, with triac dimmable feature and high CRI for true color rendering.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Surface Mount Square DL White Tri Color 10w
Brand: 3A Lighting
SKU: DD1541-WHTC10C02
Alternatively Known As: LED surface mount downlight, adjustable LED ceiling light, 3CCT dimmable LED spotlight
Technical Specifications
- Power: 10W
- LED Chip: Bridgelux COB
- CRI: >90
- Input Voltage: AC220-240V 50/60Hz
- Beam Angle: 24°
- Lumens Output: 700lm
- Colour Temperature: 3000K / 4000K / 6000K (3CCT)
- IP Grade: IP20
- Adjustable Angle: 350°
- Triac dimmable
- Housing Colour: Black, White
- Dimensions (H x L x W): 120mm x 90mm x 90mm
- Weight: 0.7 kg
Key Features
- 10W Bridgelux COB LED chip for high efficiency
- Triac dimmable for flexible lighting control
- 3CCT selectable: 3000K, 4000K, 6000K
- High CRI >90 for true color rendering
- Adjustable 350° angle for directional lighting
- 24° beam angle for focused illumination
- Available in black or white housing
Professional Installation Requirements
- Installation by a licensed electrician is required to ensure safety and compliance with Australian standards.
Applications
- Residential: Living rooms, kitchens, hallways
- Commercial: Retail stores, offices, hospitality venues
- General: Any indoor space requiring adjustable, energy-efficient lighting
Standards & Compliance
- Complies with AS/NZS 60598 for safety and performance standards.
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient LED technology reduces electricity consumption
- Long lifespan minimizes waste and replacement frequency
- Mercury-free and low heat emission for safer indoor environments
Warranty Information
3 years warranty against manufacturing defects.
Available Now
Available for immediate purchase. Ideal for residential and commercial indoor lighting applications requiring adjustable, energy-efficient illumination.
