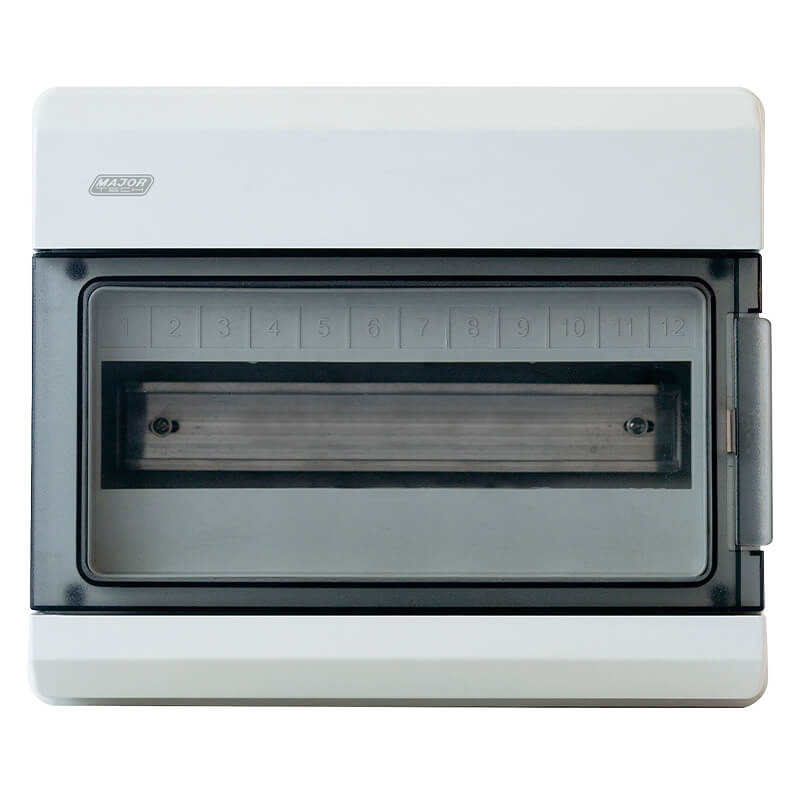

Surface Mount Switchboard 12 Pole IP66 MajorTech
MajorTech surface mount switchboard features 12 pole capacity and IP66 weatherproof rating. Ideal for outdoor switchboard fit-out.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 12-Way IP66 Distribution Board, Weatherproof Switchboard Enclosure, Surface-Mount Distribution Board
Technical Specifications
- Model: VBW12SA
- Capacity: Up to 12 individual 18mm modules
- Number of Rows: 1
- Mounting Type: Surface mount
- Mounting Support: DIN rail
- Rated Current: Up to 125A
- Voltage Range: Up to 1000VAC or 1500VDC
- Ingress Protection: IP66
- Impact Protection: IK08
- Enclosure Material: UV-stabilised polycarbonate
- Cover: Transparent clip-on cover
- Earth/Neutral Bar: Copper
- Top Knockouts: 2 x 20mm and 3 x 32mm
- Bottom Knockouts: 2 x 20mm and 3 x 32mm
- Fire Resistance: Up to 850°C for 30 seconds
- Operating Temperature: -5°C to 40°C
- Storage Temperature: -40°C to 75°C
- Approvals and Testing: CE, RoHS, HF test, IK test and ISO 9001
- Dimensions (H x L x W): 230mm x 110mm x 273mm
- Weight: 1.19 kg
Key Features
- 12-pole capacity for individual 18mm DIN-mounted modules
- IP66 protection against dust and powerful water jets
- IK08 impact-resistant enclosure
- Suitable for outdoor, industrial and marine installations
- UV-stabilised polycarbonate construction
- Transparent clip-on cover with push-to-open mechanism
- Copper earth and neutral bar included
- Fire resistant to 850°C for 30 seconds
- Top and bottom cable knockouts for flexible installation
Professional Installation Requirements
- Installation, wiring and fit-out should be performed by a licensed electrician in accordance with AS/NZS 3000, the manufacturer's instructions and applicable switchboard assembly requirements. Circuit breakers, earth-leakage devices and isolators are fitted separately as required.
Applications
- Outdoor electrical distribution
- Industrial control and distribution installations
- Marine and coastal electrical installations
- Commercial switchboards and workshops
- Weather-exposed electrical fit-outs
- Small power distribution systems using DIN-mounted protective devices
Standards & Compliance
- AS/NZS 61439
- AS/NZS 61000
Environmental Benefits
- RoHS approval supports reduced use of restricted hazardous substances
- UV-stabilised polycarbonate enclosure supports extended service life and reduced replacement waste
- Modular DIN-rail design allows individual protective devices to be replaced or upgraded without replacing the complete enclosure
- Durable IP66 and IK08 construction can reduce premature product replacement in demanding environments
Warranty Information
5-year limited warranty for distribution boards and enclosures, subject to MajorTech warranty conditions, proof of purchase and exclusions including incorrect use, unauthorised alterations, electrical surges and sea-air corrosion.
Available Now
Available through MajorTech and authorised Australian electrical distributors.
