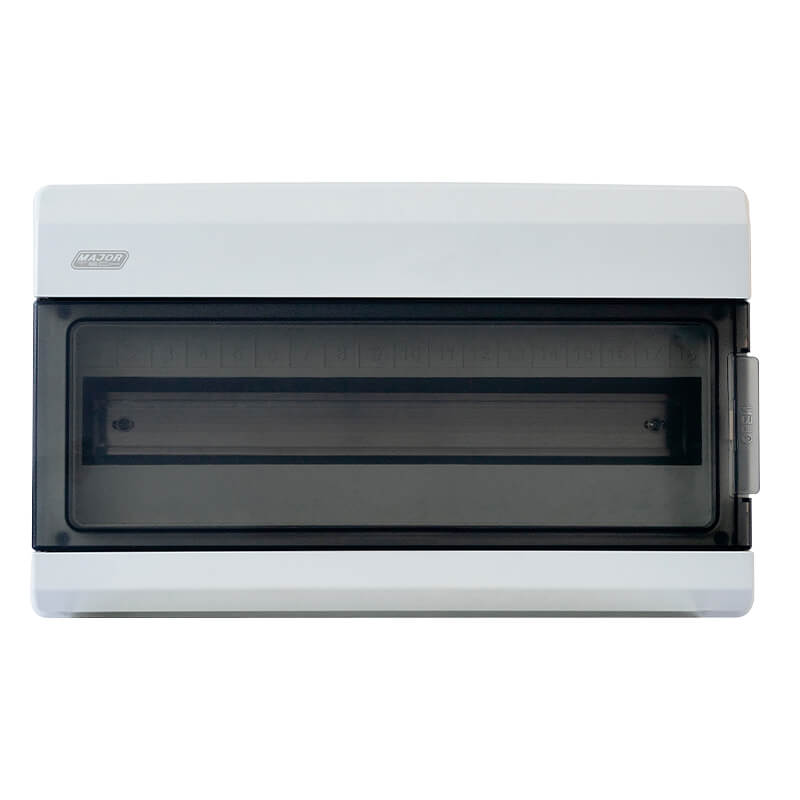

Surface Mount Switchboard 18 Pole IP66 MajorTech
MajorTech surface mount switchboard features 18 pole capacity and IP66 weatherproof rating. Ideal for outdoor switchboard fit-out.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 18-Way IP66 Distribution Board, Outdoor Switchboard Enclosure, Surface-Mount Distribution Board
Technical Specifications
- Model: VBW18SA
- Pole Capacity: 18 individual 18mm modules
- Rows: 1
- Mounting: Surface mount with DIN rail support
- Ingress Protection: IP66
- Impact Protection: IK08
- Rated Current: Up to 125A
- Voltage Range: Up to 1000VAC or 1500VDC
- Enclosure Material: UV-stabilised polycarbonate
- Earth and Neutral Bar: Copper
- Fire Resistance: Up to 850°C for 30 seconds
- Cable Entries: 8 x 20mm and 8 x 32mm knock-outs, top and bottom
- Cover: Transparent push-to-open cover
- Operating Temperature: -5°C to 40°C
- Storage Temperature: -40°C to 75°C
- Dimensions (H x L x W): 230mm x 380mm x 115mm
- Weight: 1.61 kg
Key Features
- Accommodates 18 individual 18mm DIN modules
- IP66 protection against dust and powerful water jets
- IK08 impact-resistant enclosure
- UV-stabilised polycarbonate construction for outdoor use
- Copper earth and neutral bar included
- Single-row DIN rail layout
- Fire-resistant enclosure rated to 850°C for 30 seconds
- Suitable for outdoor, industrial, marine and commercial installations
Professional Installation Requirements
- Installation and commissioning must be performed by a licensed electrician in accordance with the manufacturer's instructions, AS/NZS 3000 and applicable local electrical regulations. Circuit breakers, RCDs and isolators are fitted separately as required.
Applications
- Outdoor residential switchboard fit-outs
- Commercial and industrial electrical distribution
- Marine and weather-exposed installations
- Workshops, factories and utility areas
- Electrical installations requiring IP66 dust and water protection
Standards & Compliance
- AS/NZS 61439
- AS/NZS 61000
Environmental Benefits
- Durable polycarbonate enclosure can extend service life and reduce replacement waste
- Copper earth and neutral bar is recyclable at end of service life
- IP66 protection helps preserve internal electrical equipment in harsh environments, supporting longer system life
- RoHS approval supports restriction of certain hazardous substances
Warranty Information
5-year limited warranty for distribution boards and enclosures, subject to MajorTech warranty terms and conditions.
Available Now
Available through MajorTech and authorised Australian electrical distributors.
