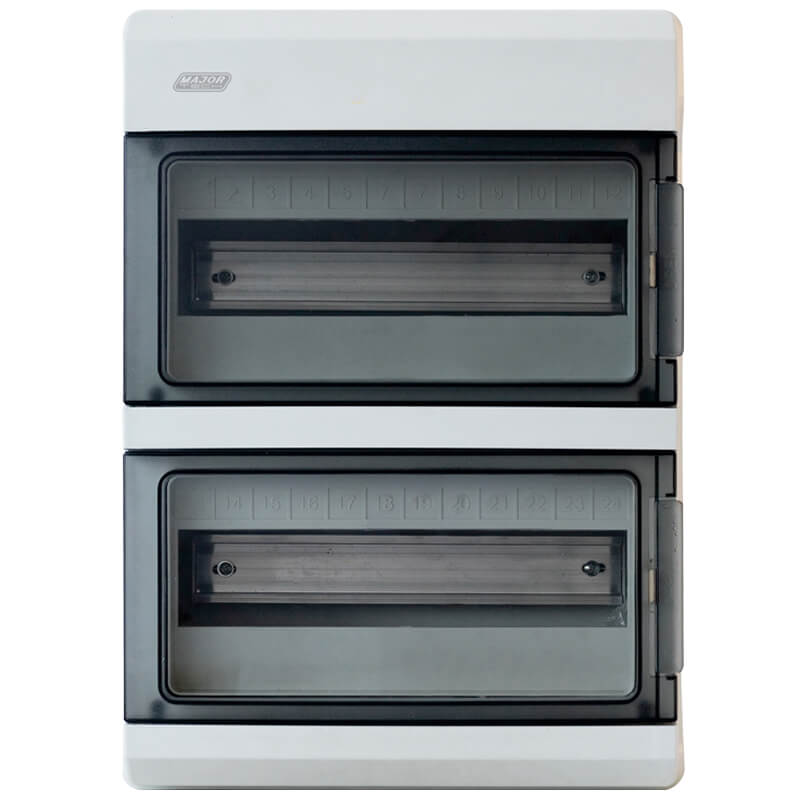

Surface Mount Switchboard 24 Pole IP66 MajorTech
MajorTech surface mount switchboard features 24 pole capacity and IP66 weatherproof rating. Ideal for outdoor switchboard fit-out.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 24-Pole IP66 Distribution Board, Outdoor Electrical Switchboard, Weatherproof DIN Rail Switchboard
Technical Specifications
- Model: VBW24SA
- Module Capacity: 24 individual 18mm modules
- Rows: 2
- Mounting Type: Surface mount
- Mounting Support: DIN rail
- Ingress Protection: IP66
- Impact Protection: IK08
- Rated Current: Up to 125A
- Voltage Range: Up to 1000V AC or 1500V DC
- Enclosure Material: UV-stabilised polycarbonate
- Earth/Neutral Bar: Copper
- Fire Resistance: Up to 850°C for 30 seconds
- Knockouts: 2 x 20mm and 3 x 32mm top and bottom
- Cover: Transparent clip-on cover
- Operating Temperature: -5°C to 40°C
- Storage Temperature: -40°C to 75°C
- Dimensions (H x L x W): 380mm x 115mm x 273mm
- Weight: 1.99 kg
Key Features
- Accommodates up to 24 individual 18mm DIN rail modules
- IP66 protection against dust and powerful water jets
- IK08 impact-resistant enclosure
- Suitable for outdoor, industrial, marine and commercial installations
- Two-row configuration for compact circuit distribution
- UV-stabilised polycarbonate enclosure with copper Earth and Neutral bars
- Transparent clip-on cover with push-to-open mechanism
- Fire resistant to 850°C for 30 seconds
- Supplied with top and bottom cable-entry knockouts
Professional Installation Requirements
- Installation, wiring and fit-out should be performed by a licensed electrician in accordance with AS/NZS 3000 and the manufacturer's instructions. Circuit breakers, earth-leakage devices and isolators are fitted separately as required.
Applications
- Outdoor electrical switchboard fit-outs
- Industrial and commercial distribution systems
- Marine and coastal electrical installations
- Workshops, factories and service areas
- Electrical upgrades requiring IP66 weather protection
Standards & Compliance
- AS/NZS 61439
- AS/NZS 61000
Environmental Benefits
- Durable polycarbonate enclosure can extend service life and reduce replacement waste
- Copper Earth and Neutral bars are recyclable
- RoHS approval supports restriction of certain hazardous substances
- IP66 protection helps protect installed electrical equipment from moisture and dust-related premature failure
Warranty Information
5-year limited warranty for distribution boards and enclosures, subject to MajorTech warranty terms and exclusions.
Available Now
Available through MajorTech and authorised Australian electrical distributors.
