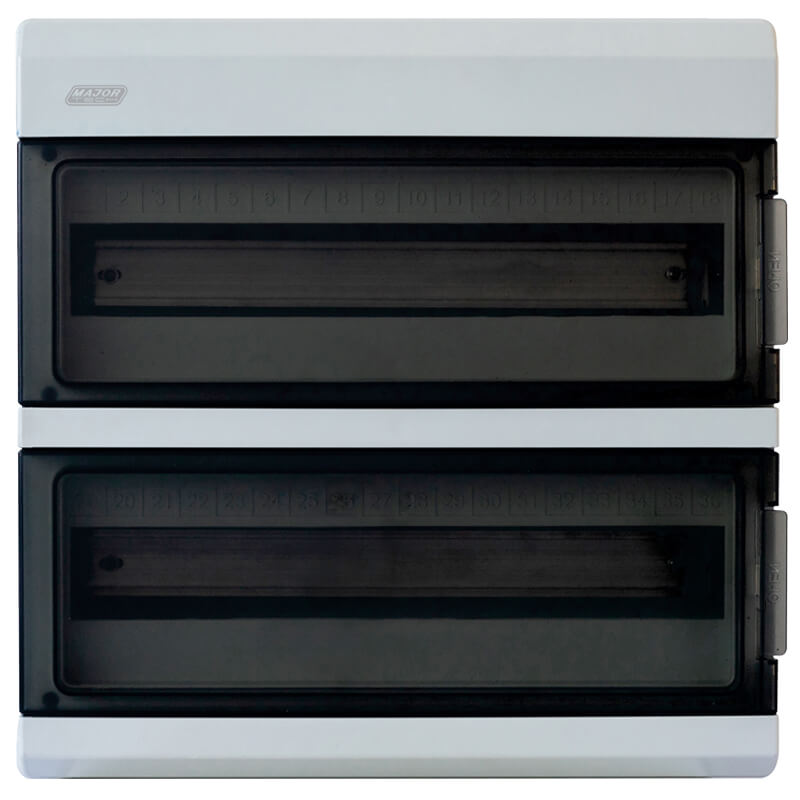

Surface Mount Switchboard 36 Pole IP66 MajorTech
MajorTech surface mount switchboard features 36 pole capacity and IP66 weatherproof rating. Ideal for outdoor switchboard fit-out.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: MajorTech VBW36SA, 36-Way IP66 Distribution Board, Outdoor Switchboard Enclosure
Technical Specifications
- SKU: VBW36SA
- Module Capacity: Up to 36 individual 18mm modules
- Rows: 2
- Mounting Type: Surface mount
- Mounting Support: DIN rail
- Ingress Protection: IP66
- Impact Protection: IK08
- Rated Current: Up to 125A
- Voltage Range: Up to 1000V AC or 1500V DC
- Knockouts: 4 x 20mm and 4 x 32mm top; 4 x 20mm and 4 x 32mm bottom
- Enclosure Material: UV-stabilised polycarbonate
- Earth/Neutral Bar: Copper
- Fire Resistance: Up to 850°C for 30 seconds
- Cover: Transparent, clip-operated
- Colour: Grey
- Dimensions (H x L x W): 380mm x 380mm x 115mm
- Weight: 2.5 kg
Key Features
- Accommodates up to 36 individual 18mm DIN modules
- IP66 protection against dust and powerful water jets
- IK08 impact-resistant enclosure
- Suitable for outdoor, industrial and marine electrical distribution applications
- UV-stabilised polycarbonate enclosure for outdoor durability
- Includes copper earth and neutral bar
- Double-row configuration
- Designed for use with circuit breakers, earth-leakage devices and isolator switches
Professional Installation Requirements
- Installation, wiring and commissioning must be performed by a licensed electrician in accordance with applicable Australian wiring rules, manufacturer instructions and the requirements of AS/NZS 61439. The enclosure must be correctly sealed after cable entry and device installation to maintain its IP66 rating.
Applications
- Outdoor residential switchboard fit-outs
- Commercial and industrial distribution boards
- Marine and coastal electrical installations
- Weather-exposed electrical distribution
- Industrial control and protection enclosures
Standards & Compliance
- AS/NZS 61439
- AS/NZS 61000
Environmental Benefits
- UV-stabilised polycarbonate enclosure supports extended service life and reduces replacement waste
- Copper earth and neutral bar is recyclable at end of service life
- IP66 protection helps protect installed electrical equipment from dust and water ingress, supporting reliable long-term operation
- RoHS approval supports restriction of certain hazardous substances
Warranty Information
5-year limited warranty for MajorTech distribution boards and enclosures, subject to the manufacturer's warranty terms, correct application, installation, maintenance and proof of purchase.
Available Now
Available through MajorTech and authorised Australian electrical distributors.
