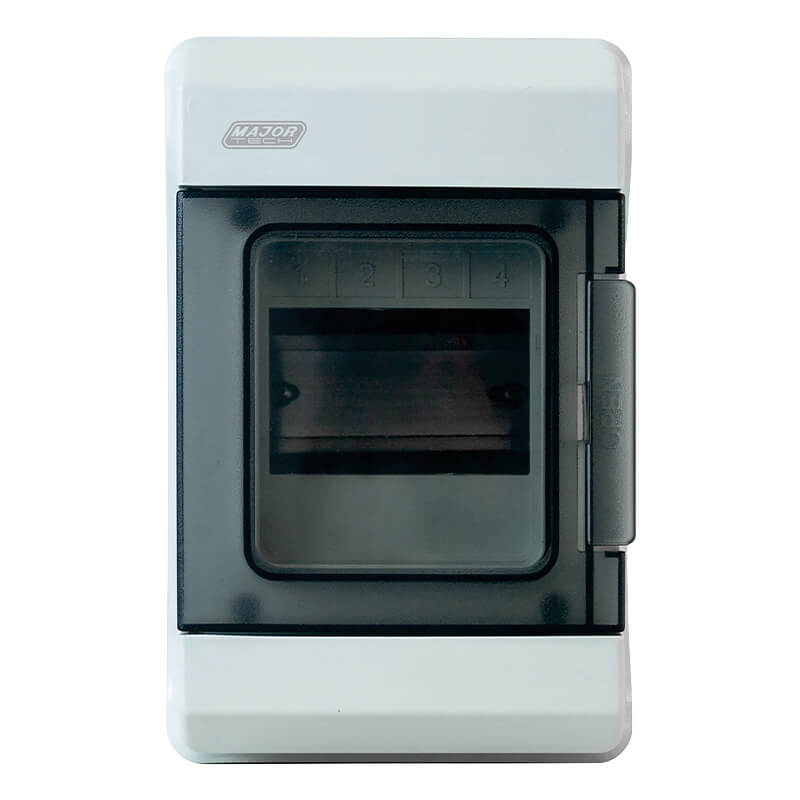

Surface Mount Switchboard 4 Pole IP66 MajorTech
MajorTech surface mount switchboard features 4 pole capacity and IP66 weatherproof rating. Ideal for outdoor switchboard fit-out.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: MajorTech VBW4SA, 4-Way IP66 Distribution Board, Outdoor Surface-Mount Switchboard
Technical Specifications
- Model: VBW4SA
- Pole Capacity: 4 individual 18mm modules
- Rows: 1
- Mounting Type: Surface mount
- Mounting Support: DIN rail
- Ingress Protection: IP66
- Impact Protection: IK08
- Rated Current: Up to 125A
- Voltage Range: Up to 1000V AC or 1500V DC
- Knock-outs: 2 x 20mm top and 2 x 20mm bottom
- Enclosure Material: Polycarbonate plastic
- Earth/Neutral Bar: Copper
- Fire Resistance: Up to 850°C for 30 seconds
- Cover: Transparent with clip mechanism
- Operating Temperature: -5°C to 40°C
- Approvals: CE, RoHS, HF test, IK test and ISO 9001
- Dimensions (H x L x W): 200mm x 105mm x 127mm
- Weight: 0.58 kg
Key Features
- Accommodates four individual 18mm DIN-rail modules
- IP66 protection against dust and powerful water jets
- IK08 impact-resistant enclosure
- Surface-mount design for outdoor and industrial installations
- Polycarbonate enclosure with copper earth and neutral bar
- Fire-resistant construction tested to 850°C for 30 seconds
- Transparent clip-on cover designed to help maintain IP66 integrity
Professional Installation Requirements
- Installation and connection should be performed by a licensed electrician in accordance with applicable Australian electrical requirements, including AS/NZS 3000 and the manufacturer's instructions.
Applications
- Outdoor switchboard fit-outs
- Industrial electrical distribution
- Marine and coastal installations
- Commercial workshops and plant rooms
- Rural and general electrical installations
- Protection of compact circuits using modular circuit breakers, RCDs or isolators
Standards & Compliance
- AS/NZS 61439
- AS/NZS 61000
Environmental Benefits
- RoHS approval supports reduced use of restricted hazardous substances
- Polycarbonate enclosure and copper earth/neutral bar can enter established recyclable material streams at end of service life
- IP66 and IK08 protection helps extend service life and reduce replacement waste
- Suitable for durable outdoor installations without refrigerants or other high-global-warming substances
Warranty Information
5-year limited warranty for MajorTech distribution boards and enclosures, subject to the manufacturer's warranty terms and conditions.
Available Now
Available through MajorTech and authorised Australian electrical distributors.
