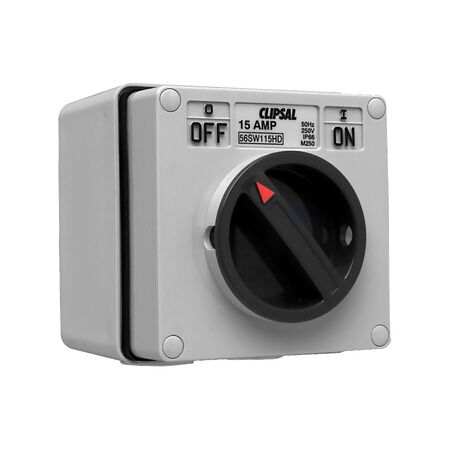

Surface Switch 1 Gang 250VAC | 15A Heavy Duty | IP66 Rated | Grey by Clipsal
Surface switch with 250VAC and 15A capacity—ideal for utility and small commercial applications. Built for durability, with heavy-duty design and IP66 rating for dust and water protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Clipsal - 56 Series, Surface Switch, 1 Gang, 250VAC, 15A, Heavy Duty - Grey
Brand: Clipsal
SKU: 56SW115HD-GY
Alternatively Known As: Clipsal Heavy Duty Switch, Clipsal 56 Series Switch, Surface Mount Switch
Technical Specifications
- Rated operational voltage: 250 V AC 50 Hz
- Rated current: 15 A
- Material: Polycarbonate
- Number of poles: 1
- Breaking capacity: 15 kA
- Rated impulse withstand voltage: 4 kV
- Rated short-circuit making capacity: 1 kA
- Tightening torque: 0.8 N.m
- Dimensions (H x L x W): 107mm x 108mm x 101mm
- Weight: 0.54 kg
Key Features
- Heavy duty design with rotary knob control.
- IP66 rated for protection against dust and water.
- Suitable for isolation.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Utility industry
- Small commercial
Standards & Compliance
- Complies with AS/NZS 3133 and AS 60529.
Environmental Benefits
- Compliant with RoHS directives and made with recycled materials.
Warranty Information
Standard warranty applies.
Available Now
The Clipsal 56 Series Surface Switch is available now for immediate purchase. Ideal for utility and small commercial applications.
