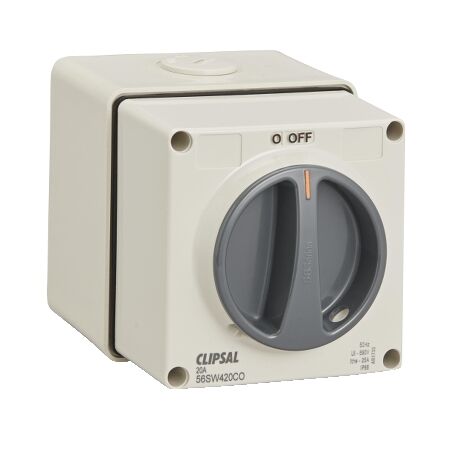

Surface Switch 1 Gang 4 Pole | 500VAC 20A | IP66 Rated | Grey by Clipsal
Surface switch with 500VAC and 20A capacity—ideal for industrial control applications. Built for durability, with IP66 rating for dust and water protection and rotary knob control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Clipsal - 56 Series, Surface Switch, 1 Gang, 4 Pole, 500VAC, 20A, Reversing and Changeover - Grey
Brand: Clipsal
SKU: 56SW420CO-GY
Alternatively Known As: Clipsal 56 Series Switch, 4 Pole Switch, Rotary Switch
Technical Specifications
- Rated operational voltage: 500 V AC 50 Hz
- Rated current: 20 A
- Material: Polycarbonate
- Breaking capacity: 20 kA
- Rated short-circuit making capacity: 1.7 kA
- Rated impulse withstand voltage: 4 kV
- Rated short-time withstand current: 0.8 kA for 1 s
- Tightening torque: 0.8 N.m
- Dimensions (H x L x W): 107mm x 124mm x 101mm
- Weight: 0.64 kg
Key Features
- 4-pole switch with rotary knob control
- IP66 rated for protection against dust and water
- Suitable for isolation
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Control applications in small commercial and utility settings
Standards & Compliance
- Complies with AS/NZS 3133 and AS 60529 for safety and performance standards.
Environmental Benefits
- Compliant with RoHS directives and regulations.
Warranty Information
Standard warranty applies.
Available Now
The Clipsal 56 Series Surface Switch is available now for immediate purchase. Ideal for industrial control applications.
