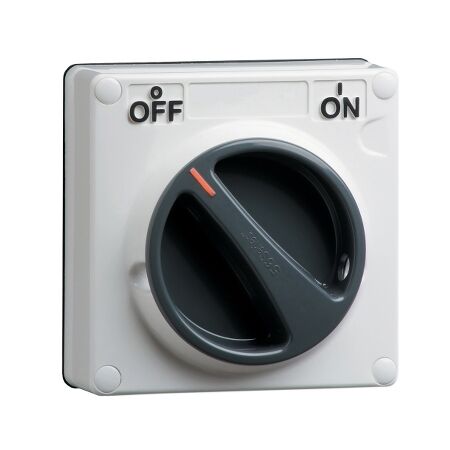

Surface Switch IP66 1 Gang Double Pole 20A | Rotary Knob | Grey by Clipsal
Surface switch with IP66 rating and rotary knob control—ideal for small commercial utility industry. Built for durability, with double pole 20A capacity and polycarbonate construction.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Clipsal - 56 Series, Surface Switch, IP66 1 Gang Double Pole 20A Less Enclosure - Grey
Brand: Clipsal
SKU: 56SW220LE-GY
Alternatively Known As: Clipsal Surface Switch, IP66 Switch, Double Pole Switch
Technical Specifications
- Rated operational voltage: 250 V AC 50 Hz
- Rated current: 20 A
- Material: Polycarbonate (PC)
- Breaking capacity: 20 kA
- Rated short-circuit making capacity: 1 kA
- Rated impulse withstand voltage: 4 kV
- Rated short-time withstand current: 1.2 kA for 1 s
- Tightening torque: 0.8 N.m
- Dimensions (H x L x W): 107mm x 72mm x 101mm
- Weight: 0.26 kg
Key Features
- IP66 rated for protection against dust and water.
- Rotary knob control type.
- Suitable for isolation.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Small commercial utility industry
Standards & Compliance
- Complies with AS/NZS 3133 and AS 60529.
Environmental Benefits
- Compliant with RoHS directives and mercury-free.
Warranty Information
Standard warranty as per Clipsal's policy.
Available Now
The Clipsal 56 Series Surface Switch IP66 1 Gang Double Pole 20A is available now for immediate purchase. Ideal for small commercial and industrial applications.
