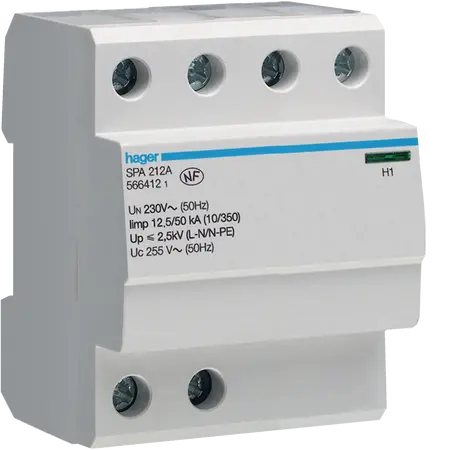

Surge Protection Device 230V 12.5kA Light Indicator Grey Hager
Hager Surge Protection Device 230V 12.5kA Light Indicator Grey features 12.5kA discharge, 230V, Light Indicator. Ideal for domestic switchboards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Capacity: 4 modules
- Rated operational voltage: 230 V
- Continuous operating voltage: 255 V
- Voltage protection level: 2.50 kV
- Nominal discharge current: 12.5 kA
- Max. overcurrent protection device: 315 A
- Max. discharge (Imax): 50 kA
- Operating temperature: -40 to 60 °C
- Network type: TN, TT
- Frequency: 50 - 60 Hz
- Nominal tightening torque: 3.60 Nm
- Dimensions (H x L x W): 90mm x 68mm x 72mm
- Weight: 0.5 kg
Key Features
- 12.5 kA nominal discharge current for effective surge protection.
- Light indicator for operational status.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, offices
- Commercial: Retail, hospitality, workspaces
- General: Any installation requiring surge protection
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- RoHS compliant and halogen-free, contributing to reduced environmental impact.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Hager SPD 2P Monobloc 12.5kA Class 1 with Light Indicator TT is available now for immediate purchase. Ideal for residential and commercial electrical installations.
