Trade Discount 20%

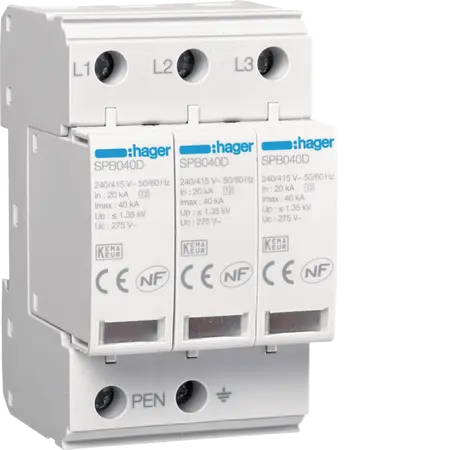

Surge Protection Device 3P Type 2 275V 20kA Grey Hager
Hager Surge Protection Device 3P Type 2 275V 20kA Grey features 3-Pole, Type 2, 20kA discharge, 275V. Ideal for domestic switchboards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Capacity: 3 modules
- Rated operational voltage Ue: 240 - 415 V
- Continuous operating voltage Uc: 275 V
- Voltage protection level Up: 1.35 kV
- Nominal discharge current In: 20 kA
- Max. discharge current Imax: 40 kA
- Operating temperature: -40 to 80 °C
- Network configuration: TN, TT
- Frequency: 50 - 60 Hz
- Dimensions (H x L x W): 90mm x 66mm x 53mm
- Weight: 0.5 kg
Key Features
- 3 modules for effective surge protection.
- Rated operational voltage of 240 - 415 V.
- Continuous operating voltage Uc of 275 V.
- Nominal discharge current In of 20 kA.
- Max discharge current Imax of 40 kA.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, offices
- Commercial: Retail, hospitality, workspaces
- Industrial: Factories, manufacturing facilities
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- RoHS compliant, reducing hazardous substances in electrical equipment.
- Halogen-free materials contribute to safer disposal and recycling.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Surge Protection Device 3P T2 TNC Uc 275V In 20kA Imax 40kA is available now for immediate purchase. Ideal for residential, commercial, and industrial applications.
