Surge Protection Device Type 2 | 40kA 3 Phase | 400VAC DIN Rail by NHP
Surge protection device with 40kA discharge current and 400VAC nominal voltage—ideal for industrial and residential applications. Built for enhanced safety with DIN rail mounting and IP20 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

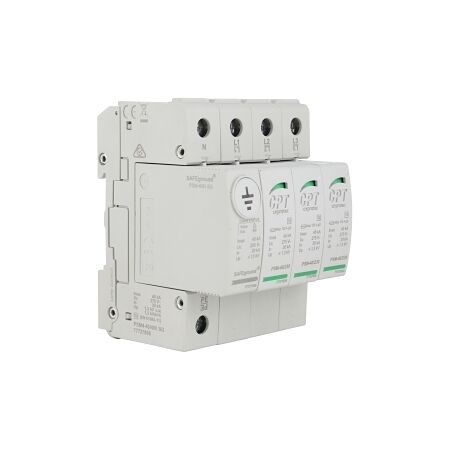

Product Name/Title: Cirprotec PSM Surge Protection Device Type 2 3 Phase L-L and L-N, N-PE Imax 40kA 400VAC Safeground
Brand: NHP
SKU: CPTPSM440400SG
Alternatively Known As: Surge Protection Device, Surge Suppressor, Voltage Surge Protector
Technical Specifications
- Max Discharge Surge Current (8/20): 40 kA
- Protection Class: II
- Nominal Voltage AC: 400 V
- Max Continuous Voltage AC: 320 V
- Voltage Protection Level: 1.3 kV
- Mounting Method: DIN rail (top hat rail) 35 mm
- Construction Size: 4 modular spacing
- Degree of Protection: IP20
- Max Conductor Cross Section (Solid/Solid Stranded): 35 mm²
- Max Conductor Cross Section (Flexible/Fine Strand): 25 mm²
- Dimensions (H x L x W): 90mm x 100mm x 70mm
- Weight: 1.0 kg
Key Features
- Surge protection device with a maximum discharge surge current of 40 kA.
- Protection class II for enhanced safety.
- Designed for 400 V nominal voltage with a voltage protection level of 1.3 kV.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Manufacturing facilities, data centers, and commercial buildings
- Residential: Homes requiring surge protection for electrical systems
Standards & Compliance
- Complies with AS/NZS 3820 for essential safety requirements for electrical equipment.
Environmental Benefits
- Protects electrical systems from surges, reducing waste and extending equipment lifespan.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Cirprotec PSM Surge Protection Device Type 2 is available now for immediate purchase, ideal for protecting electrical systems in various applications.
