SVG Wall Mount System 50KVar | IP30 3P 4W | Grey by NHP
SVG wall mount system with 50KVar capacity and IP30 rating—ideal for industrial and commercial power factor correction. Built for enhanced performance with Modbus TCP integration and high reactive power compensation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

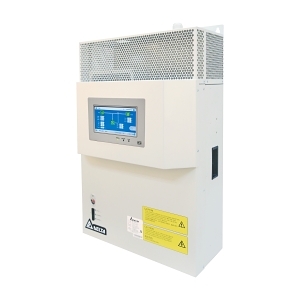

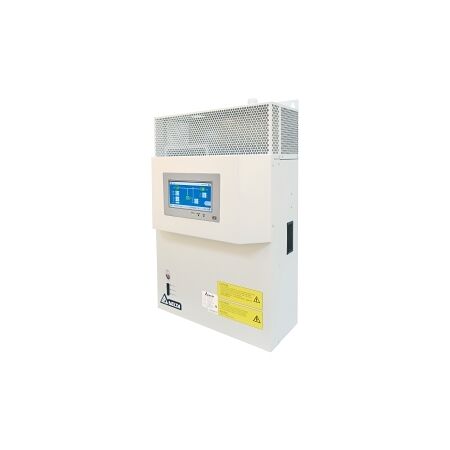

Product Name/Title: Delta Electronics SVG Wall Mount System 50KVar IP30 3P 4W Grey
Brand: NHP
SKU: PQSVGW5030G4XXT1A
Alternatively Known As: Static Var Generator, SVG Wall Mount, Power Factor Correction System
Technical Specifications
- Rated frequency: 50-60 Hz
- Response time: 20 s
- Instant response time: 100 s
- Min mean time before failure (MTBF): 100,000 h
- Operating temperature: -10 to 50 °C
- Thermal loss: 3 %
- Cooling method: Air
- Dimensions (H x L x W): 600mm x 174mm x 440mm
- Weight: 30 kg
Key Features
- Four-wire model for enhanced performance.
- Rated operating voltage of 308-456 V.
- Modbus TCP communications protocol for easy integration.
- High reactive power compensation performance with Cos phi ≥0.99.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal performance.
Applications
- Industrial: Factories and manufacturing plants
- Commercial: Large office buildings and retail spaces
- Energy: Power factor correction in electrical systems
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation safety.
Environmental Benefits
- Improves energy efficiency by reducing reactive power losses.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Delta Electronics SVG Wall Mount System 50KVar IP30 3P 4W Grey is available now for immediate purchase. Ideal for industrial and commercial applications.
