Trade Discount 17%
SWA Gland M50 Cable Gland | 43.0 - 53.1mm OD | IP66 Weatherproof | Nickel Plated Brass by Cabac

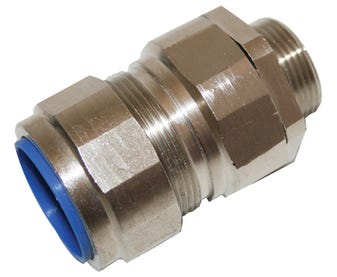

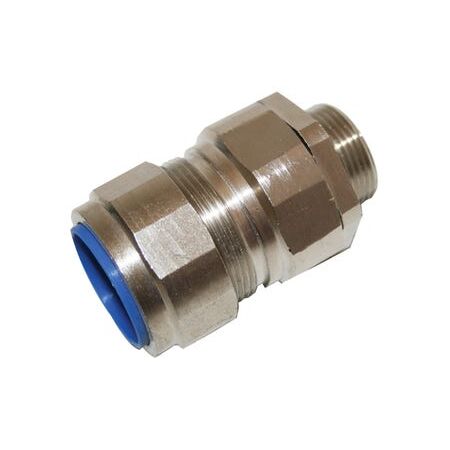

The Cabac SWA Gland M50 is a nickel plated brass cable gland designed for steel wire armoured cables with cable outer diameters from 43.0 to 53.1mm. It features a neoprene rubber seal for IP66 weatherproof protection and a unique wedge seal for quick installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cabac SWA Gland M50 Cable OD 43.0 - 53.1mm
Brand: Cabac
SKU: CW50
Alternatively Known As: SWA Cable Gland M50, Armoured Cable Gland M50, Metal Cable Gland M50, Brass Cable Gland for SWA
Technical Specifications
- Body Material: Brass
- Finish: Nickel plated
- Seal Material: Neoprene rubber
- IP Rating: IP66
- Conformance Standard: BS6121: Part 1:1989
- Cable Outer Diameter Range: 43.0 - 53.1 mm
- Armour Wire Diameter: 2.0 - 2.5 mm
- Mounting Thread Diameter: 50 mm
- Thread Length: 15 mm
- Dimensions (H x L x W): n/a mm x n/a mm x n/a mm
- Weight: 0.3 kg
Key Features
- Nickel plated brass body for corrosion resistance
- Neoprene rubber seal provides IP66 dust and water protection
- Unique wedge seal design for easier and faster installation
- Accommodates a wide cable range for simplified selection
- Suitable for PVC and XLPE insulated armoured cables
Professional Installation Requirements
- Installation should be performed by a qualified electrician following standard gland installation practices to ensure proper sealing and compliance with electrical safety standards.
Applications
- Steel wire armoured cable installations
- PVC and XLPE insulated armoured cables
- Weatherproof outdoor and indoor cable sealing
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable brass construction reduces need for frequent replacements
- Nickel plating extends product life, minimizing waste
- Weatherproof sealing reduces risk of cable damage and environmental contamination
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The Cabac SWA Gland M50 Cable OD 43.0 - 53.1mm is available for immediate purchase, ideal for secure and weatherproof armoured cable connections in industrial and commercial electrical installations.
