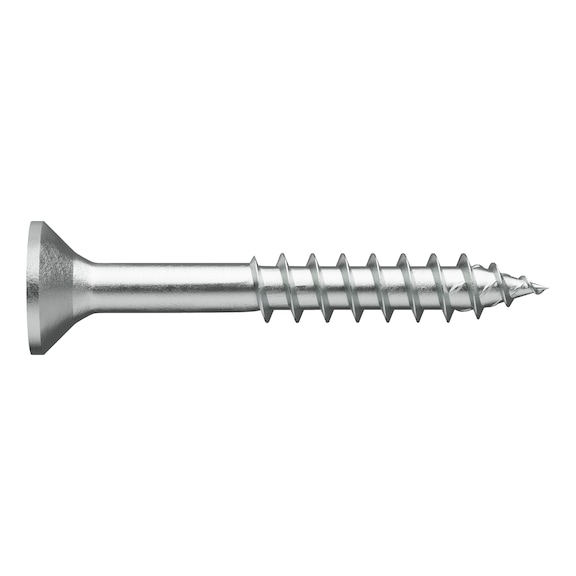

Swimming Pool Screw | HCR Stainless Steel | Countersunk Head | RW20 Drive | @Pack of 200 | by Wurth
The Swimming Pool Screw is crafted from high-quality HCR stainless steel, ensuring exceptional corrosion resistance, making it perfect for outdoor and wet environments. With a countersunk head and RW20 drive, this screw provides optimal power transmission and is ideal for swimming pool areas, boardwalks, and timber constructions. Designed for professional installation, it guarantees durability and reliability in harsh conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Swimming Pool Screw | HCR Stainless Steel | Countersunk Head | RW20 Drive | @Pack of 200 | by Wurth
Brand: Wurth
SKU: 187904040
Alternatively Known As: Stainless steel swimming pool screw, corrosion resistant wood screw, HCR 14529 screw, countersunk head wood screw, RW20 drive screw
Technical Specifications
- Nominal diameter: 4 mm
- Length: 40 mm
- Head type: Countersunk head
- Head diameter: 8 mm
- Head height: 2.5 mm
- Internal drive: RW20
- Thread type: Wood screw thread
- Thread design: Partial thread
- Thread form: Single start thread
- Thread length: 24 mm
- Core diameter: 2.5 mm
- Tip shape: Tip with hilltop milling cutter
- Tip angle: 28 degrees
- Material: High corrosion-resistant steel 1.4529 (X1NiCrMoCuN25-20-7)
- Surface finish: Plain
- Min/max screw-in angle: 0-90 degrees
- Product weight per item: 2.353 g
- Suitable materials: Wood, derived timber products, softwood, plywood, hardwood, LVL
- Suitable machines: Würth BS 12-A Power, Würth BS 14-A Combi
- Approval: ETA-11/0190
- RoHS compliant: Yes
- Dimensions (H x L x W): 2.5mm x 40mm x 8mm
- Weight: 0.0024 kg
Key Features
- Made of high-quality austenitic HCR stainless steel 1.4529
- Partial thread wood screw with countersunk head
- RW20 internal drive for ideal power transmission and fewer bit changes
- High corrosion resistance class V, suitable for chlorine-laden and SO2 exposure
- Reinforced asymmetrical thread flank geometry for higher breaking torque
- Smooth thread start reduces screw-in force and splitting effect
- Non-magnetic and non-rusting stainless steel
- Perfect fit of 90° head in metal countersinks
- Pulls together without head milling due to lack of milling elements below the head
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure correct fastening and compliance with structural requirements.
Applications
- Swimming pool areas
- Outdoor and façade applications
- Wet areas and timber construction
- Ocean climate environments
- Play equipment
- Boardwalks, terraces, and fences
Standards & Compliance
- Complies with AS/NZS 4785 – Timber fasteners for structural purposes
Environmental Benefits
- Long-lasting corrosion resistance reduces the need for frequent replacements
- Non-rusting material minimizes environmental contamination
- Suitable for use in harsh environments, reducing material waste
Warranty Information
Wurth provides warranty coverage against manufacturing defects as per company policy.
Available Now
The Wurth ASSY 4 HCR 14529 CS stainless steel swimming pool screw is available for immediate purchase, ideal for outdoor, wet, and corrosive environments.
