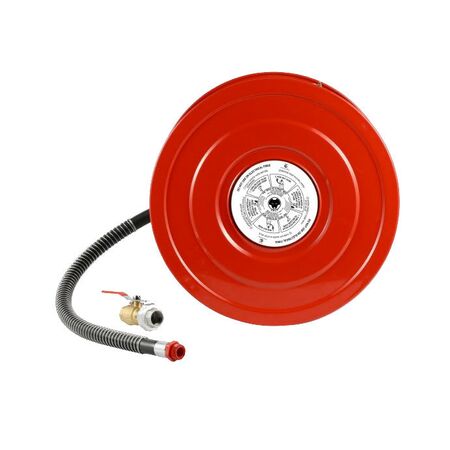

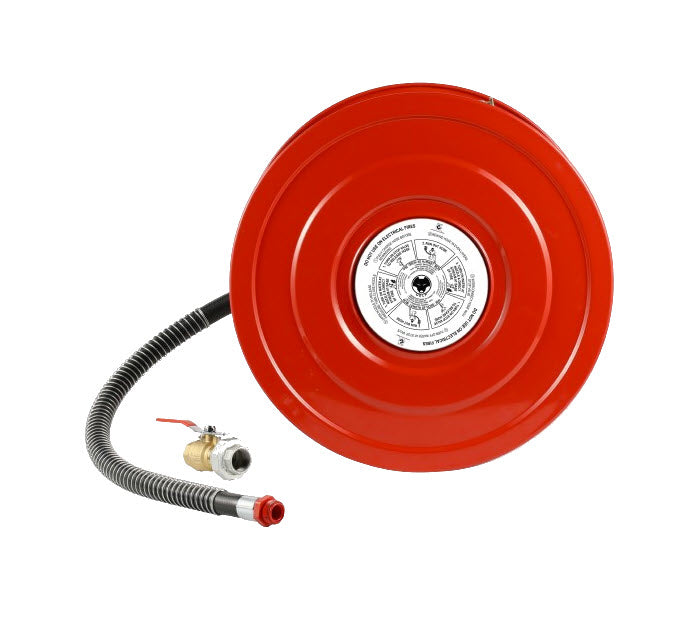

Swing Arm Fire Hose Reel | 30m Length | 25mm Diameter | Durable Metal by Firebox

BRAND: Firebox
SKU: HR3025SA-WF
$476.10 List price: $576.30
+
Swing arm fire hose reel with a 30m length and 25mm diameter—ideal for effective fire fighting in commercial and residential settings. Built for durability with a metal red powder-coated drum and brass nozzle, ensuring reliable performance under pressure.

Product Name/Title: Swing Arm Fire Hose Reel | 30m Length | 25mm Diameter | Durable Metal by Firebox

Brand: Firebox

SKU: HR3025SA-WF

Alternatively Known As: Fire Hose Reel 30m, 25mm Fire Hose Reel, Swing Arm Hose Reel, Fire Safety Hose Reel

Technical Specifications
  • Hose Length: 30 metres
  • Hose Diameter: 25mm
  • Nozzle: 25mm Brass
  • Drum Material: Metal red powder coated
  • Waterway Construction: Galvanised steel
  • Inlet Pipe/Union Construction: Galvanised steel
  • Maximum Working Pressure: 1.4 MPa
  • Hydraulic Test Pressure: 1.8 MPa
  • Mounting Plate Construction: 1mm Steel
  • Mounting Plate Finish: Powder-Coated Red
  • Nozzle Construction: Brass
  • Gooseneck Construction: Galvanised steel
  • Dimensions (H x L x W): 600mm x 600mm x 550mm
  • Weight: 15 kg
Key Features
  • 30m length and 25mm diameter hose for effective fire fighting
  • Swing arm design for easy access and operation
  • Durable metal red powder coated drum
  • Galvanised steel waterway and inlet pipe for corrosion resistance
  • Brass nozzle construction for durability
  • Mounting plate made of 1mm steel with powder-coated red finish
  • Maximum working pressure of 1.4 MPa and hydraulic test pressure of 1.8 MPa
Professional Installation Requirements
  • Professional installation by a qualified fire safety technician is recommended to ensure compliance with safety standards and proper operation.
Applications
  • Fire safety in commercial buildings
  • Industrial fire protection
  • Residential fire safety installations
Standards & Compliance
  • Complies with AS/NZS 1221 – Fire Hose Reels
Environmental Benefits
  • Durable materials reduce the need for frequent replacements, minimizing waste
  • Powder-coated finishes increase product lifespan, reducing environmental impact
Warranty Information

12 months warranty against manufacturing defects.

Available Now

The Firebox 30m x 25mm Swing Arm Fire Hose Reel is available now for immediate purchase. Ideal for commercial, industrial, and residential fire safety applications.
