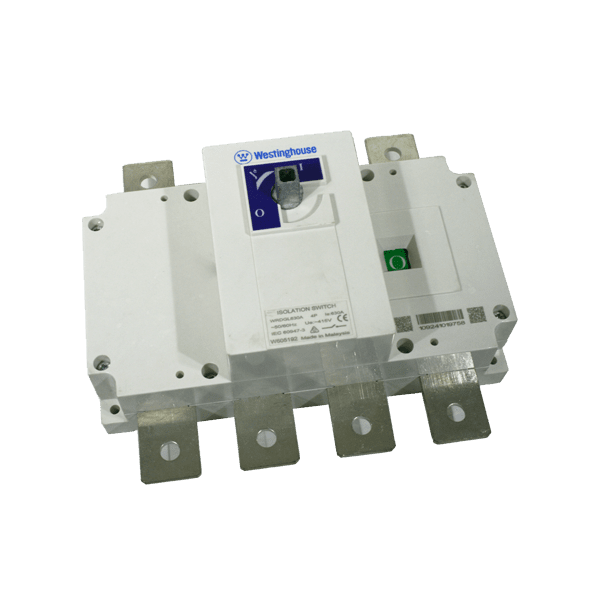

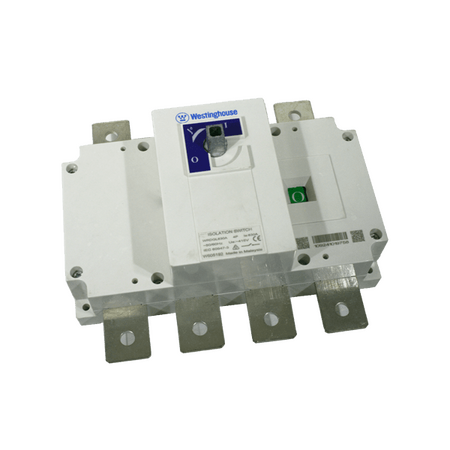

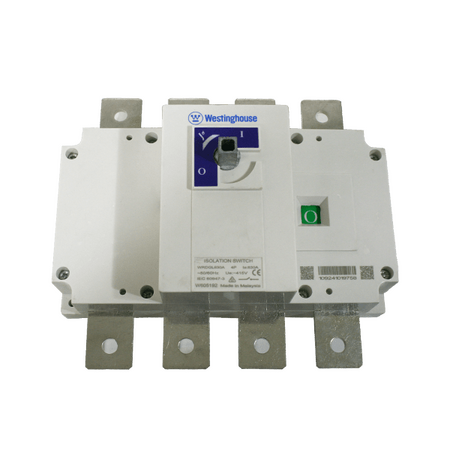

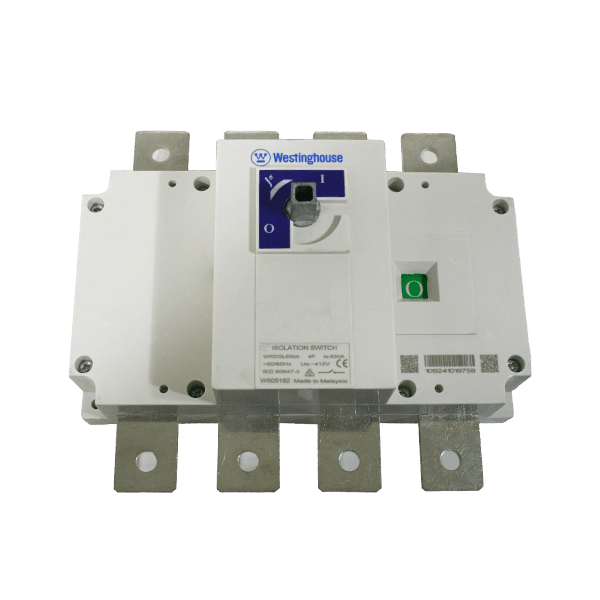

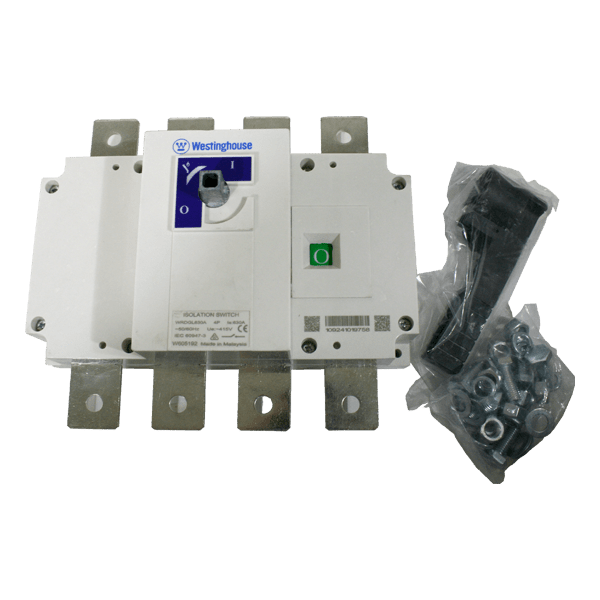

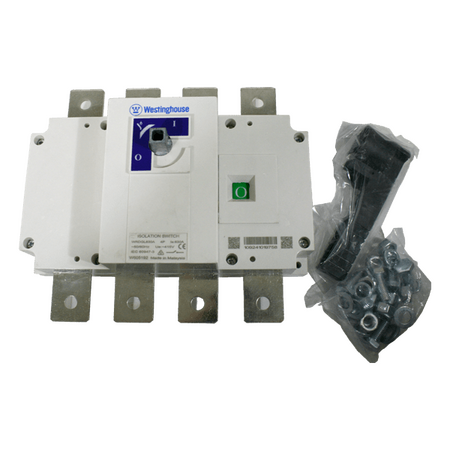

Switch Disconnector 630A 4P Eltech

BRAND: Eltech
SKU: WRDGL630A4
$1,635.40 List price: $2,180.50
+ −
30 Days Return Electricians Unlock Trade Access
Eltech switch disconnector features 630A rating, 4-pole switching and load-break isolation. Ideal for switchboard supply isolation.

Alternatively Known As: Eltech WRDGL 630 A 4P Load Isolation Switch

Technical Specifications
  • Rated Current: 630 A
  • Poles: 4‑pole
  • Rated Voltage: 415 VAC
  • Rated Withstand Current (0.1 s): 50 kA
  • Rated Withstand Current (1 s): 25 kA
  • Standard Compliance: AS/NZS IEC 60947.3
  • Rated Insulation Voltage Ui: 1000 V (400–3150 A range)
  • Rated Impulse Withstand Voltage Uimp: 12 kV (400–3150 A range)
  • Electrical Endurance (AC21, cos φ = 0.95): 750 cycles
  • Electrical Endurance (AC23, cos φ = 0.35): 250 cycles
  • Dimensions (H x L x W): 240mm x 297mm x 180mm
  • Weight: 6.0 kg
Key Features
  • High short‑circuit withstand capability for enhanced safety (50 kA at 0.1 s)
  • Consistent high performance across a wide current range (up to 3150 A)
  • Complies with AS/NZS IEC 60947.3 for low‑voltage switchgear
  • Robust construction with reliable isolation for maintenance or emergency
  • Available in 3‑pole and 4‑pole configurations
Professional Installation Requirements
  • Installation should be performed by a licensed electrician in accordance with AS/NZS 3000 wiring rules.
Applications
  • Switchboard main isolator upstream of switchboard sections
  • Load‑break isolation for maintenance or emergency power-off
  • Isolation upstream of large electrical devices or feeders
Standards & Compliance
  • AS/NZS IEC 60947.3: Low‑voltage switchgear – switches, disconnectors, switch‑disconnectors
Environmental Benefits
  • Durable design reduces replacement frequency, minimising waste
Warranty Information

Eltech offers a 7‑year warranty on applicable products when purchased and installed by a licensed electrician, subject to their terms. ([eltech.com.au](https://eltech.com.au/terms-conditions/?utm_source=openai))

Available Now

Available through authorised Australian electrical distributors.
