Switched Mode Power Supply 480W | 100-240V AC to 24-28V DC | Conformal Coated by NHP
Switched mode power supply with 480W output and adjustable 24-28V DC—ideal for industrial automation and control panels. Built for high efficiency and reliability, with conformal coating for enhanced protection.
Sign in
Please login to continue to your account.

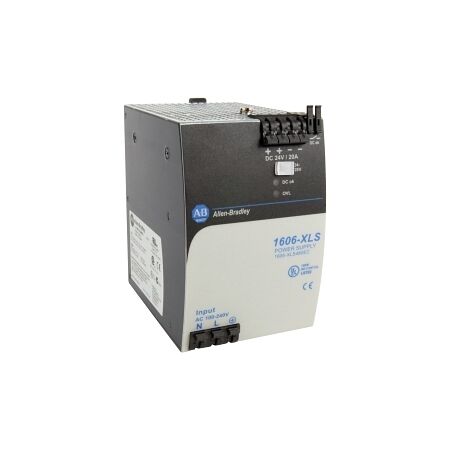

Product Name/Title: Allen-Bradley 1606 Power Supply HP 1Phase 100 to 240V AC to 24 to 28V DC 480W 20A Confomal Coated
Brand: NHP
SKU: 1606XLS480EC
Alternatively Known As: Switched Mode Power Supply, DC Power Supply, 1606 Power Supply
- Voltage Type: AC/DC
- Rated Supply Voltage: 100-240V AC, 110-150V DC
- Frequency: 50-60 Hz
- Nominal Current In: 4.6 A
- Max Starting Current: 9 A
- Max Output Current: 20 A
- Power Output: 480 W
- Power Consumption: 31.4 VA
- Type of Electric Connection: Spring clamp connection
- Degree of Protection: IP20
- Operating Temperature: -25 to 70 °C
- Dimensions (H x L x W): 124mm x 127mm x 82mm
- Weight: 1.2 kg
- Switched Mode Power Supply with high efficiency of 93.9%.
- Adjustable secondary output voltage between 24-28V.
- LED indication for operational status.
- Suitable for rail and wall mounting.
- Professional installation by a qualified electrician is recommended for optimal safety.
- Industrial: Automation systems, control panels
- Commercial: Power supply for various electronic devices
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
- High efficiency reduces energy consumption and operational costs.
Standard warranty as per manufacturer’s policy.
The Allen-Bradley 1606 Power Supply is available now for immediate purchase, ideal for industrial and commercial applications.
