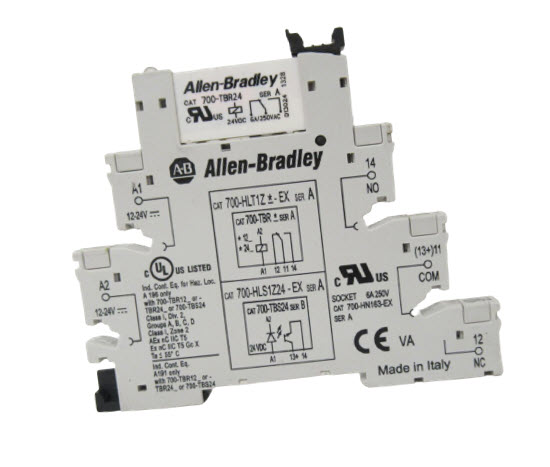

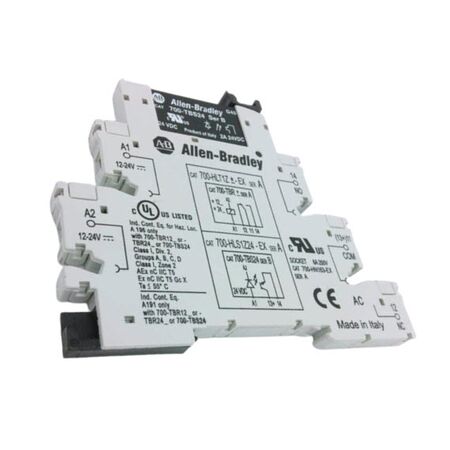

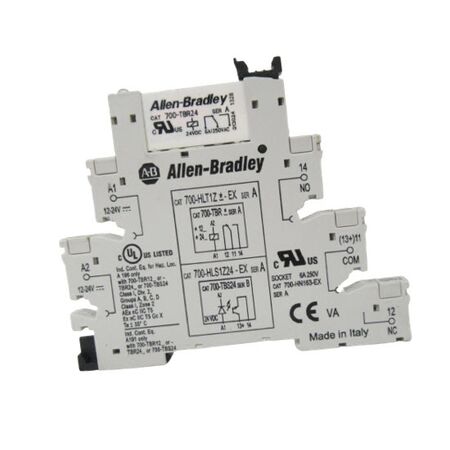

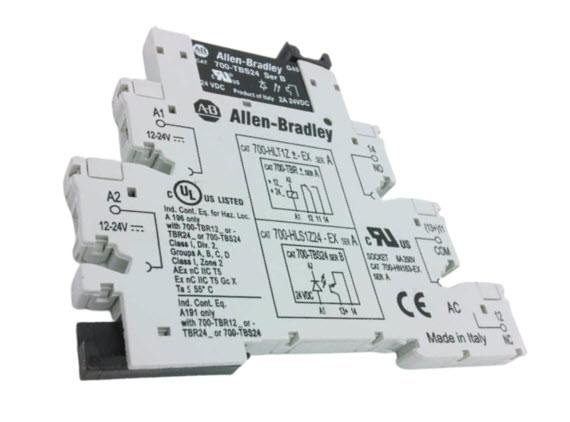

Terminal Block Relay with Socket | 24V DC Input | 2A Solid-State Relay | Hazardous Location Certified | by Allen-Bradley
The Terminal Block Relay with Socket is designed for reliable performance in hazardous locations, featuring a 24V DC input and a 2A solid-state relay. Ideal for industrial control systems and automation equipment, it includes surge protection and a standard LED indicator for enhanced safety and visibility.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Relay Type: Terminal block relay with socket
- Base Type: Screw terminal
- Indicator: Standard LED
- Coil Protection: Surge protection included
- Relay Module: Replaceable
- Current Rating: 2 A solid-state relay
- Input Voltage: 24 V DC
- Output Type: DC output
- Certification: Hazardous location certified
- Dimensions (H x L x W): 80mm x 60mm x 30mm
- Weight: 0.3 kg
Key Features
- Terminal block relay with socket
- Screw terminal base for secure connections
- Built-in retainer clip for stability
- Standard LED indicator
- Coil surge protection
- Replaceable relay module
- 2 A solid-state relay
- 24 V DC input with DC output
- Certified for hazardous locations
Professional Installation Requirements
- Installation by a qualified electrician is required to ensure compliance with hazardous location safety standards.
Applications
- Industrial control systems
- Automation equipment
- Hazardous location electrical installations
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Solid-state relay design reduces energy loss and heat generation
- Durable construction extends product life, reducing waste
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 700HLS1Z24EX Terminal Block Relay is available for immediate purchase, ideal for industrial and hazardous location applications.
