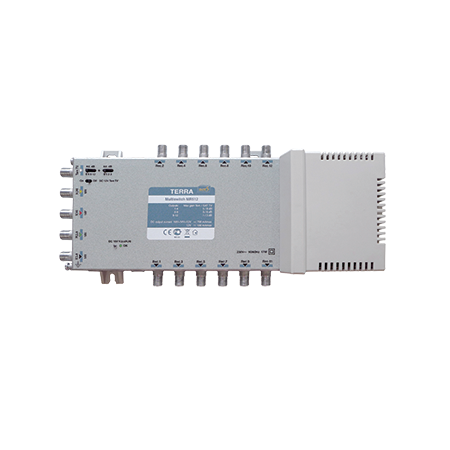

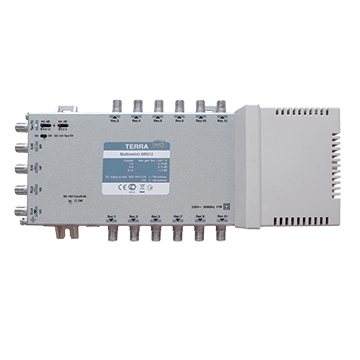

TERRA 5 Wire Multiswitch 5 In 12 Out | Mains Powered | Wideband by Matchmaster

SKU: 21MM-MR512
$513.60 List price: $621.70
+
Terra 5 wire multiswitch with 5 inputs and 12 outputs—ideal for homes and commercial buildings. Built for extensive signal distribution, with energy-efficient mains power and robust design.

Product Name/Title: TERRA 5 Wire Multiswitch 5 In 12 Out Mains Powered

Brand: Matchmaster

SKU: 21MM-MR512

Alternatively Known As: Satellite Multiswitch, Signal Multiswitch, TV Signal Multiswitch

Technical Specifications
  • Input Channels: 5
  • Output Channels: 12
  • Power Supply: Mains powered
  • Frequency Range: 5-1000 MHz
  • Insertion Loss: < 6 dB
  • Isolation: > 30 dB
  • Case Material: Metal
  • Dimensions (H x L x W): 50mm x 200mm x 300mm
  • Weight: 2.0 kg
Key Features
  • 5 input channels for connecting multiple sources.
  • 12 output channels for distribution to various devices.
  • Mains powered for consistent performance.
Professional Installation Requirements
  • Professional installation is recommended for optimal signal distribution and device compatibility.
Applications
  • Residential: Homes with multiple TVs or devices requiring signal distribution
  • Commercial: Hotels, office buildings with multiple viewing areas
Standards & Compliance
  • Complies with AS/NZS standards for electronic devices.
Environmental Benefits
  • Energy-efficient design minimizes power consumption.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The TERRA 5 Wire Multiswitch 5 In 12 Out Mains Powered is available now for immediate purchase. Ideal for enhancing signal distribution in both residential and commercial spaces.
