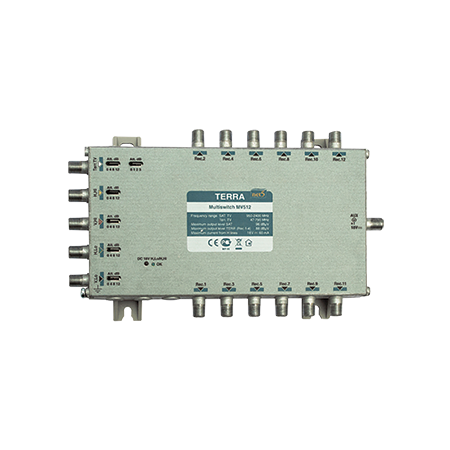

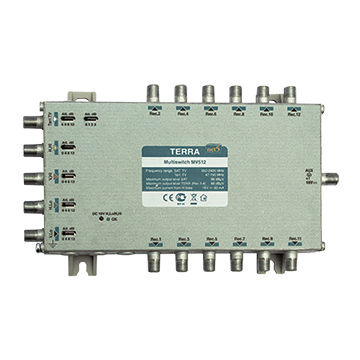

TERRA 5 Wire Multiswitch 5 In 12 Out | Remote Powered | Compact Design by Matchmaster
TERRA 5 wire multiswitch with 5 inputs and 12 outputs—ideal for homes and commercial spaces. Built for flexible installation, with remote powering and energy-efficient design.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: TERRA 5 Wire Multiswitch 5 In 12 Out Remote Powered
Brand: Matchmaster
SKU: 21MM-MV512
Alternatively Known As: 5 Wire Multiswitch, Pay TV Multiswitch, Satellite Distribution System
Technical Specifications
- Frequency Range: SAT IF 950-2400MHz, Terr. TV 47-862MHz
- SAT IF Gain: Outputs 1-4: 5 ÷ 14dB, Outputs 5-8: 4 ÷ 12dB, Outputs 9-12: 3 ÷ 10dB
- Terr. TV Gain: Outputs 1-4: -1 ÷ 5dB, Outputs 5-8: -2 ÷ 3dB, Outputs 9-12: -3 ÷ 1dB
- Gain Adjustment SAT IF: 12dB by 4dB Step
- Gain Adjustment Terr. TV: 15dB by 1dB Steps
- Output Level for SAT IF: 105dBµV, for Terr. TV: Outputs 1-4: 88dBµV
- Current Consumption: <65mA from Receiver, +18 V 60mA from External Power Supply
- Operating Temperature Range: -20° ÷ +50°C
- Dimensions (H x L x W): 30mm x 135mm x 227mm
- Weight: 0.7 kg
Key Features
- Foxtel approved (F30824)
- Length of the subscriber line up to 80 meters
- Four positions discrete gain regulator for each satellite IF line
- Separate 16 positions discrete gain regulator for terrestrial TV
- Active terrestrial TV path powering from central power supply
Professional Installation Requirements
- Professional installation is recommended for optimal performance and compliance with specifications.
Applications
- Large installations of satellite IF distribution systems
- Residential and commercial projects requiring high-quality signal distribution
Standards & Compliance
- F
- o
- x
- t
- e
- l
- A
- p
- p
- r
- o
- v
- a
- l
- N
- u
- m
- b
- e
- r
- :
- F
- 3
- 0
- 2
- 9
- 0
Environmental Benefits
- Efficient signal distribution reduces energy consumption and waste.
Warranty Information
Standard warranty applies, please check with the manufacturer for details.
Available Now
The TERRA 5 Wire Multiswitch 5 In 12 Out Remote Powered is available now for immediate purchase. Ideal for large installations requiring reliable signal distribution.
